Power Distribution Schematics

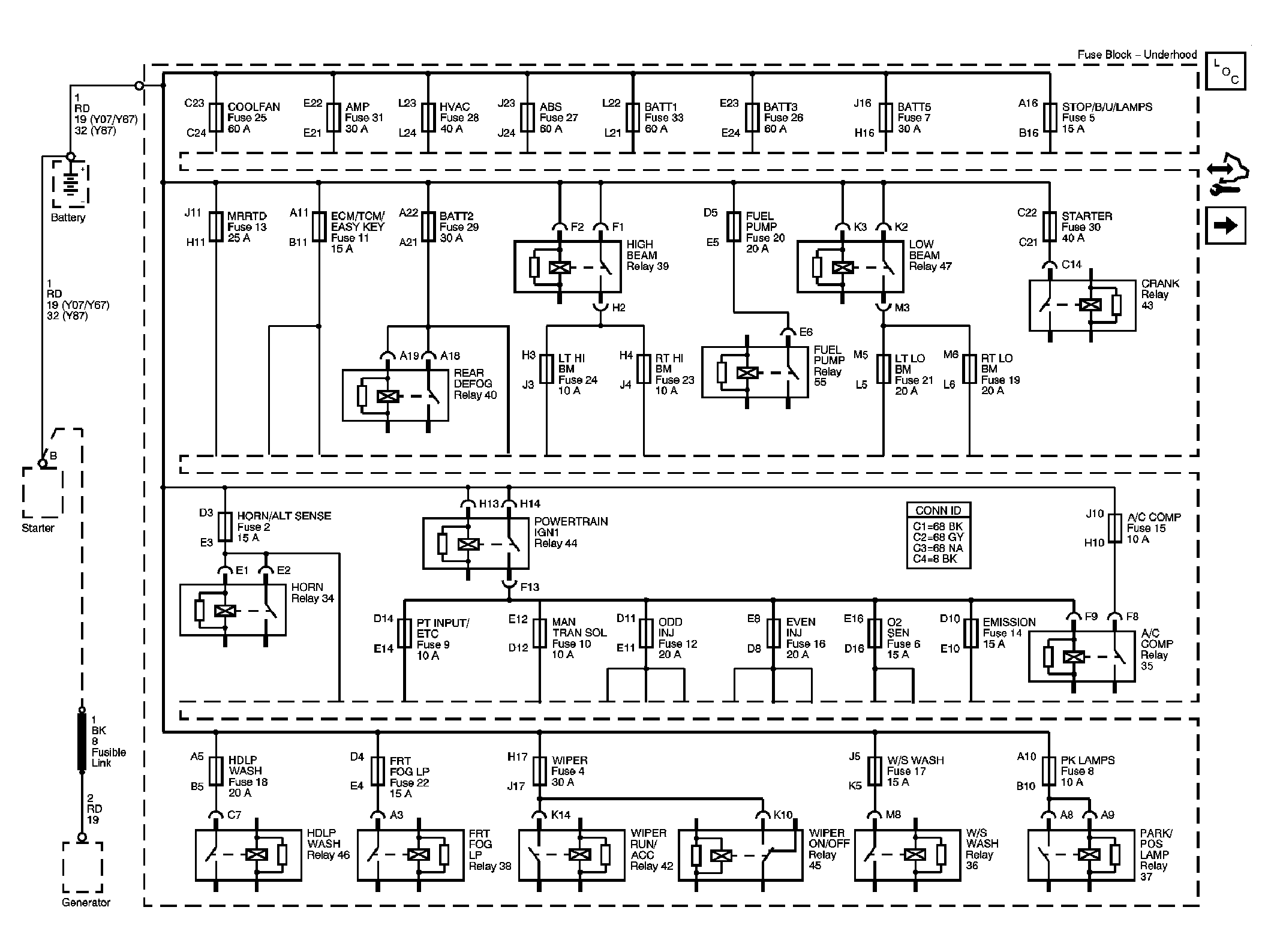

Fig 1: Fuse Block - Underhood Bussing Schematic

Courtesy of GENERAL MOTORS CORP.

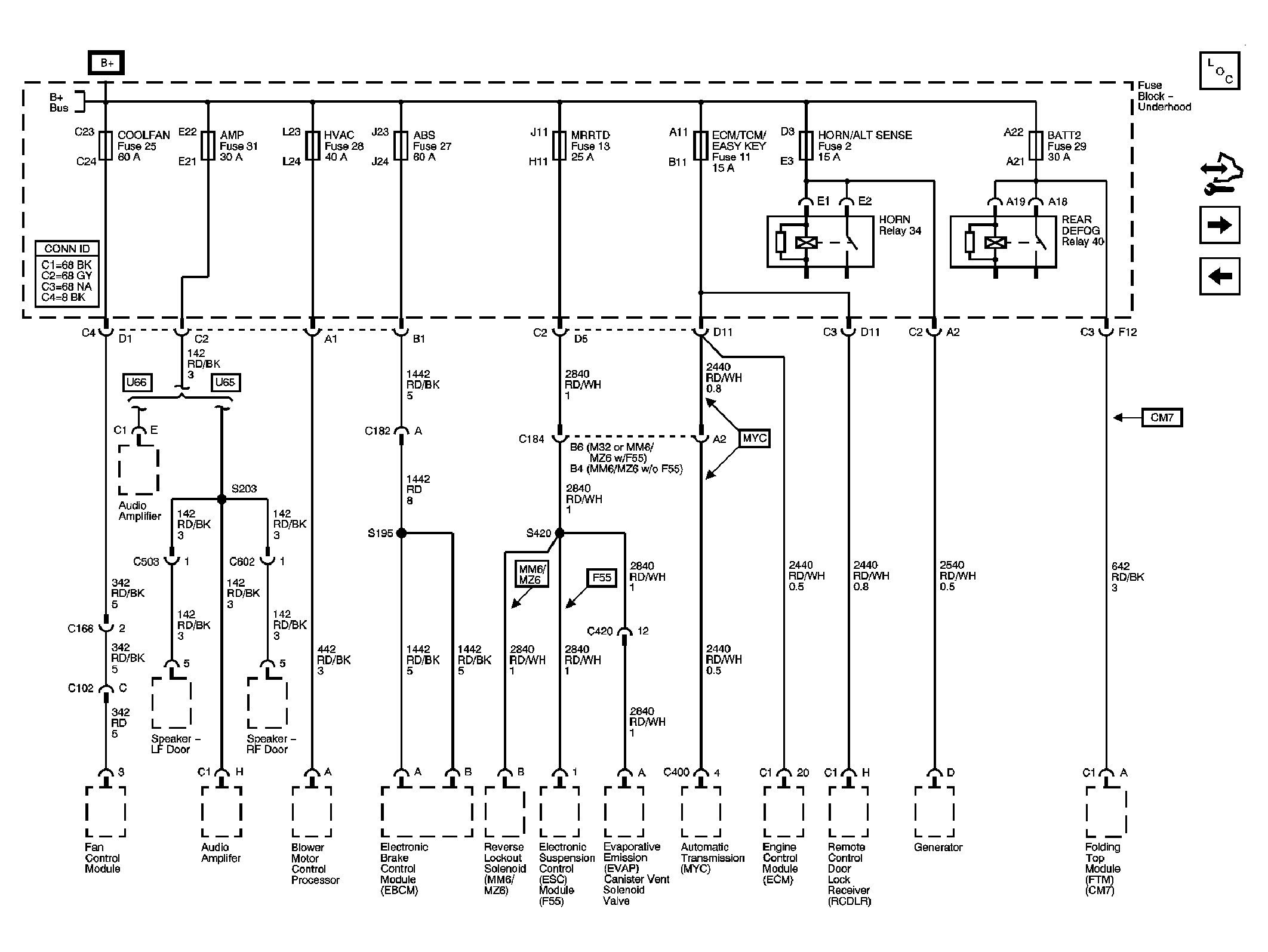

Fig 2: Fuse Block - Underhood-ABS, AMP, BATT2, COOL FAN, ECM/TCM EASY KEY, HORN/ALT SENSE, HVAC, and MRRTD Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

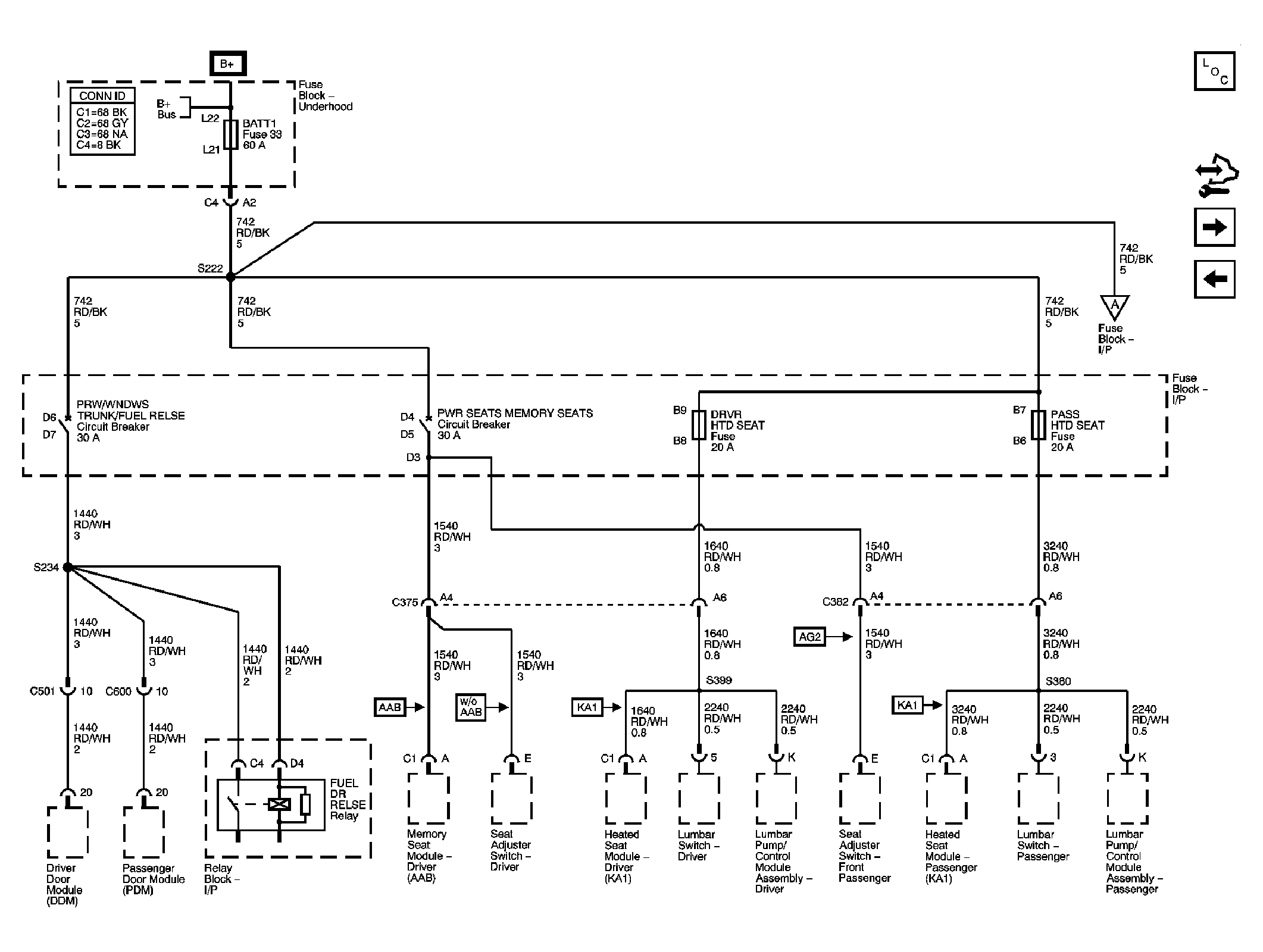

Fig 3: Fuse Block - Underhood, BATT1 Fuse, Fuse Block-I/P, DRVR HTD SEAT and PASS HTD SEAT Fuses, PWR SEATS MEMORY SEATS and PRW/WNDWS TRUNK/FUEL RELSE Circuit Breakers Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Fuse Block - I/P AUX PWR, CIG LTR, and TRUNK RELSE Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

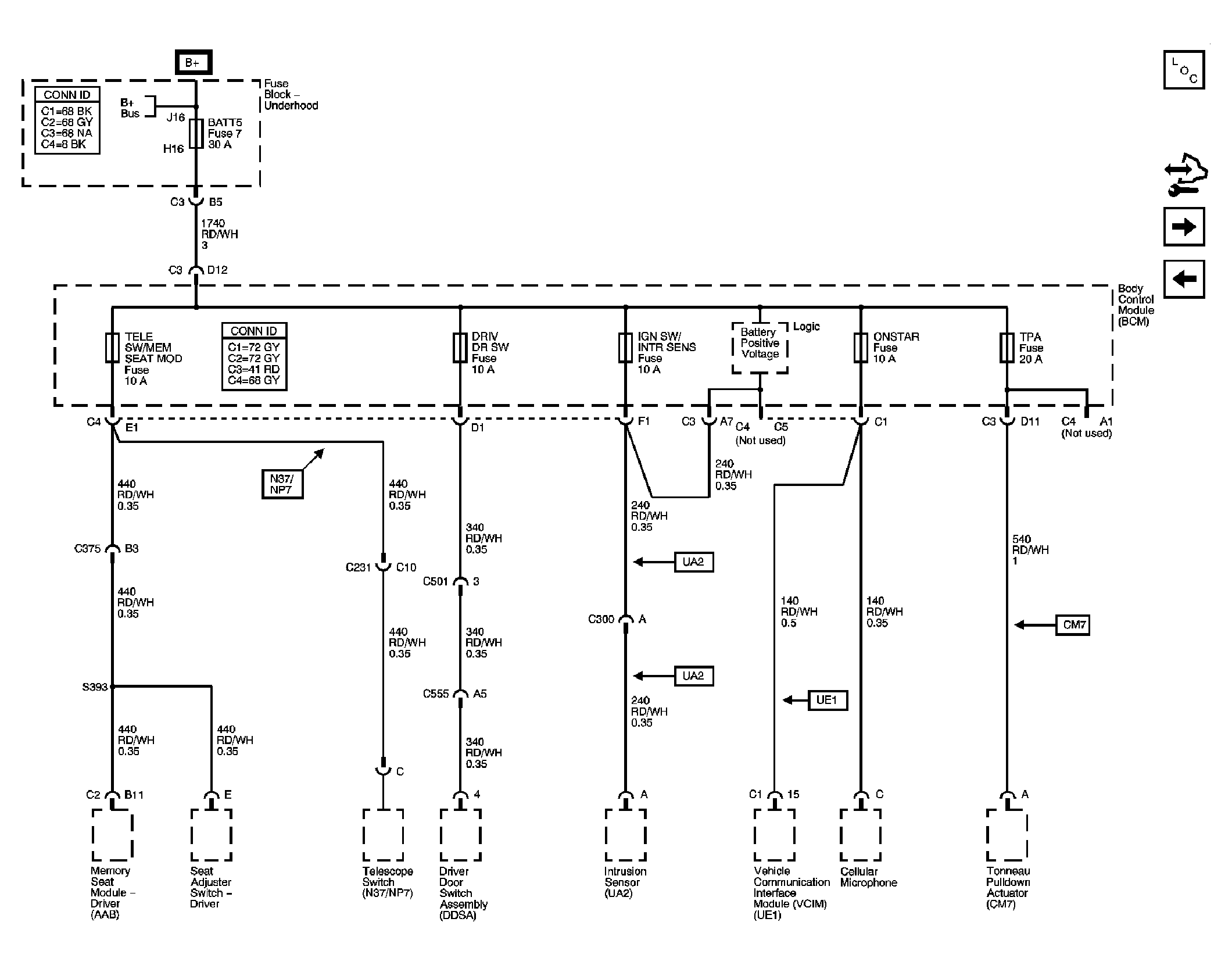

Fig 5: Fuse Block - Underhood BATT 5 Fuse, BCM Fuses: DRIV DR SW, IGN SW/ INTR SENS, ONSTAR, TELE SW/MEM SEAT MOD, and TPA Schematic

Courtesy of GENERAL MOTORS CORP.

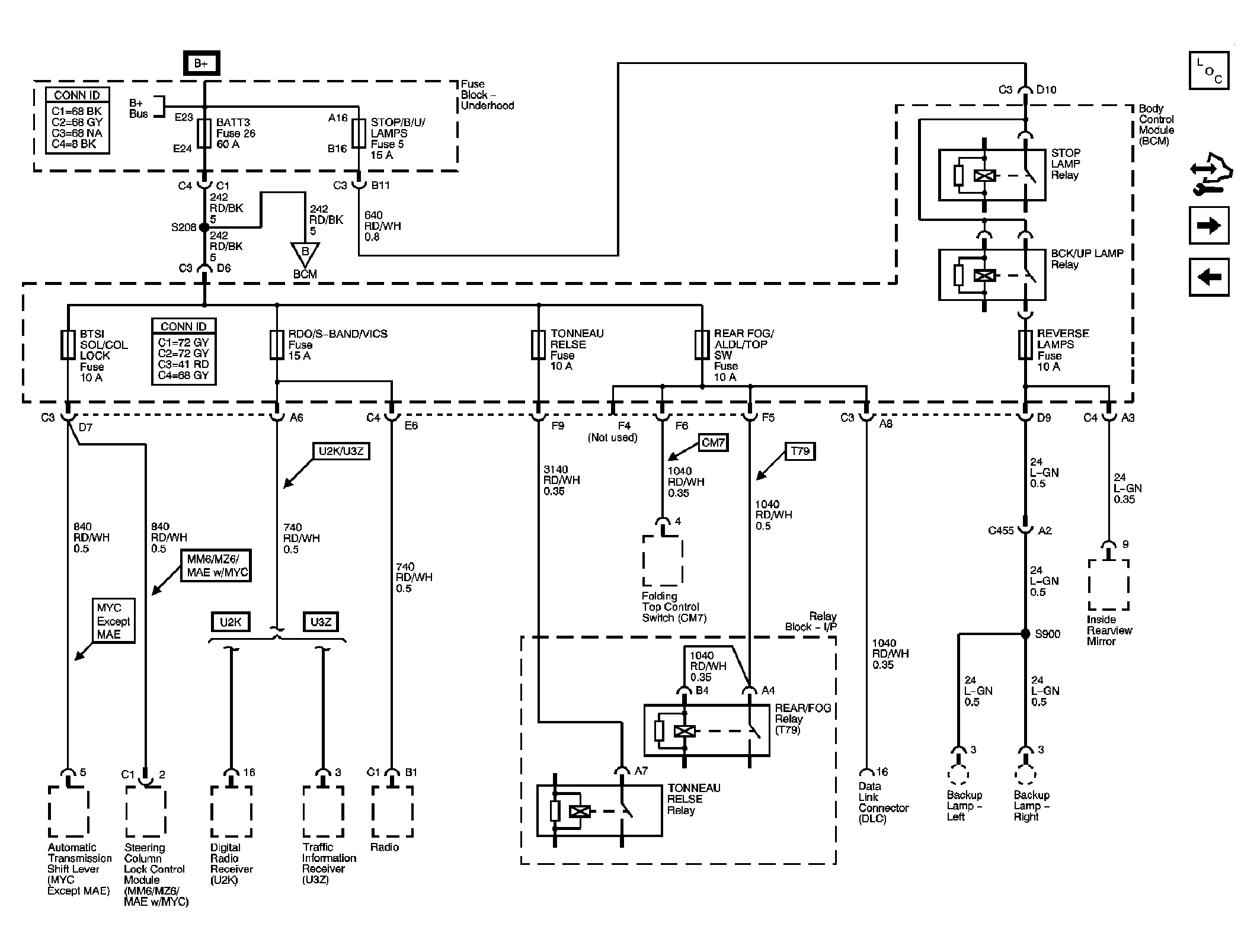

Fig 6: Fuse Block - Underhood BATT3, STOP/B/U/LAMPS Fuses, BCM Fuses: BTSI SOL/COL LOCK, RDO/S-BAND/VICS, REAR FOG/ALDL/TOP SW, REVERSE LAMPS, TONNEAU RELSE, BCK/UP LAMP , STOP LAMP Relays Schematic

Courtesy of GENERAL MOTORS CORP.

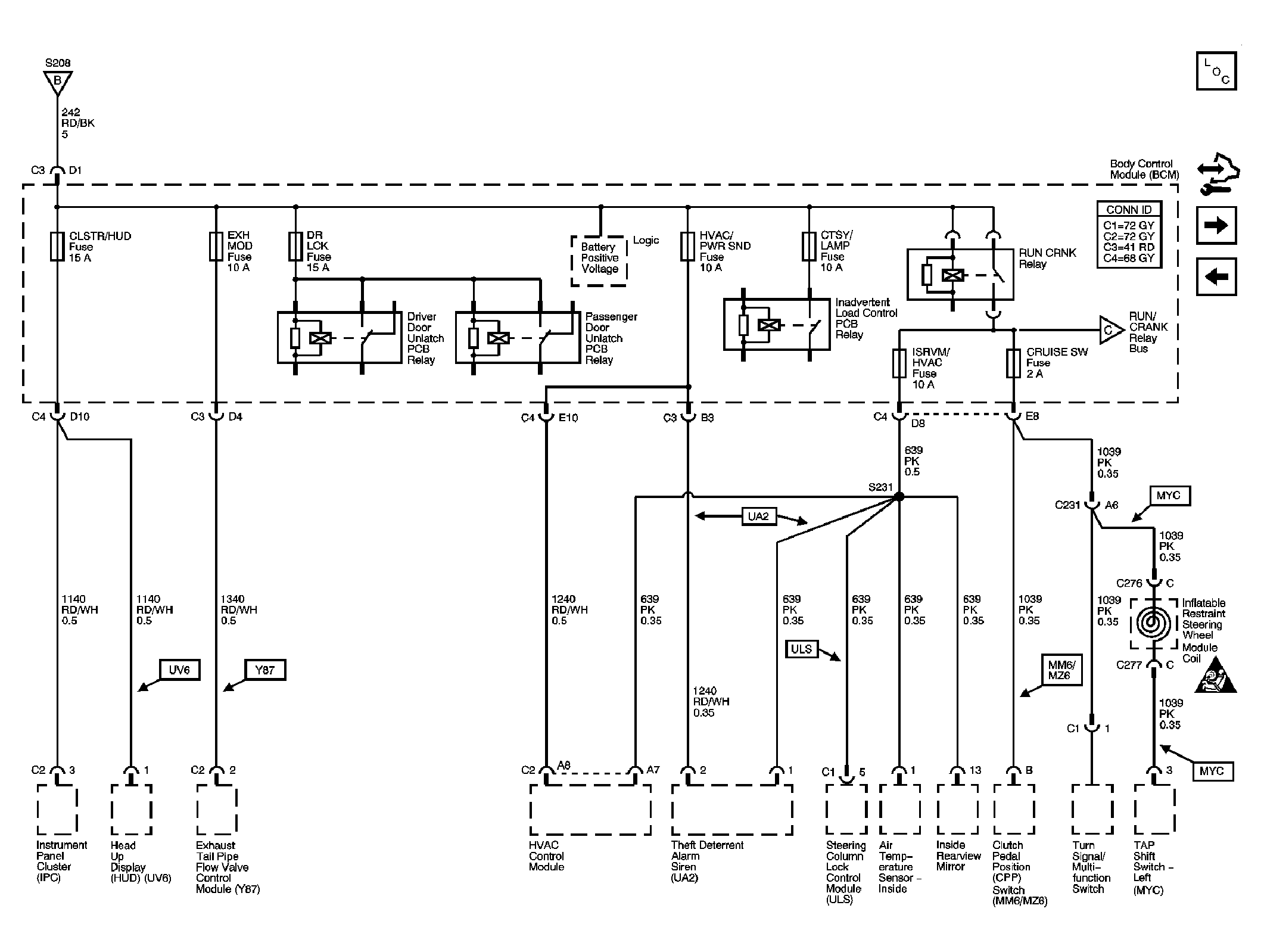

Fig 7: BCM Fuses: CLSTR/HUD, CRUISE SW, CTSY/LAMP, DR LCK, EXH MOD, HVAC/PWR SND, ISRVM/HVAC and RUN CRNK Relay Schematic

Courtesy of GENERAL MOTORS CORP.

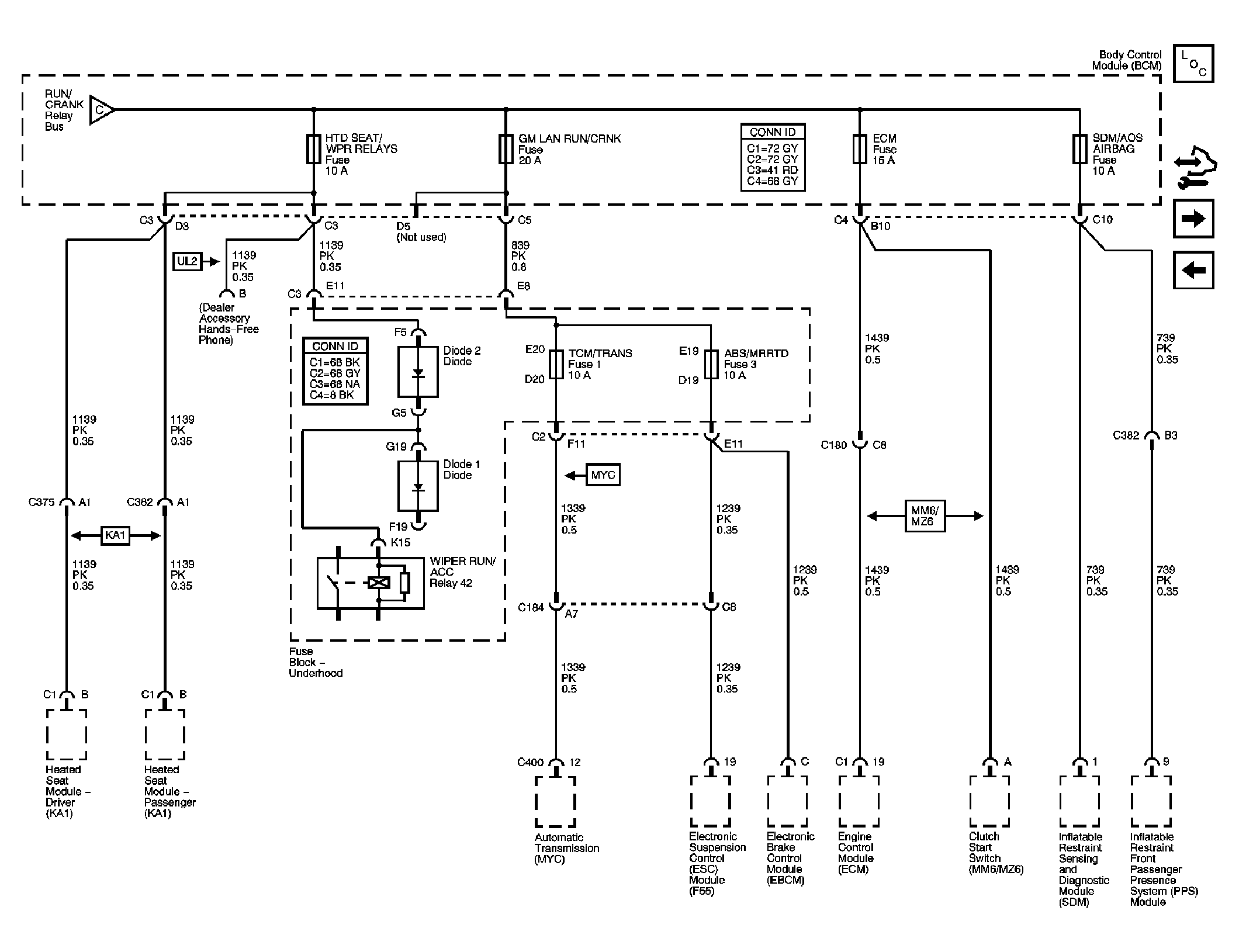

Fig 8: BCM Fuses: ECM, HTD SEAT/WPR RELAYS, GM LAN RUN/CRNK, SDM/AOS AIRBAG, Fuse Block - Underhood ABS/MRRTD, TCM/TRANS Fuses, WIPER RUN/ACC Relay Schematic

Courtesy of GENERAL MOTORS CORP.

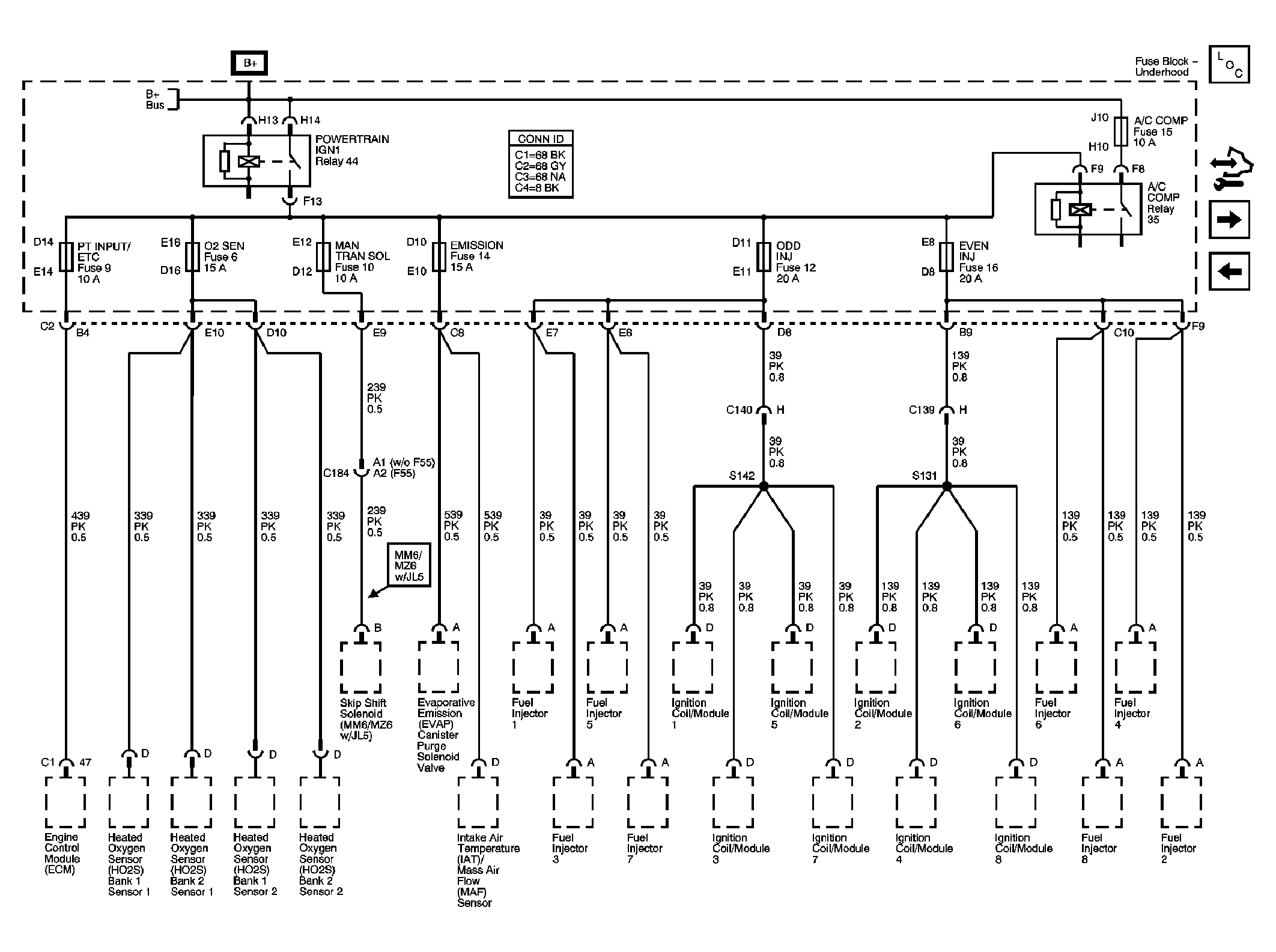

Fig 9: Fuse Block - Underhood A/C COMP, EMISSION, EVEN INJ, MAN TRAN SOL, 02 SEN, ODD INJ, and PT INPUT/ETC Fuses, A/C COMP and POWERTRAIN IGN1 Relays Schematic

Courtesy of GENERAL MOTORS CORP.

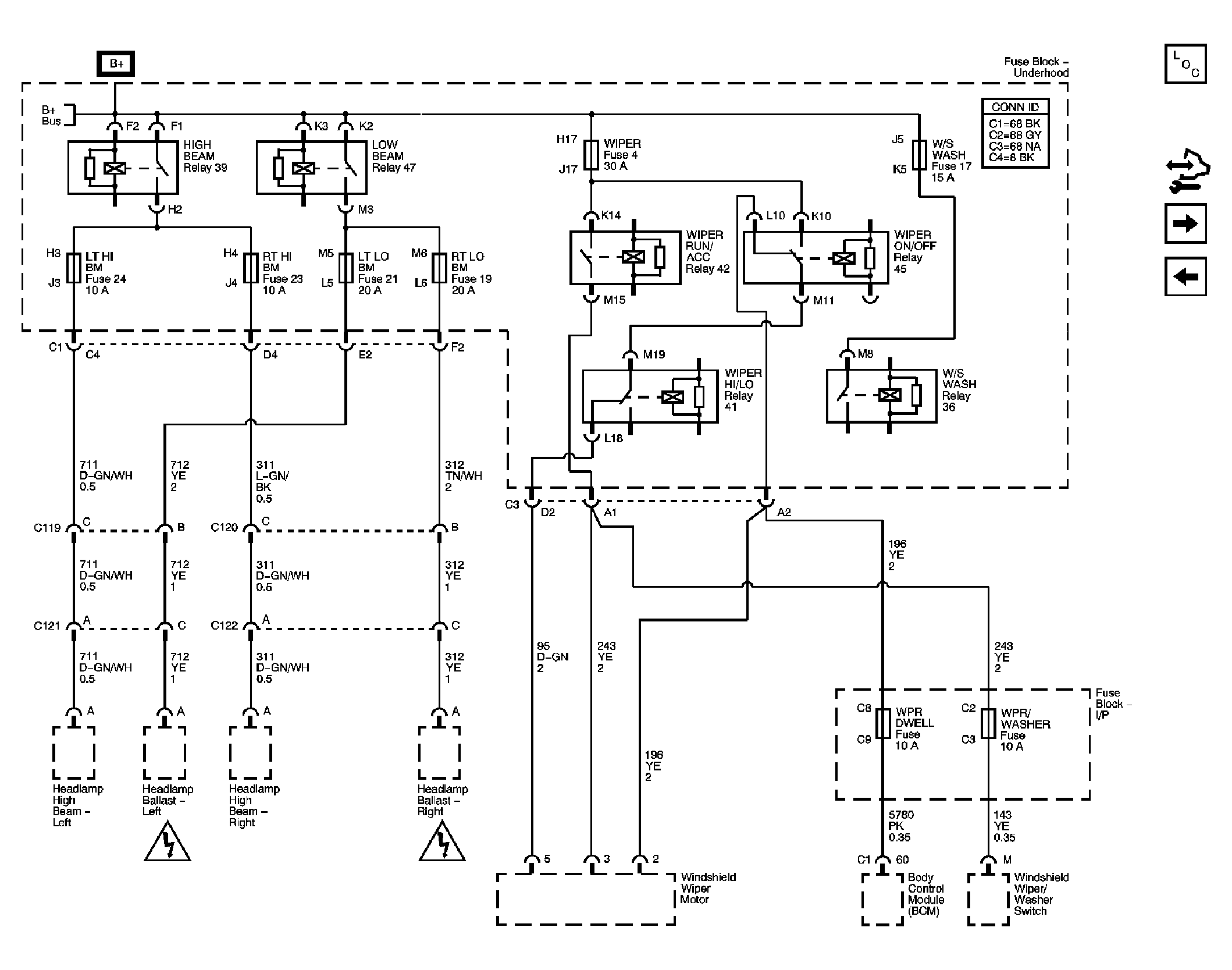

Fig 10: Fuse Block - Underhood LT HI BM, LT LO BM, RT HI BM, RT LO BM, WIPER, W/S WASH Fuses, HIGH BEAM, LOW BEAM, WIPER HI/LO, WIPER ON/OFF, WIPER RUN/ACC, W/S WASH Relays, Fuse Block - I/P WPR DWELL, WPR/WASHER Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

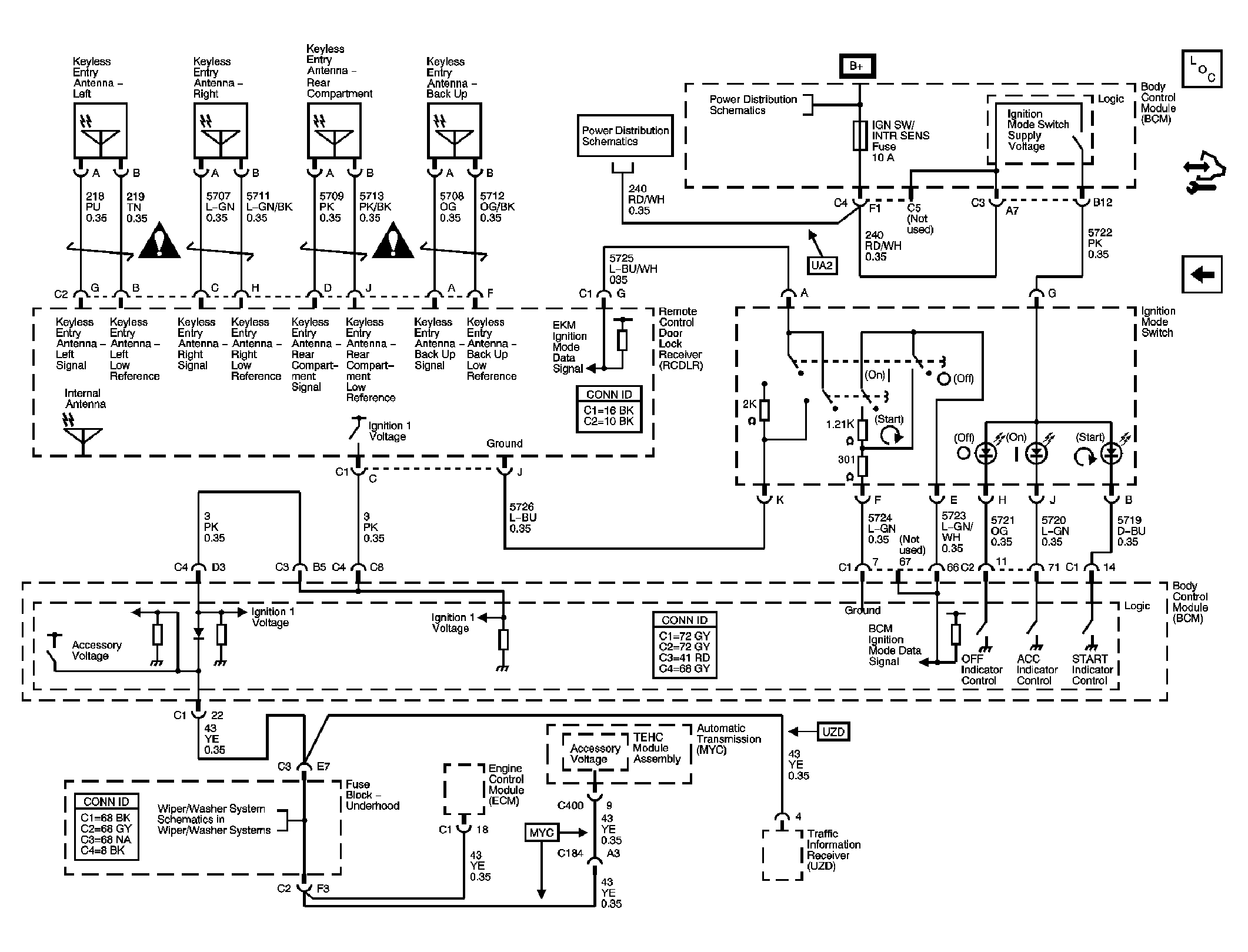

Fig 11: Ignition Modes Schematic

Courtesy of GENERAL MOTORS CORP.
