Immobilizer Schematics

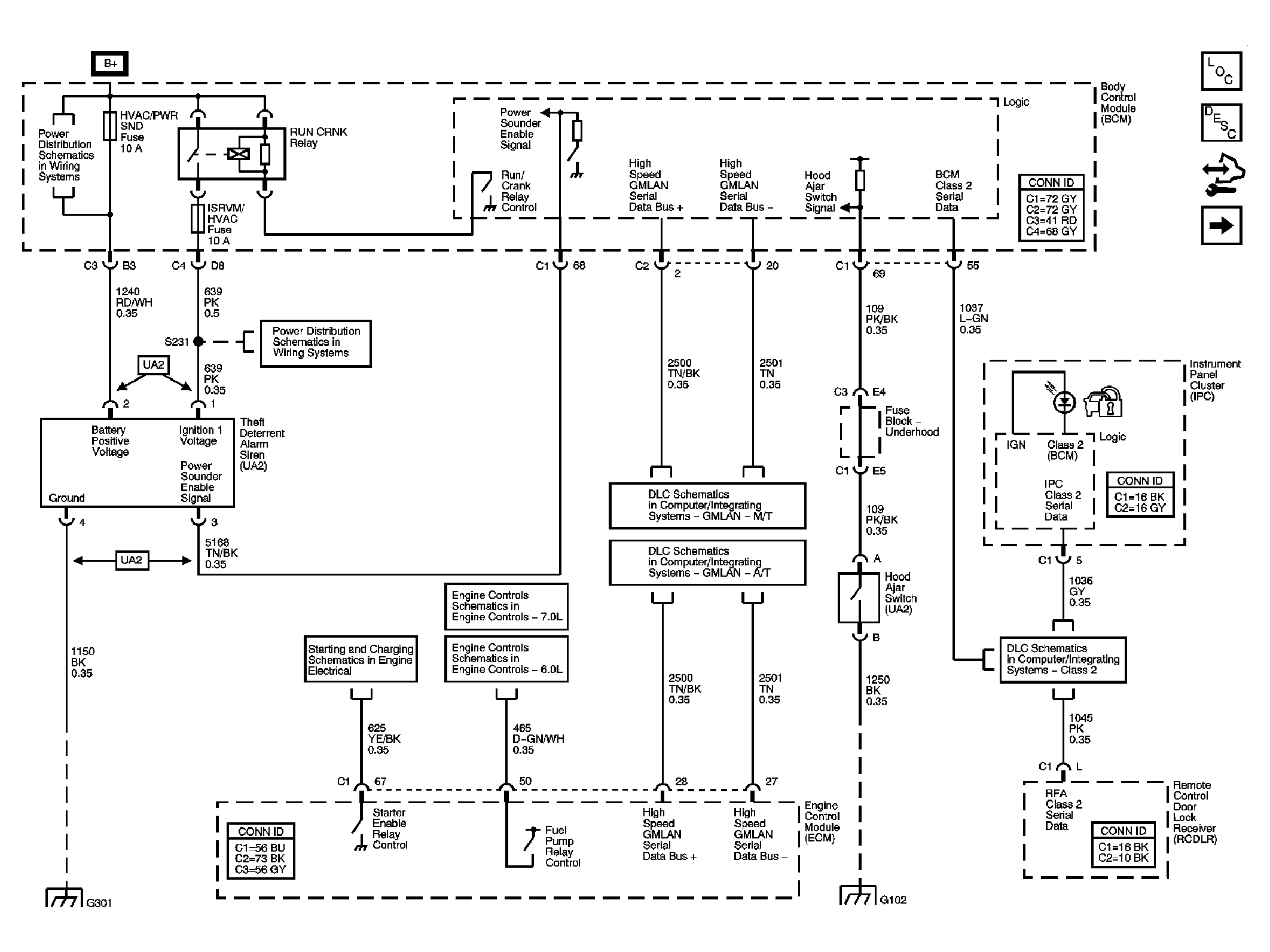

Fig 1: Vehicle Theft Deterrent Schematic

GM1704855

Courtesy of GENERAL MOTORS CORP.
