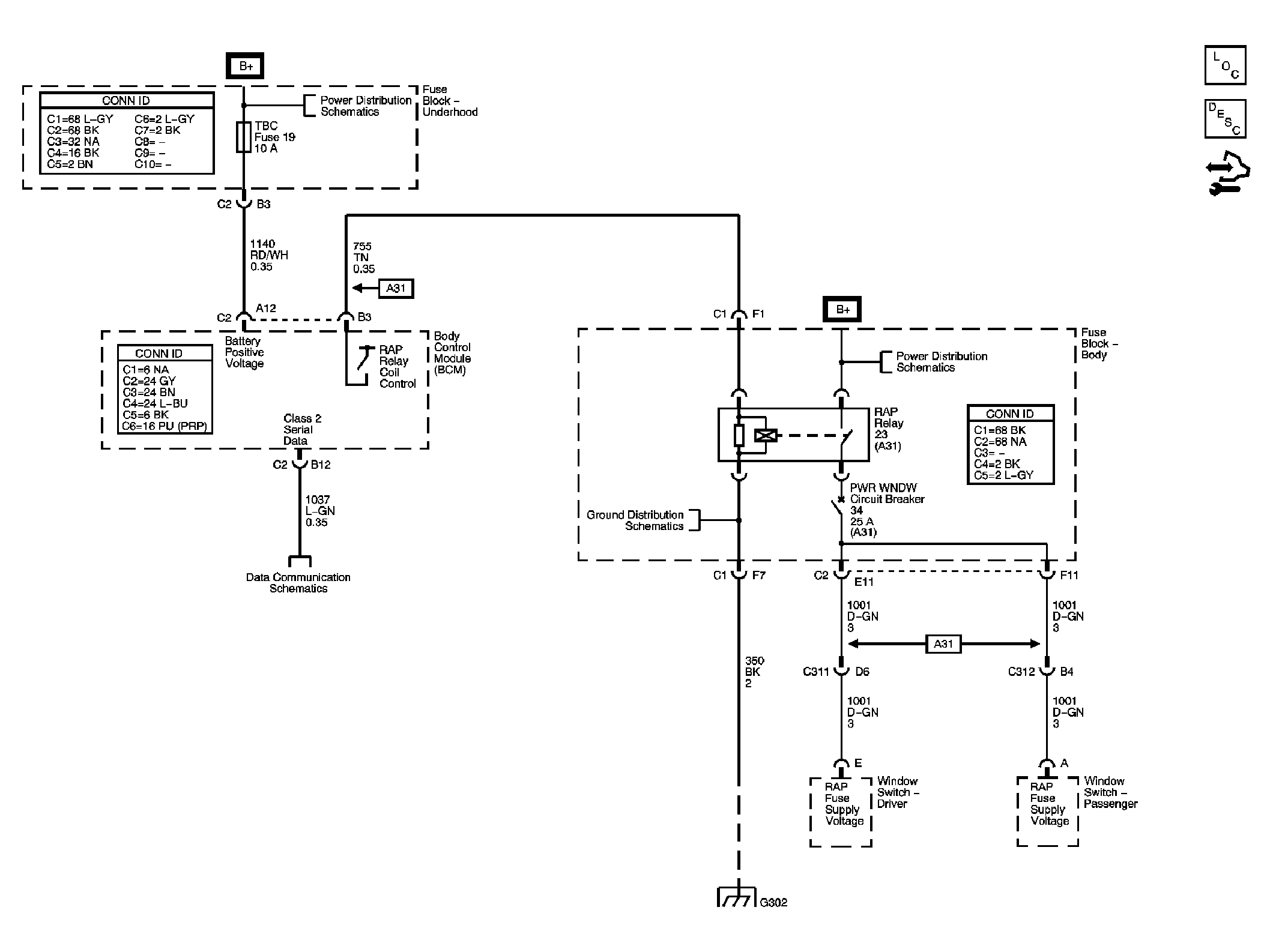

Home >> Chevrolet >> 2007 >> Chevy Express G3500, Van Passenger Extended >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Wiring Systems And Power Management - Introduction >> Schematic and Routing Diagrams >> Power Moding Schematics
