Radio/Navigation System Schematics
Radio/Navigation System Schematics

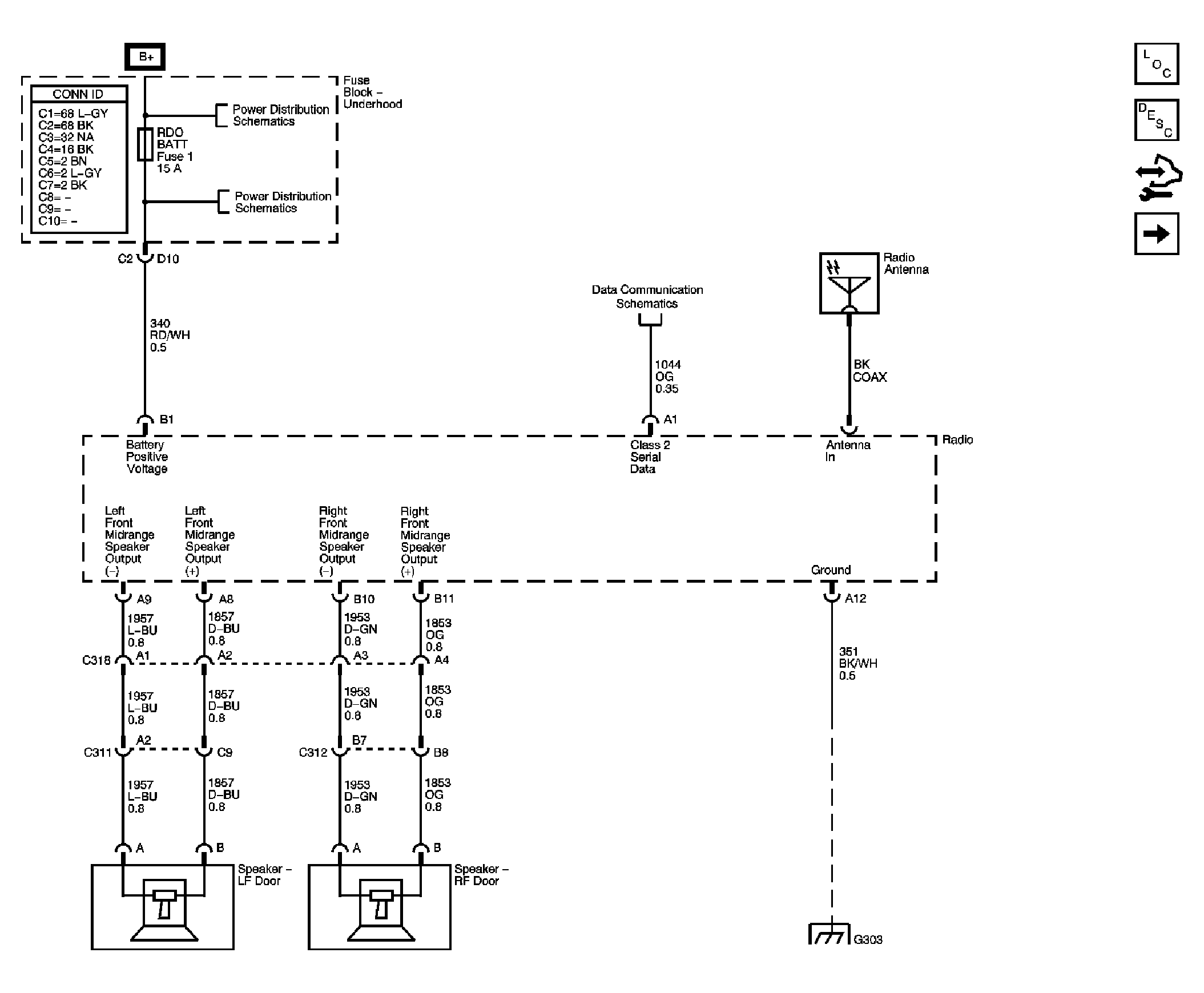

Fig 1: Power, Ground, Serial Data, Antenna, and Front Speaker Outputs
Courtesy of GENERAL MOTORS CORP.

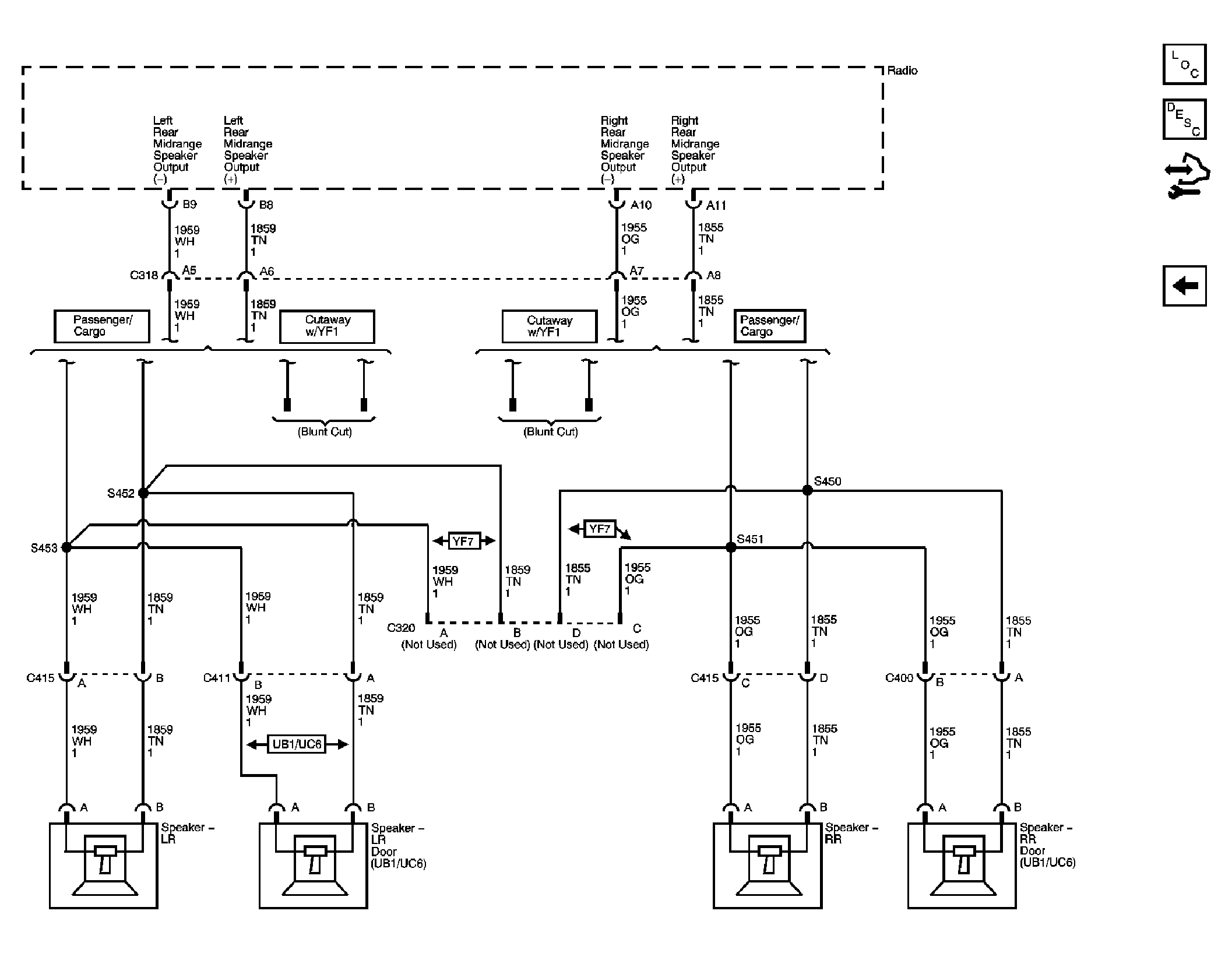

Fig 2: Rear Speaker Outputs
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
