Body Control System Wiring Schematics

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 GMC Savana Special, 2006 GMC Savana Camper Special, 2006 GMC Savana, 2006 Chevrolet RV Cutaway, and 2006 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

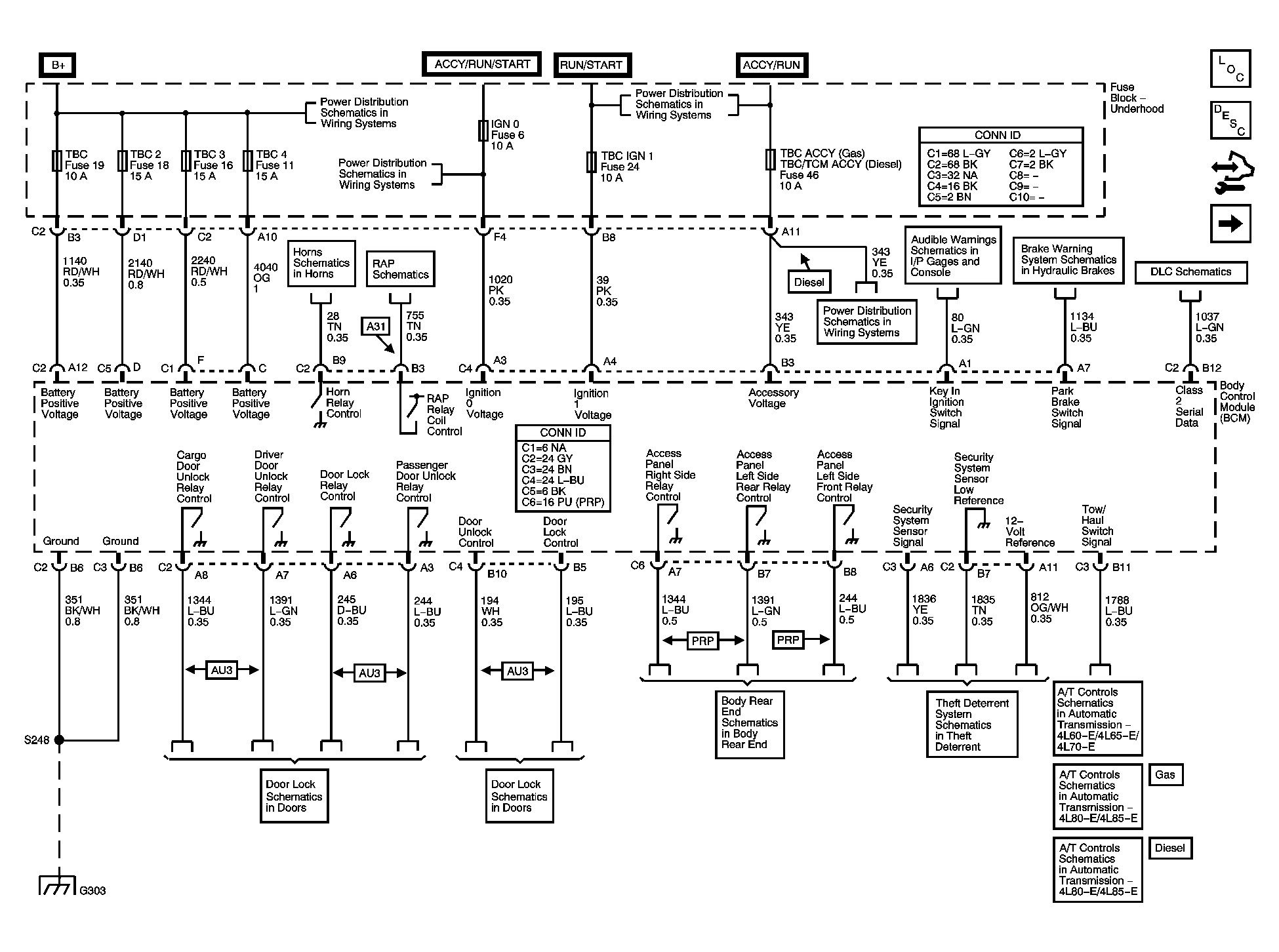

Fig 1: Power, Ground, Serial Data, and Controlled/Monitored Subsystem References
GM1569787Courtesy of GENERAL MOTORS CORP.

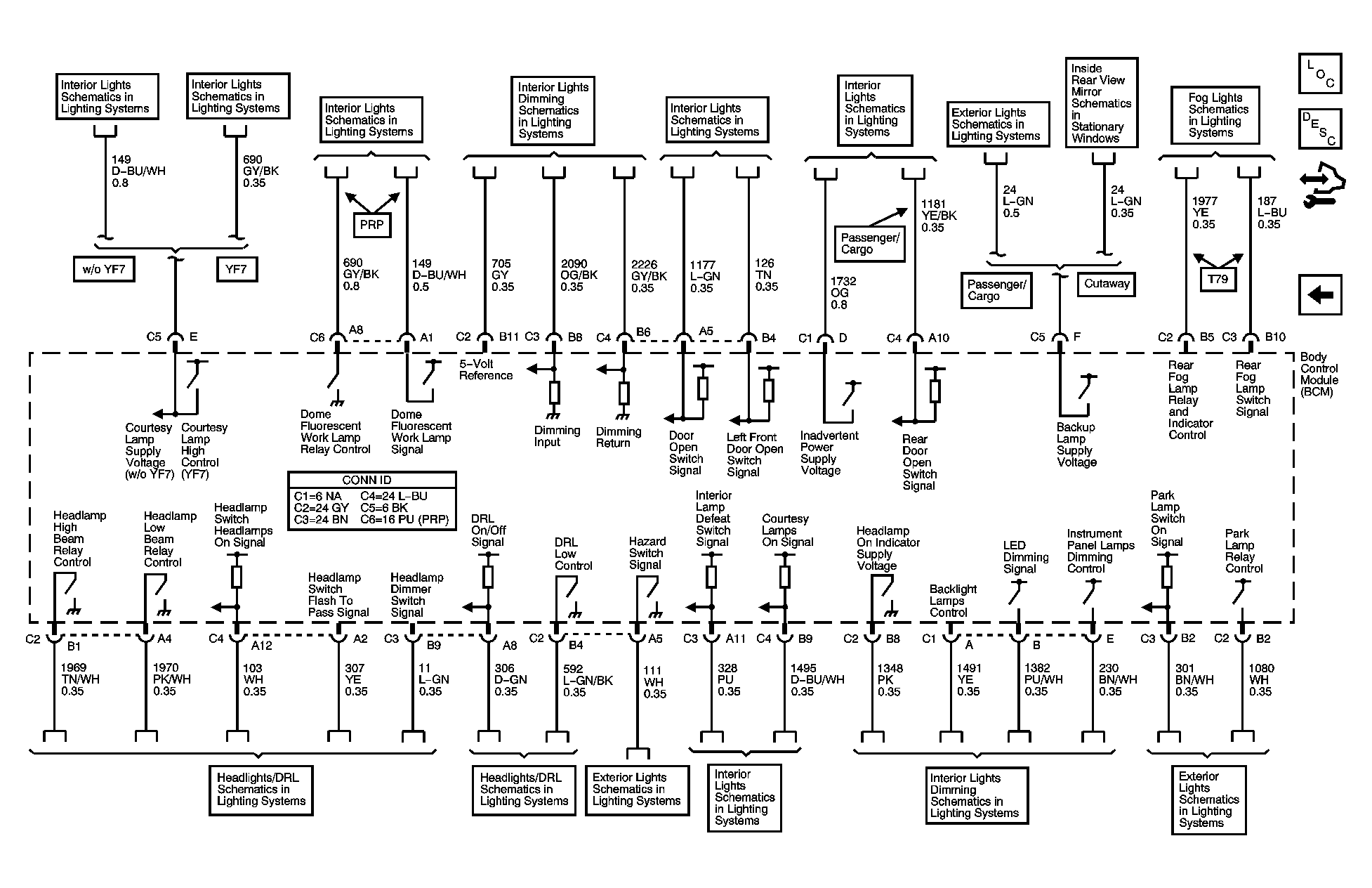

Fig 2: Lighting Subsystem References
GM1569790Courtesy of GENERAL MOTORS CORP.
