Engine Controls Schematics

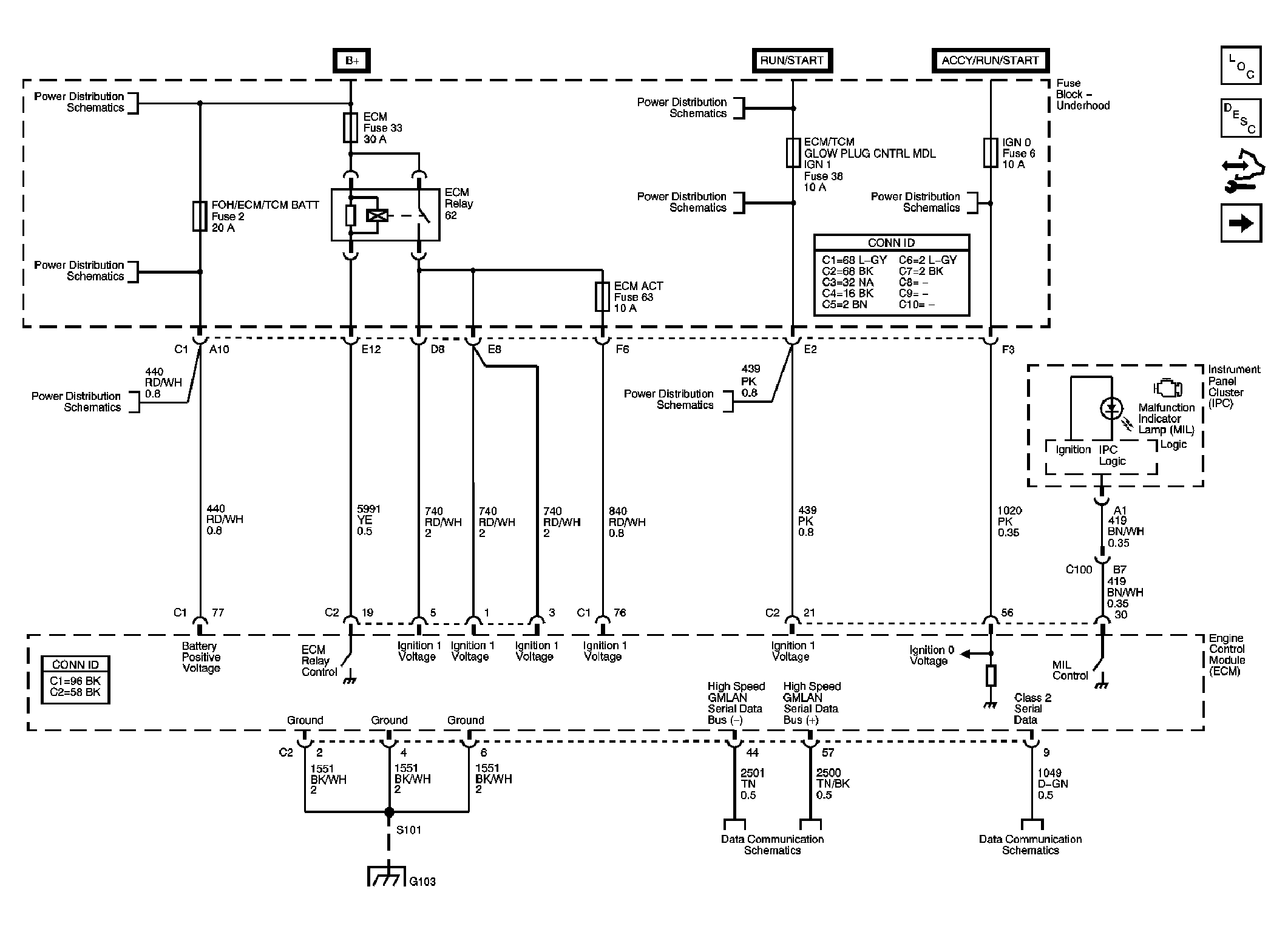

Fig 1: Module Power, Ground, Serial Data, and MIL

Courtesy of GENERAL MOTORS CORP.

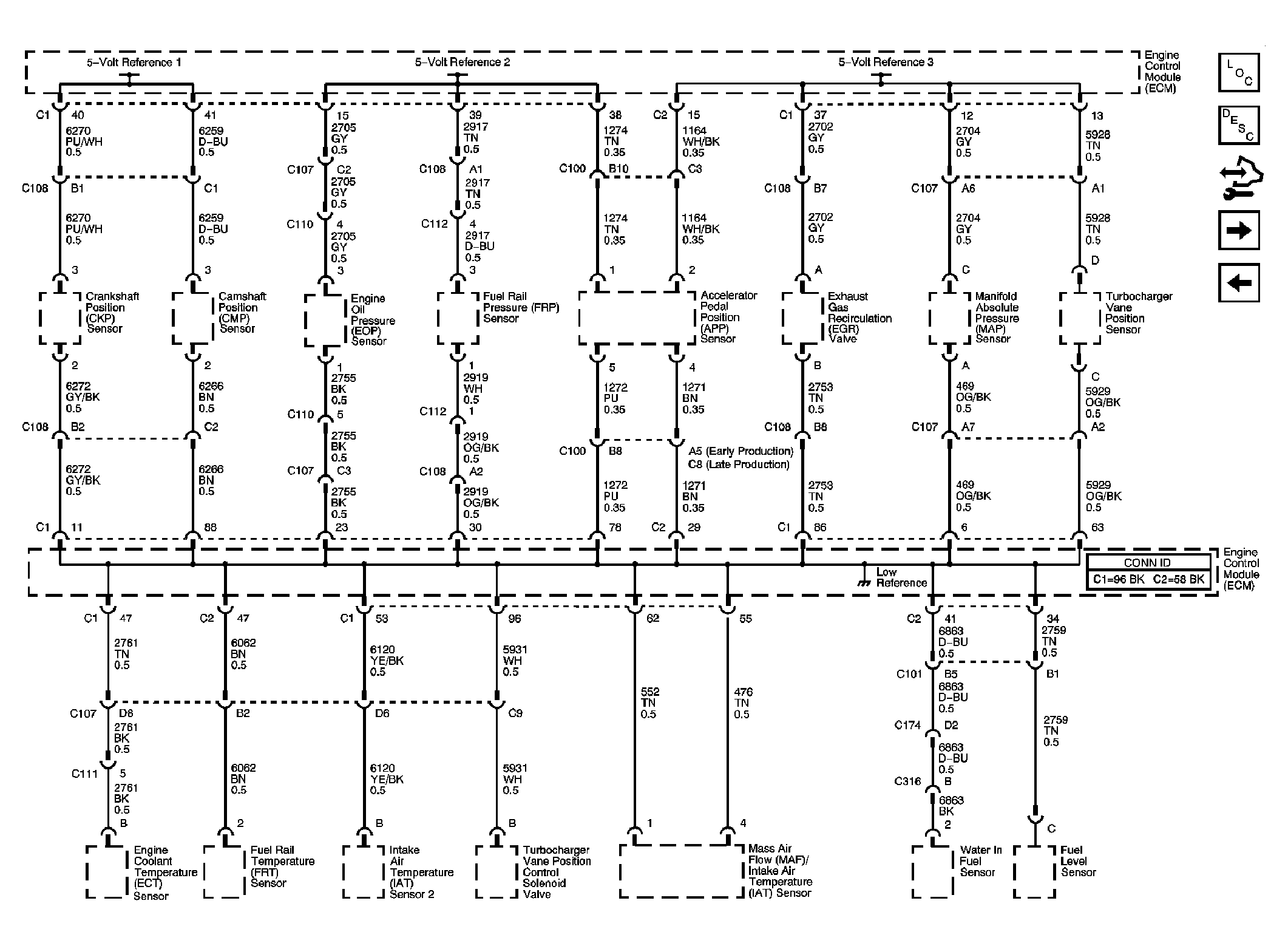

Fig 2: Engine Data Sensors - 5-Volt and Low References

Courtesy of GENERAL MOTORS CORP.

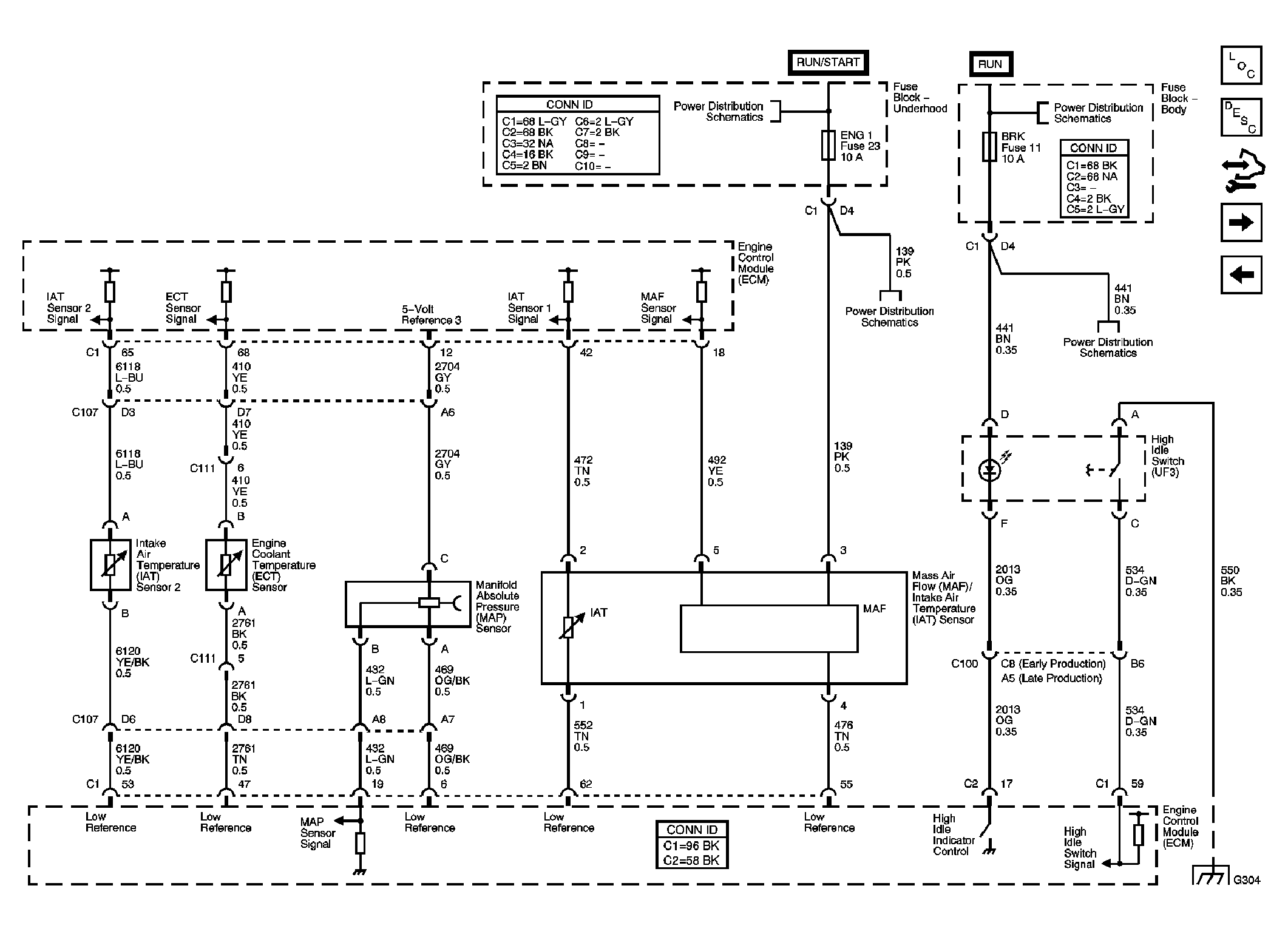

Fig 3: Engine Data Sensors - Pressure, Temperature, MAF, and High Idle Switch

Courtesy of GENERAL MOTORS CORP.

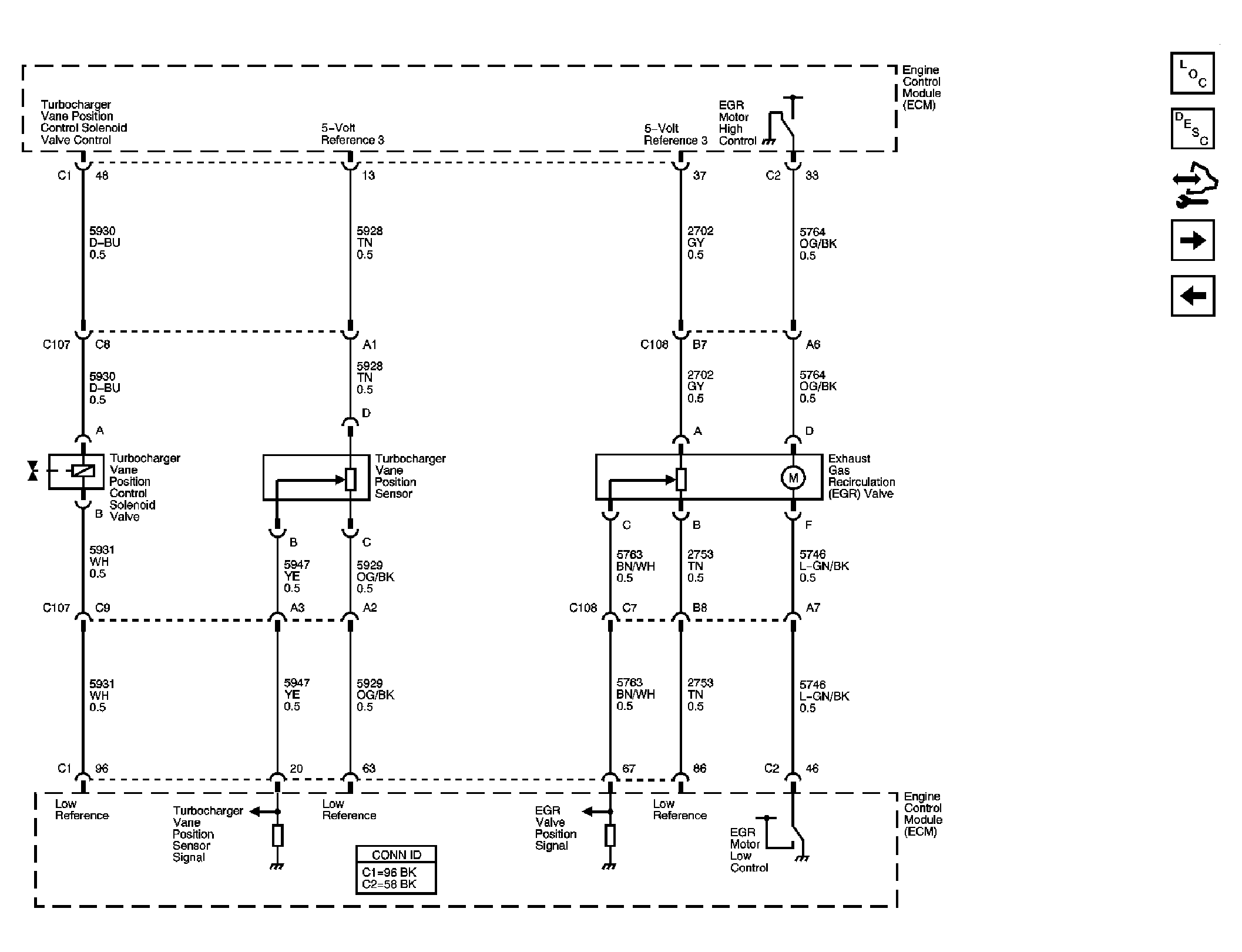

Fig 4: Engine Data Sensors - EGR and Turbocharger Controls

Courtesy of GENERAL MOTORS CORP.

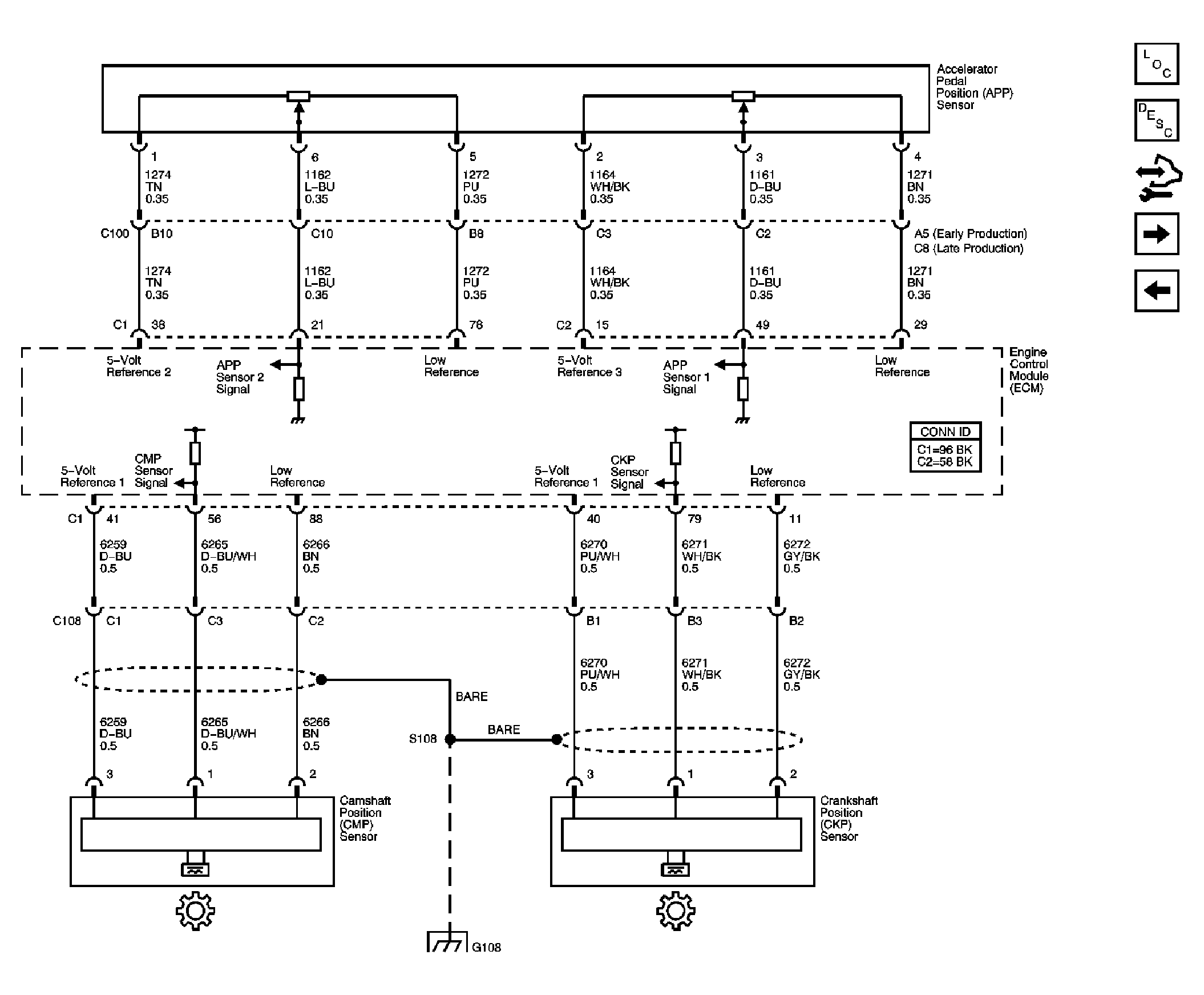

Fig 5: Engine Data Sensors - Pedal Position and Injector Timing

Courtesy of GENERAL MOTORS CORP.

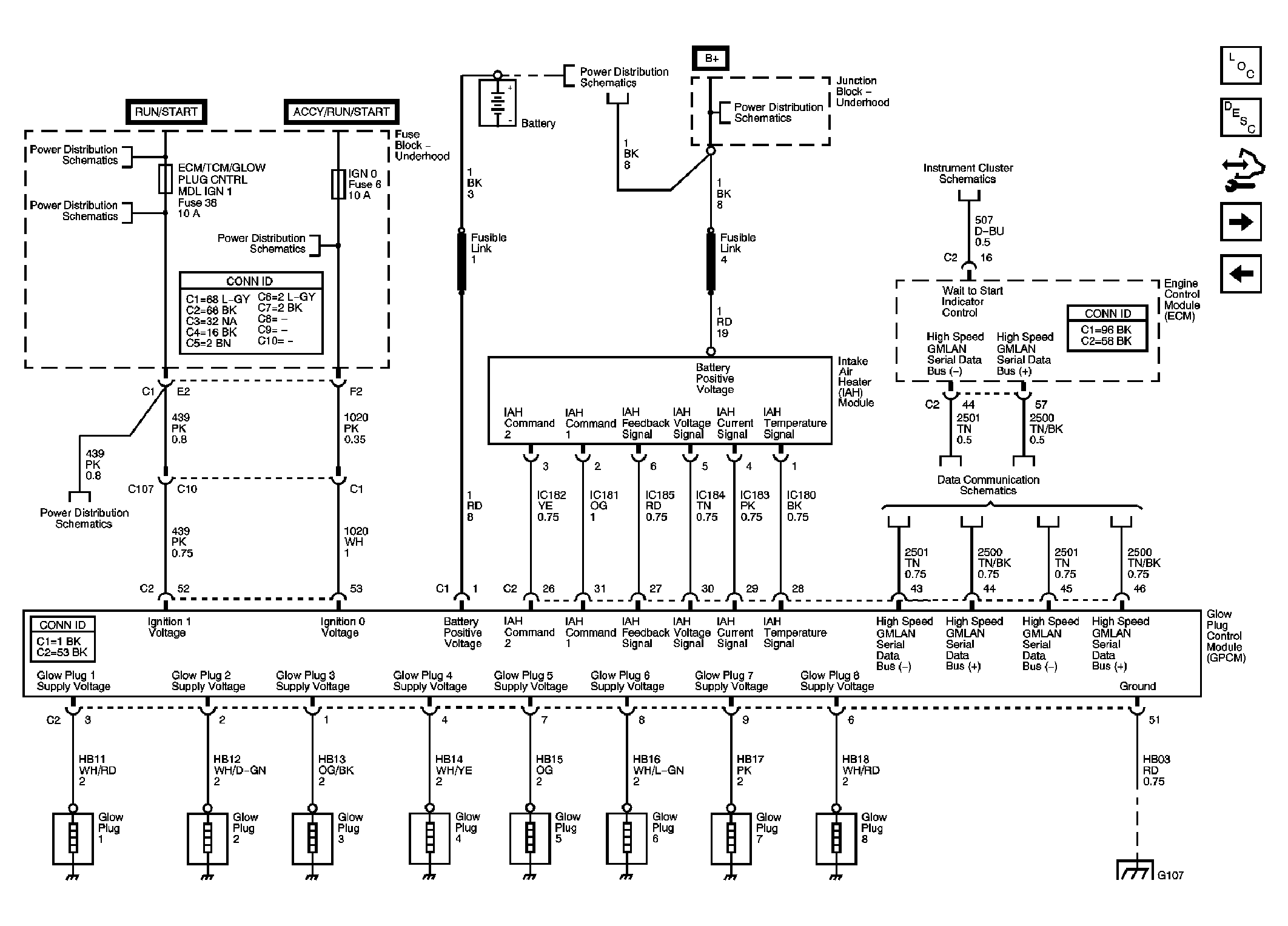

Fig 6: Engine Data Sensors - Glow Plug Controls

Courtesy of GENERAL MOTORS CORP.

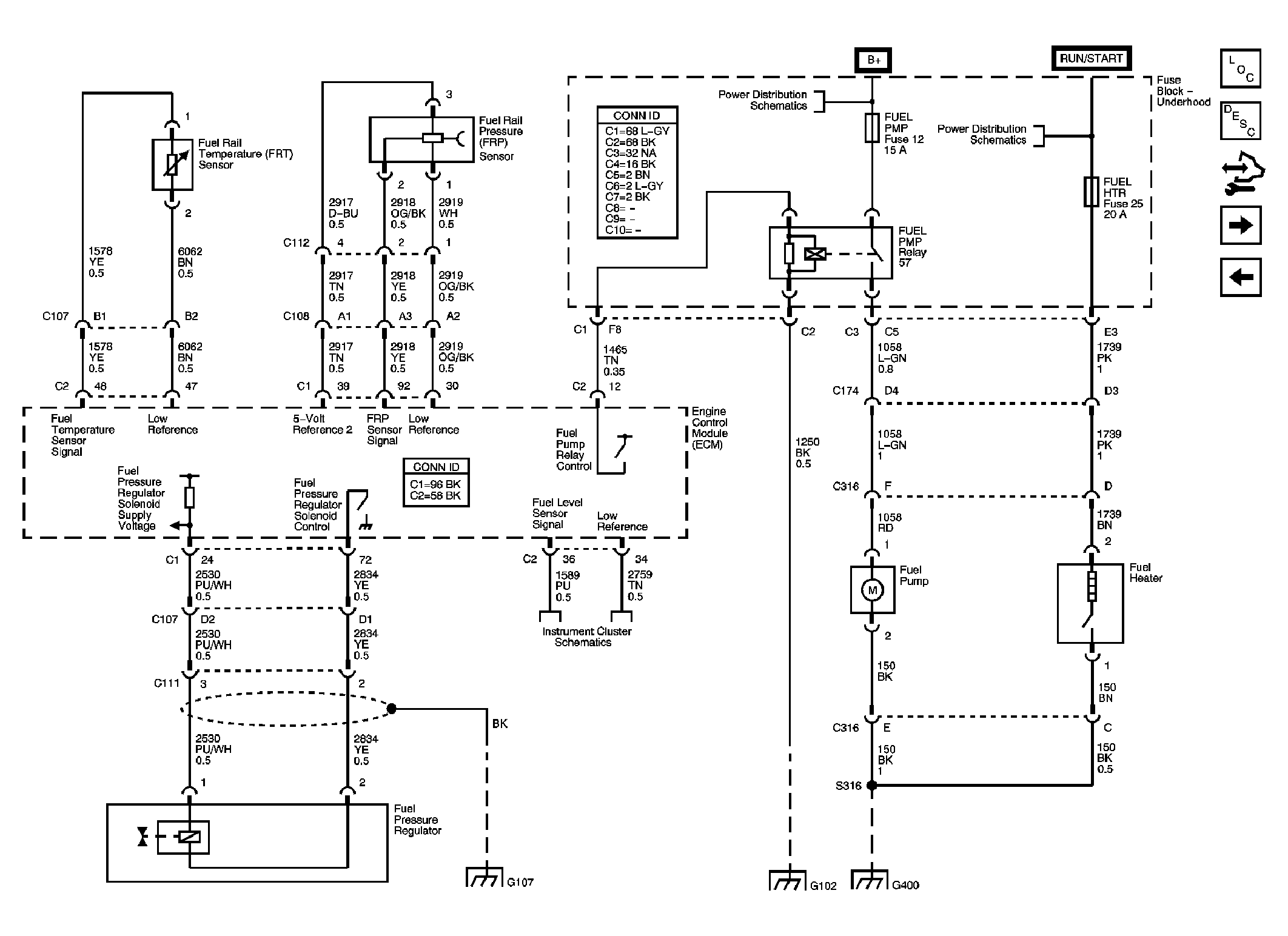

Fig 7: Fuel Controls - Fuel Pump, Temperature, and Pressure Controls

Courtesy of GENERAL MOTORS CORP.

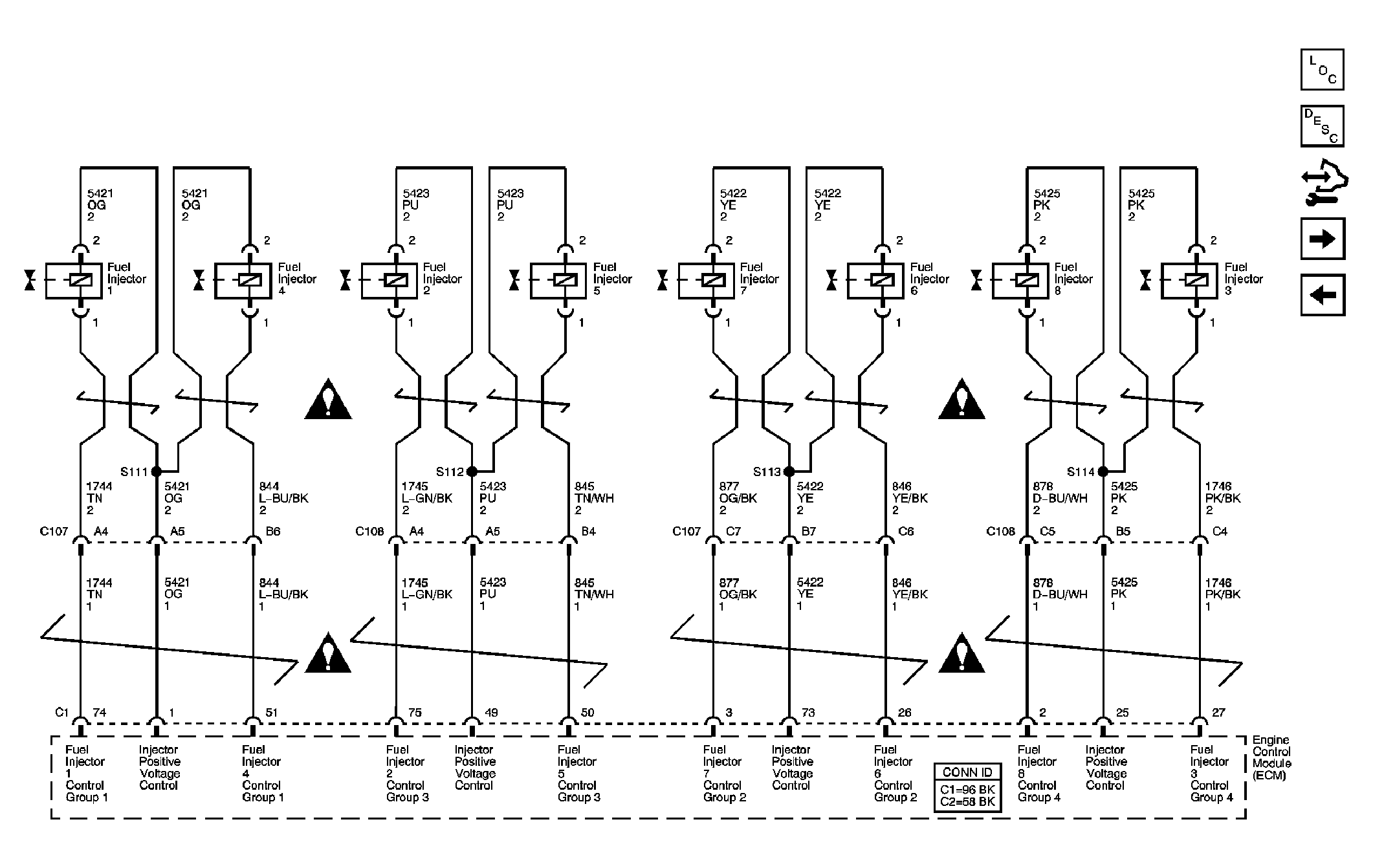

Fig 8: Fuel Controls - Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

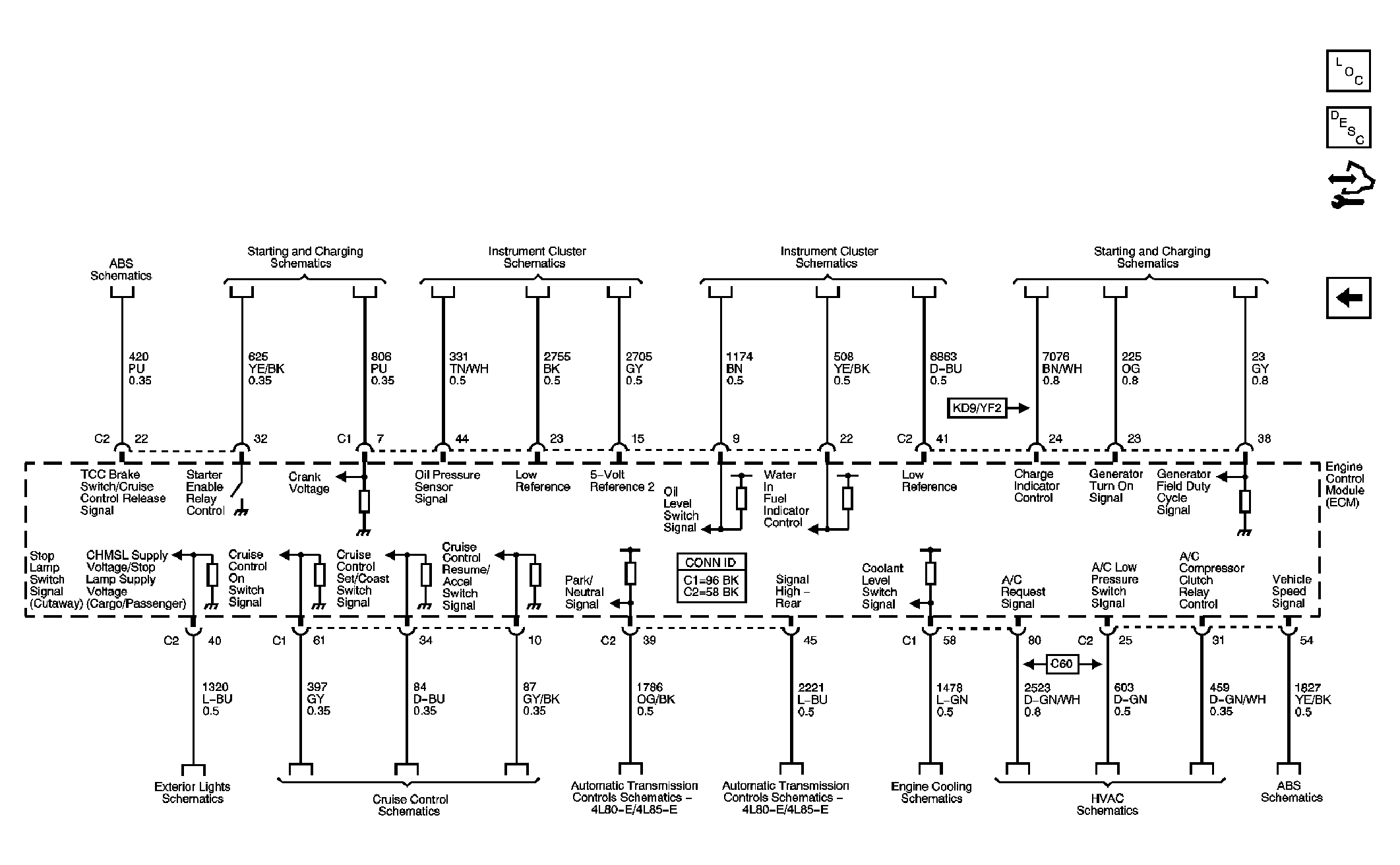

Fig 9: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
