Moveable Window Schematics (Notchback)

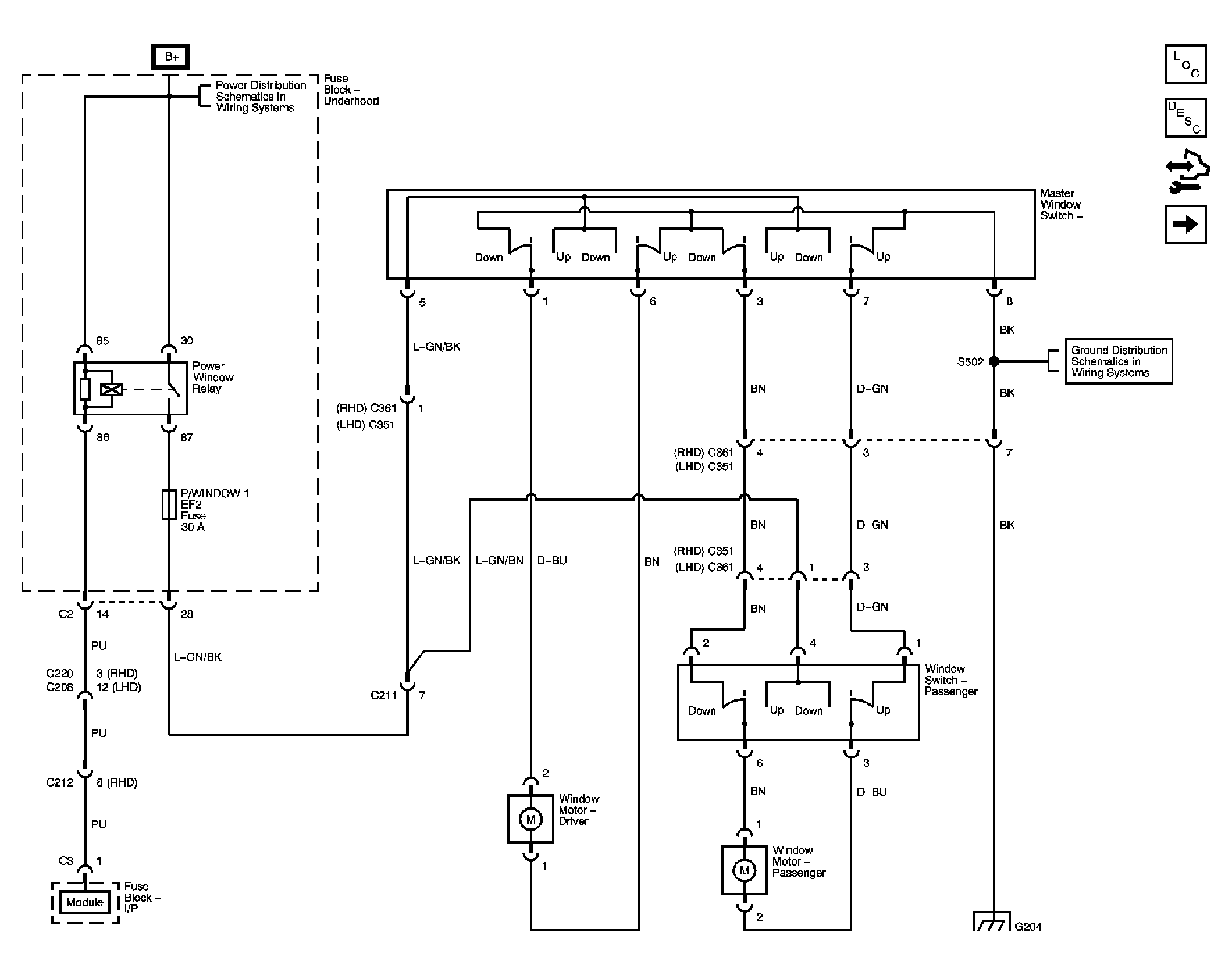

Fig 1: Front Power Windows

Courtesy of GENERAL MOTORS CORP.

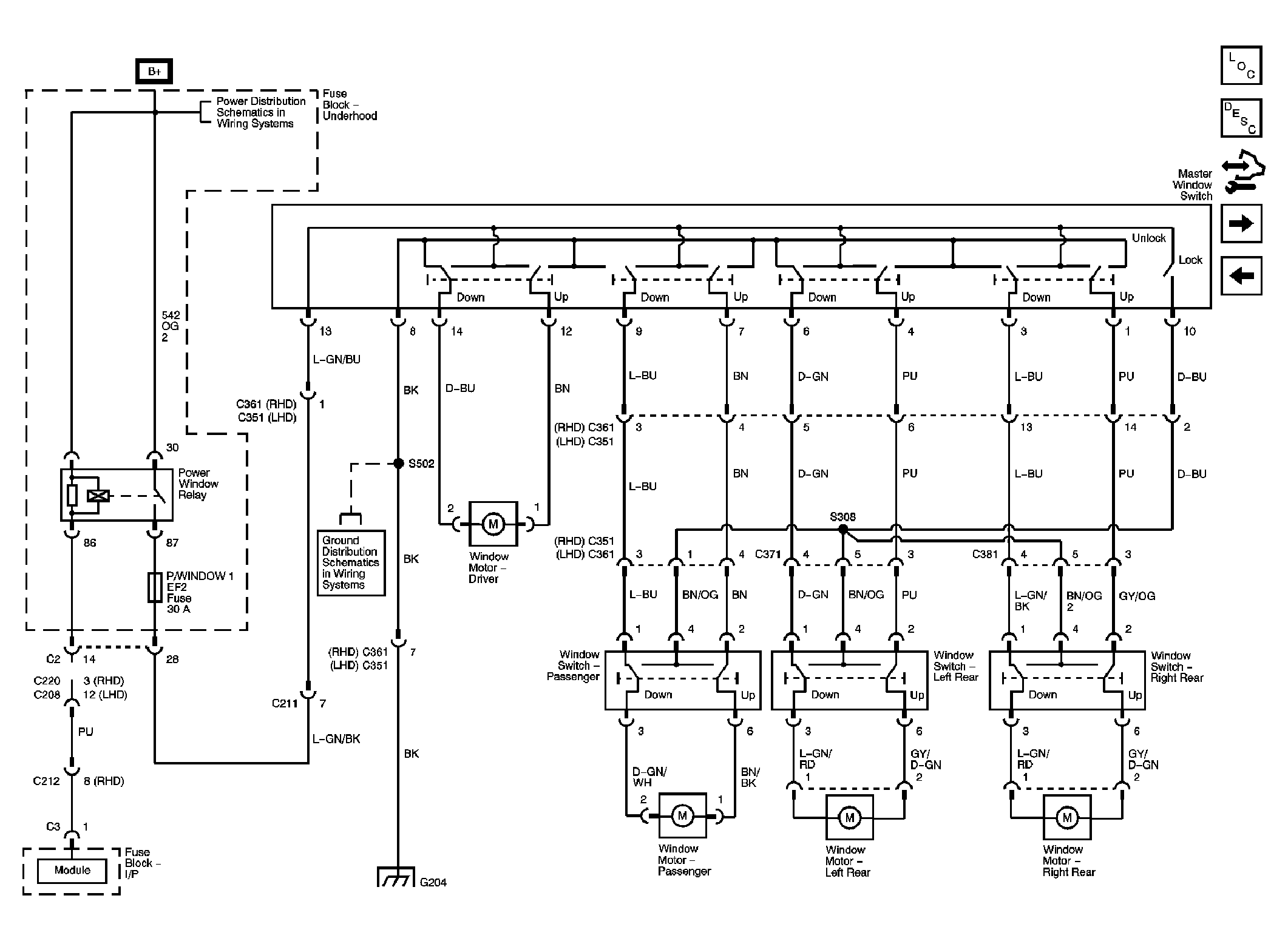

Fig 2: Front and Rear Power Windows

Courtesy of GENERAL MOTORS CORP.

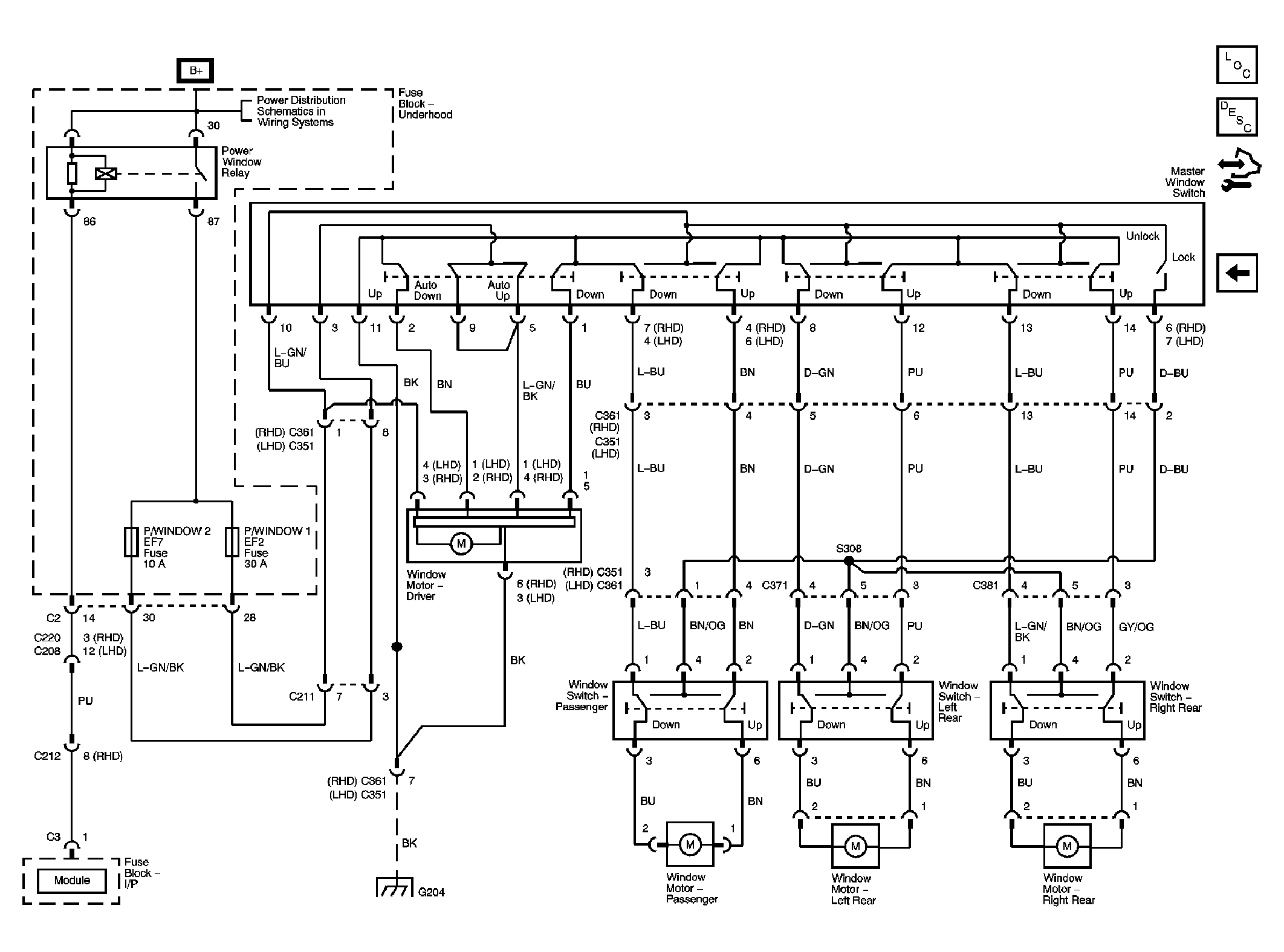

Fig 3: Safety Power Windows

Courtesy of GENERAL MOTORS CORP.
