Defogger Schematics (Notchback)

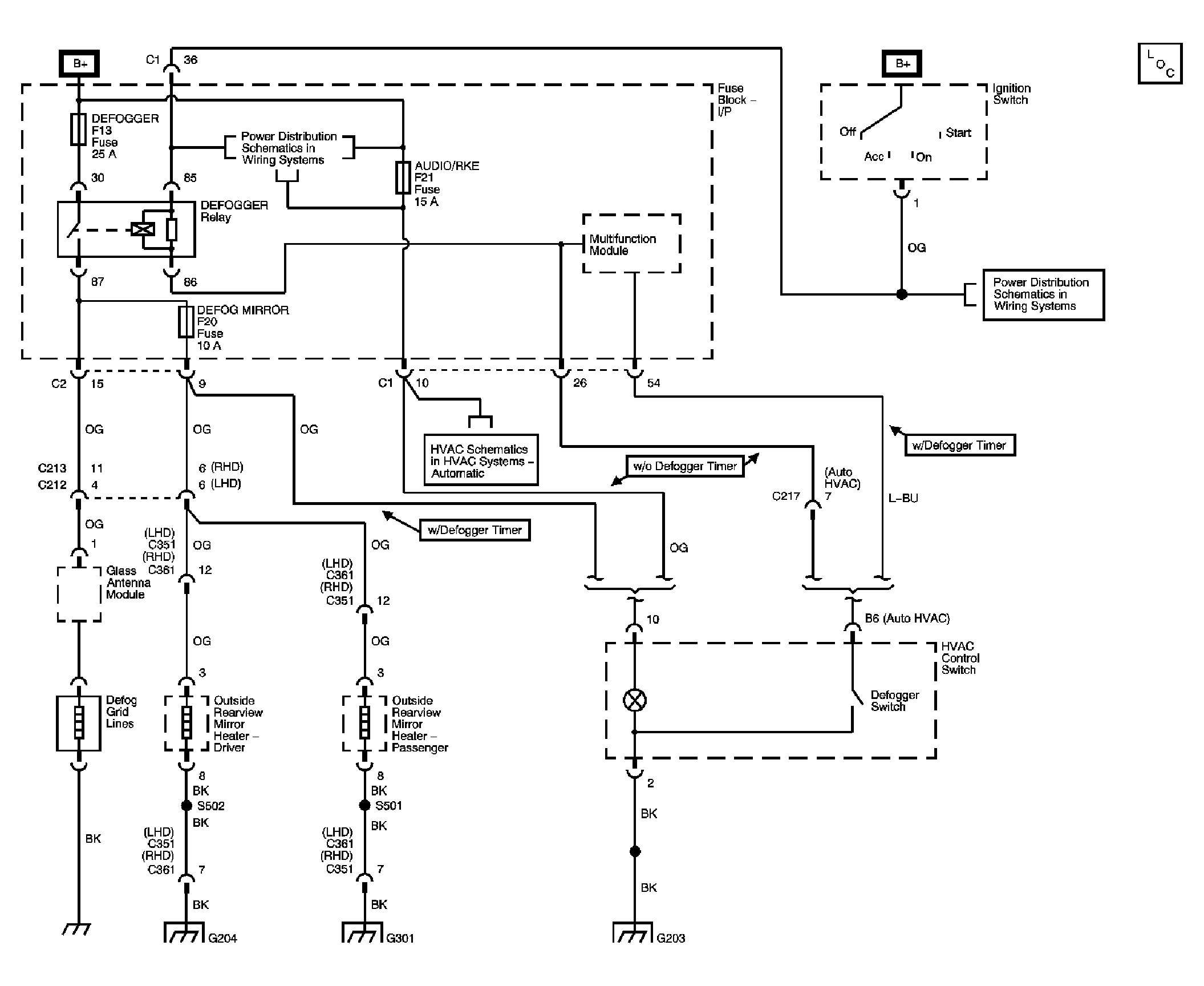

Fig 1: Defogger Schematic (Notchback)

GM1736639

Courtesy of GENERAL MOTORS CORP.
