Data Communication Schematics (Notchback)

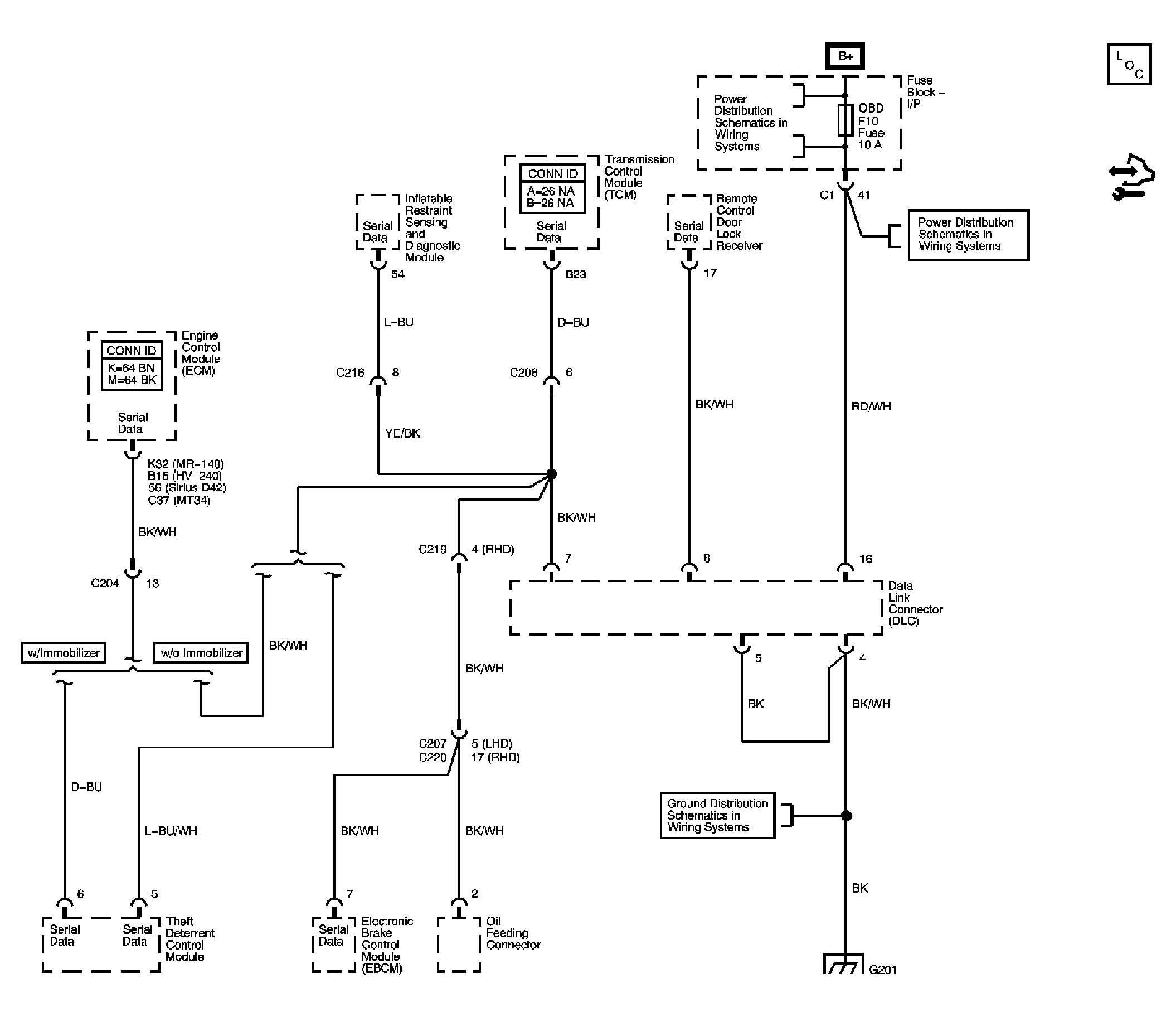

Fig 1: DLC Schematic

GM1737630

Courtesy of GENERAL MOTORS CORP.
