Amplifier Replacement (Monte Carlo)

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

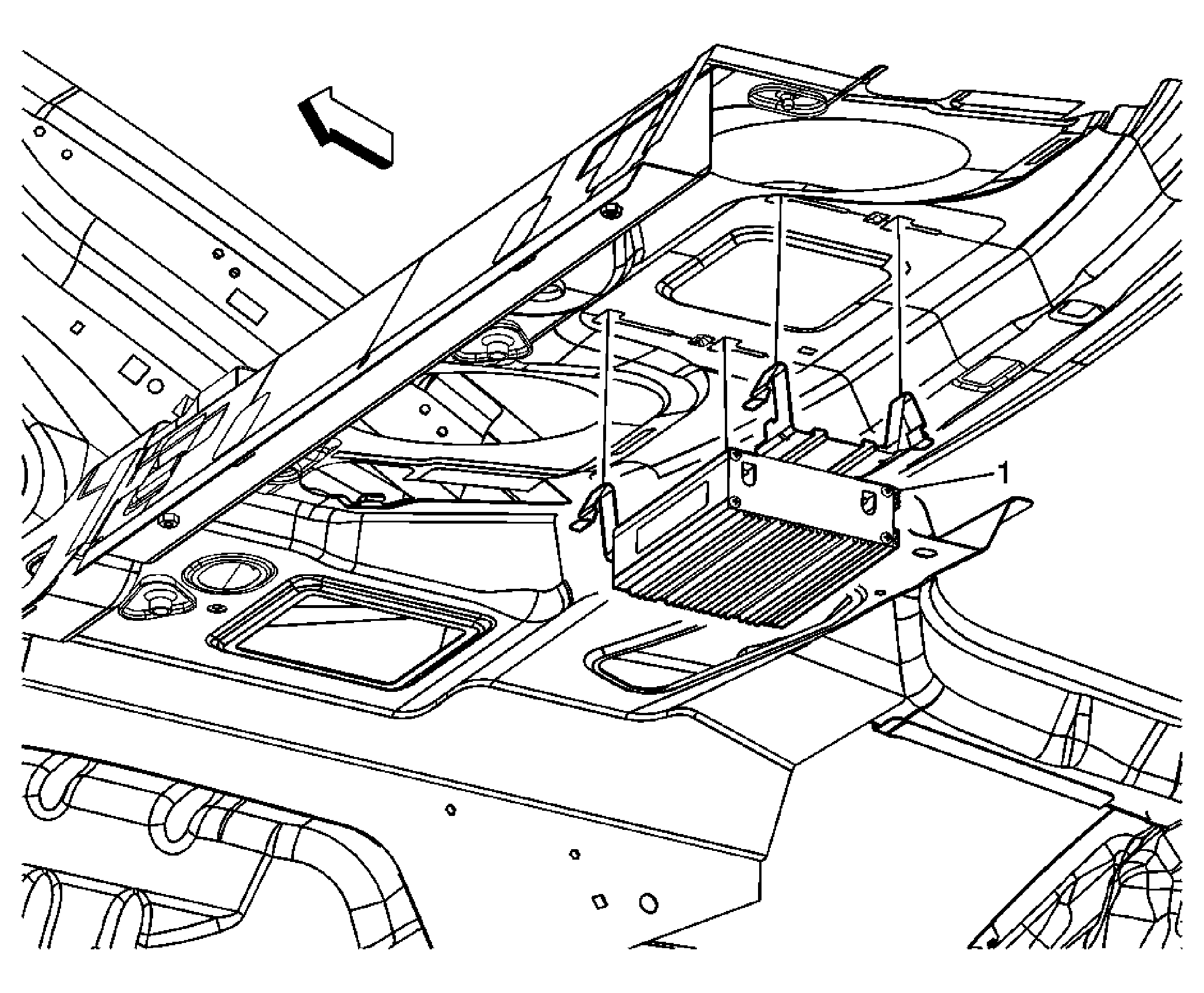

Fig 1: View Of Amplifier (Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Low Frequency Audio Amplifier Assembly Refer to Control Module References for programming and setup information. Tip: Push in the tabs on the amplifiers in order to release. Disconnect the electrical connector.
