Console Front Trim Plate Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

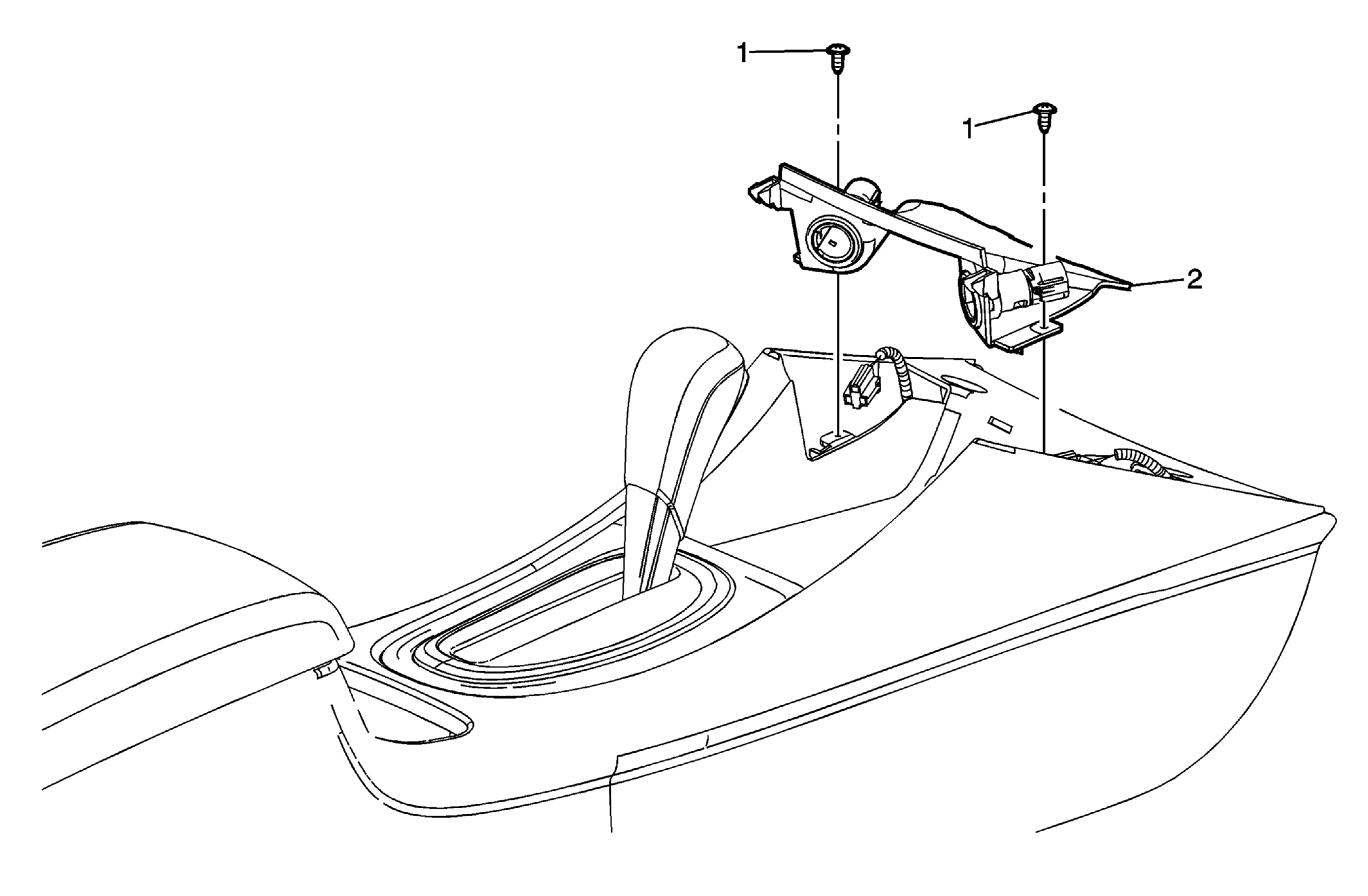

Fig 1: Identifying Console Front Trim Plate Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the Front Floor Console. Refer to Front Floor Console Replacement (Impala) or Front Floor Console Replacement (Monte Carlo) .
1	Screw, Front Floor Console Trim Panel (Qty 2) Tighten: 2 N.m (18 lb in)
2	Panel Assembly, Front Floor Console Trim Tip: Disconnect electrical connectors. Remove the 12 volt Accessory Power Receptacles. Refer to Cigar Lighter Receptacle or 12-Volt Accessory Power Receptacle Replacement .
