Wiper Drive System Module Replacement (Monte Carlo)

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

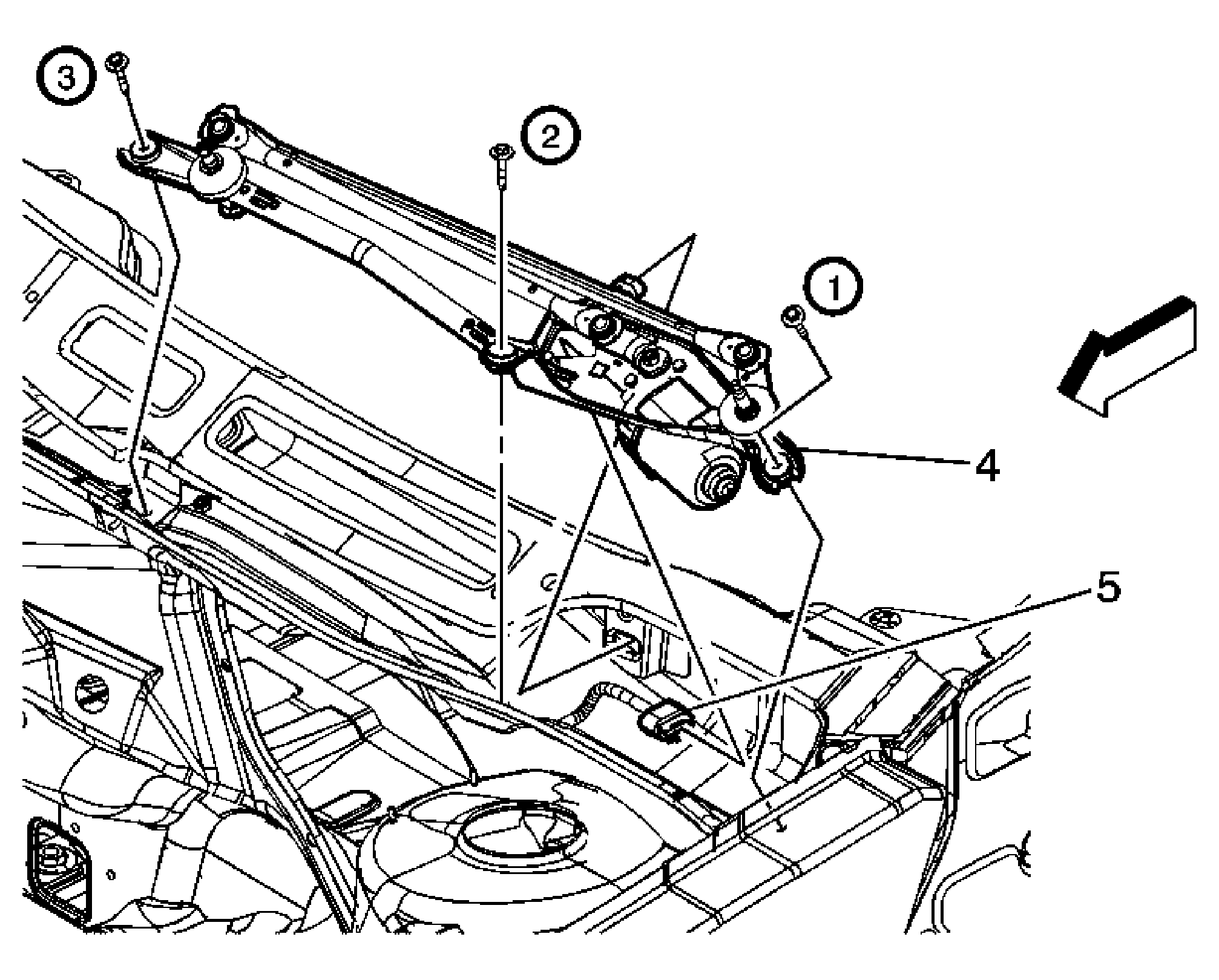

Fig 1: Replacing Wiper Drive System Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the wiper arms. Refer to Wiper Arm Replacement . Remove the air inlet grille panels. Refer to Air Inlet Grille Panel Replacement .
1	Windshield Wiper Module Bolt Tip: Tighten bolts in sequence to the specified torque value. Tighten: 9 N.m (80 lb in)
2	Windshield Wiper Module Bolt Tighten: 9 N.m (80 lb in)
3	Windshield Wiper Module Bolt Tighten: 9 N.m (80 lb in)
4	Module Assembly, Windshield Washer System Raise the forward edge of the windshield washer module assembly out of the plenum panel first followed by disconnecting the wiper motor electrical connector. Upon installation of the windshield washer module, turn the module 180 degrees, slide the module under the hood and align the rear locator to the backside of the plenum. Tighten the bolts in sequence as shown.
5	Windshield Wiper Motor Electrical Connector Tip: Connect the electrical connector to the wiper motor prior to installing the module assembly back into the plenum.
