Removal Procedure

  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the front door window. Refer to Window Replacement - Front Door .

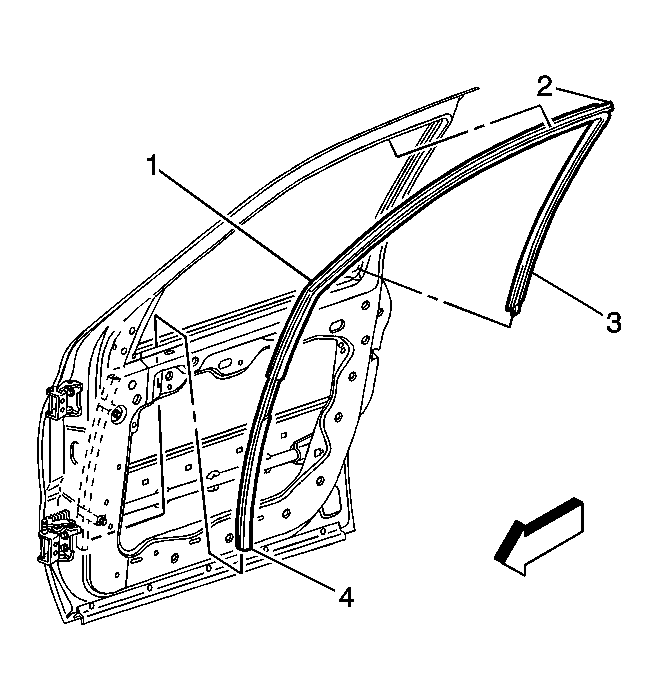

    4. Fig 1: Identifying Front Door Weatherstrip
    GM1502968Courtesy of GENERAL MOTORS CORP.
  4. Remove the weatherstrip (2) from the door frame.
