Removal Procedure

    IMPORTANT: By removing the power sliding door (PSD) 15A fuse, the low current logic power for both the LH and RH power sliding door modules (PSDM) will be interrupted and both PSDs will be inoperative.
  1. If equipped with a power sliding door, disable the PSD system by removing the PSD 15A fuse from the instrument panel (I/P) fuse block.
  2. Remove the sliding door inner trim panel. Refer to Trim Panel Replacement - Side Rear Door .

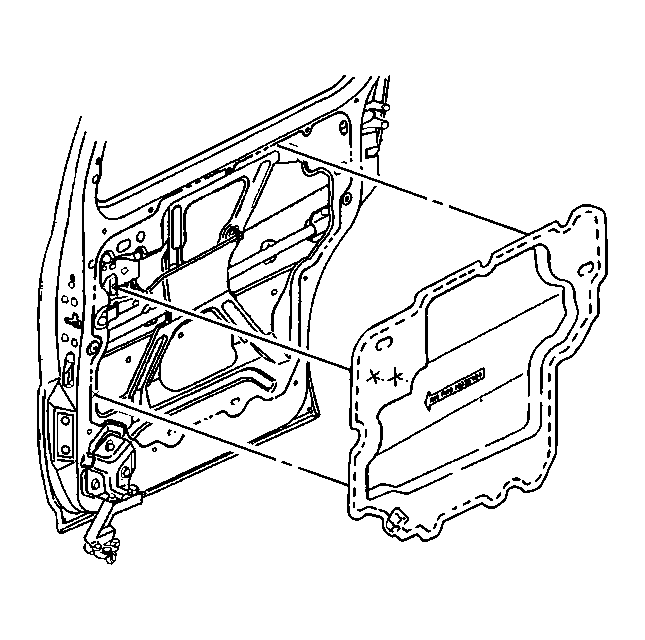

    3. Fig 1: View Of Sliding Inner Door
    GM319950Courtesy of GENERAL MOTORS CORP.
  3. Remove the sliding door water deflector from the sliding inner door.
