Removal Procedure

  1. Open the front door.

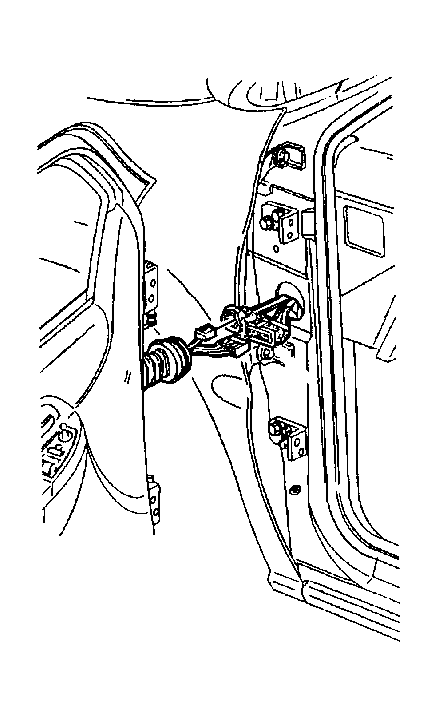

    2. Fig 1: Locating Front Door Rubber Conduit
    GM319799Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the front door rubber conduit from the front door body side.
  3. Remove the front door electrical harness electrical connector through the opening in the front door body side pillar.
  4. Disconnect the front door electrical harness electrical connector.

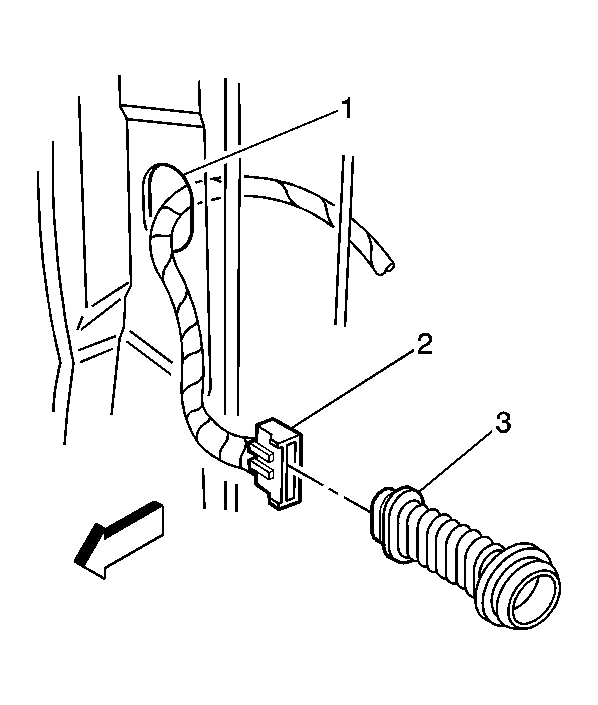

    5. Fig 2: Disconnecting/Reconnecting Front Door Rubber Conduit
    GM1480540Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the front door rubber conduit from the front door.
  6. Remove the front door rubber conduit (3) from the front door electrical harness (2).
