Seat Back Protector Replacement - Rear

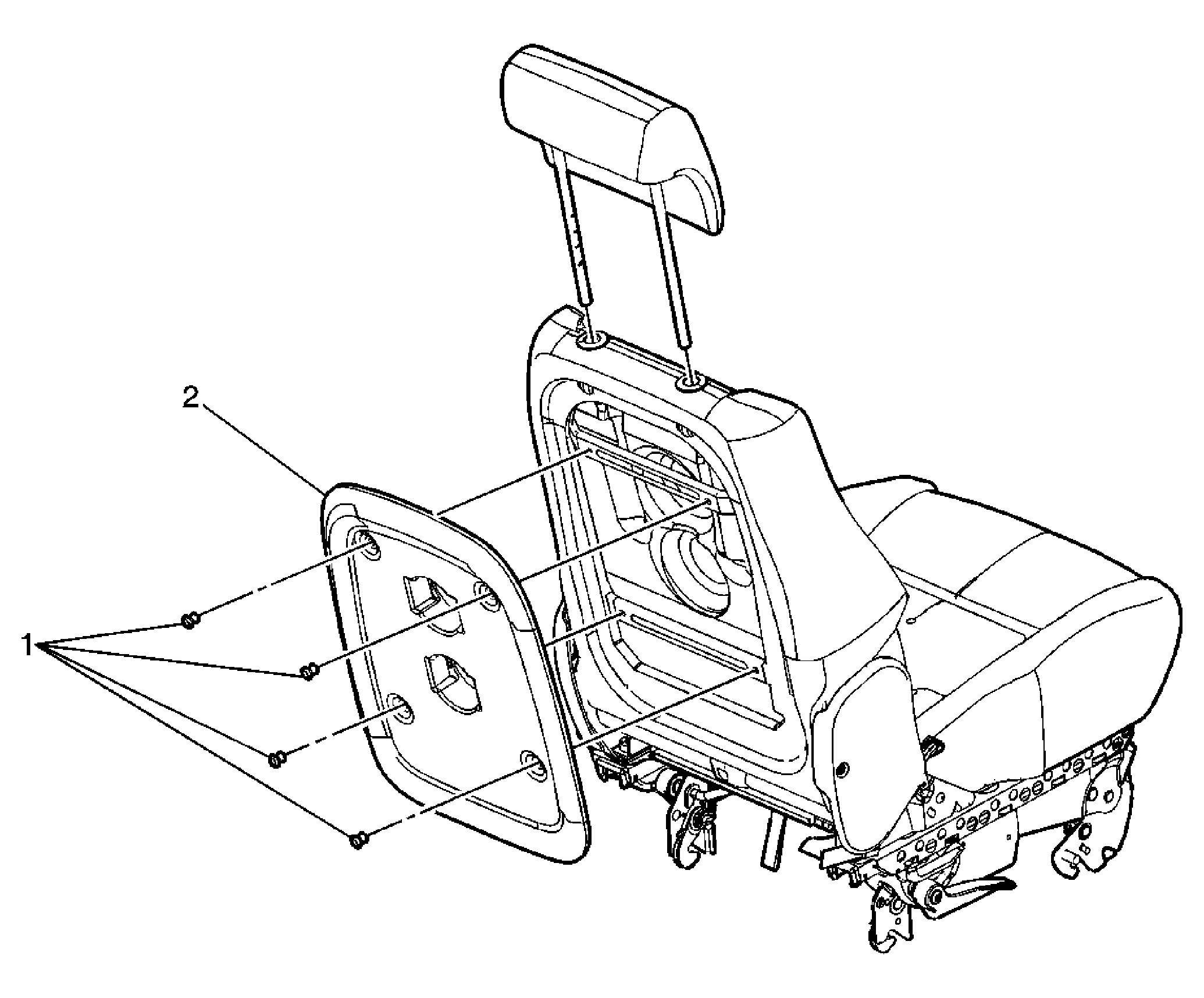

Fig 1: View Of Seat Back Protector - Rear
GM1546967Courtesy of GENERAL MOTORS CORP.
Seat Back Protector Replacement - Rear

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Retainer, Rear Seat Back Cushion Protector (Qty: 4)
2 Protector, Rear Seat Back Cushion
