Installation Procedure

  1. Install the foot rest to the seat base.

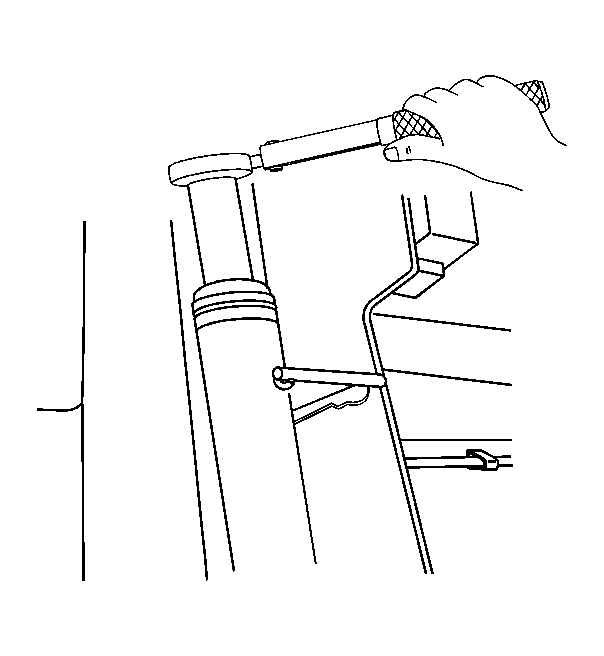

    2. Fig 1: Removing & Installing Bolt For Foot Rest Tube
    GM1368237Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolt to the foot rest tube.

    Tighten:  Tighten the bolt to 33 N.m (25 lb ft).

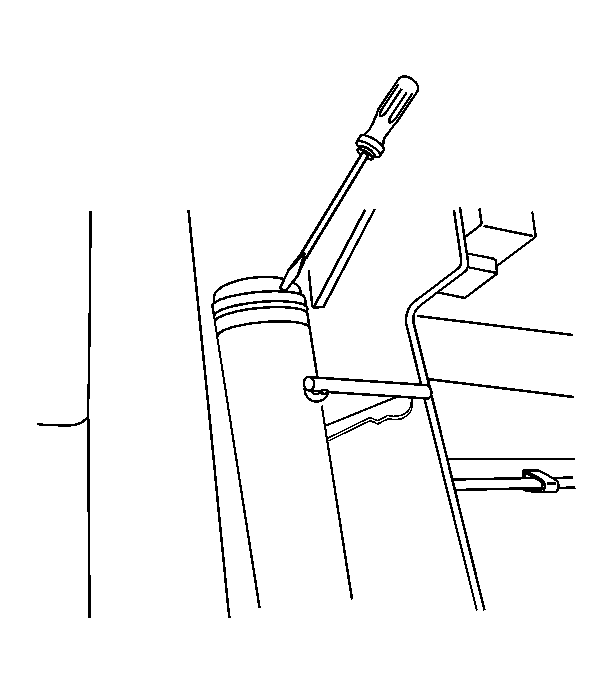

    3. Fig 2: View Of Bolt Cover For Foot Rest Tube
    GM1368224Courtesy of GENERAL MOTORS CORP.
  3. Install the foot rest tube covers and snap into place.

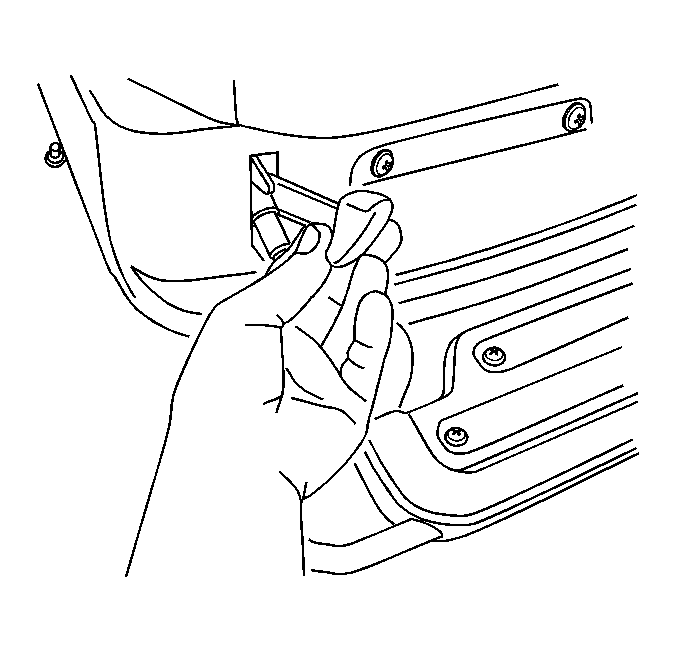

    4. Fig 3: Locating Foot Rest Lock Handle
    GM1368555Courtesy of GENERAL MOTORS CORP.
  4. Install the foot rest lock handle.
  5. Return the foot rest to the seat base.
  6. Return the seat to the vehicle.
  7. Test the seat for proper operation.
