ABS Schematics

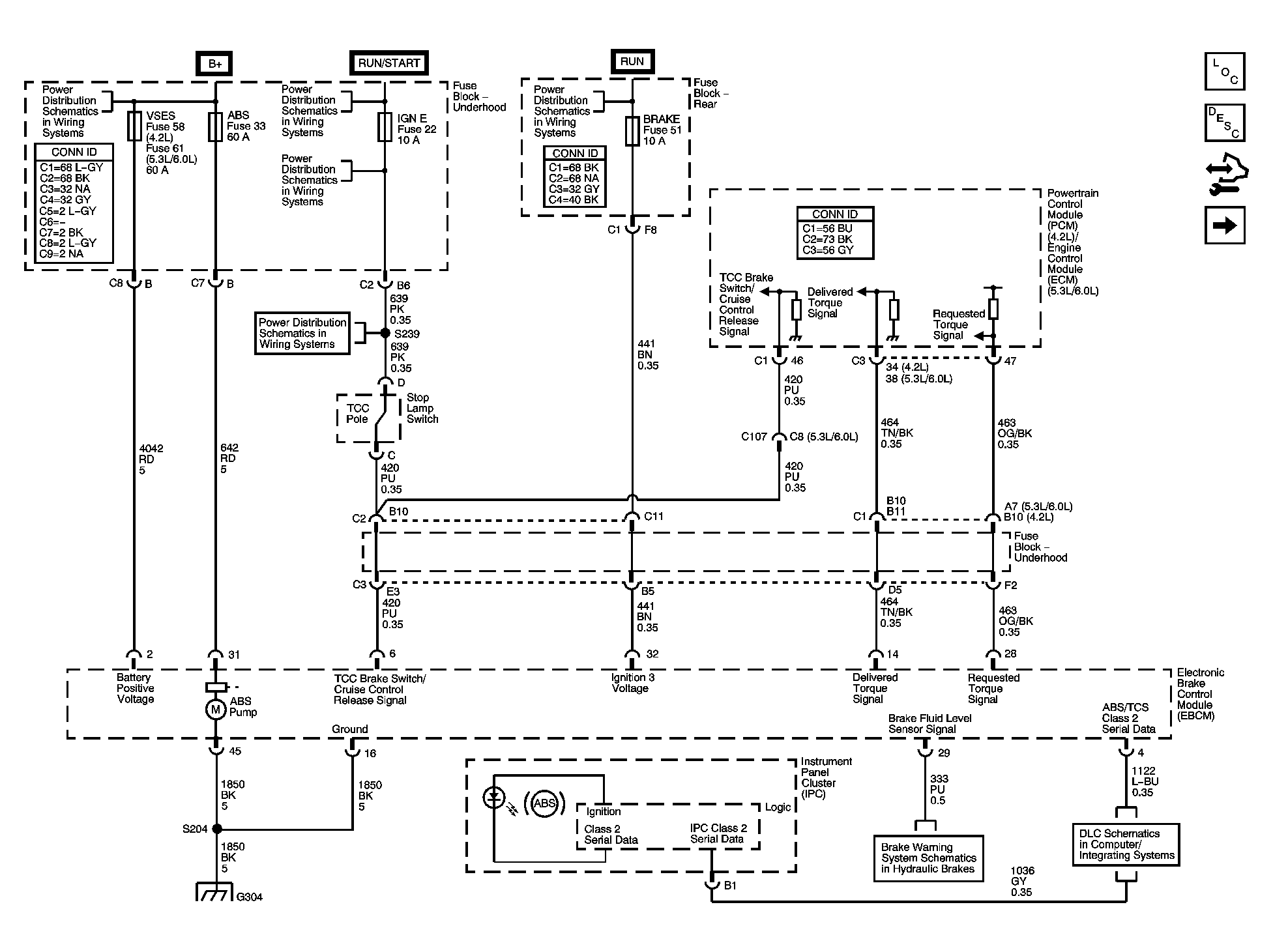

Fig 1: EBCM, Power, Ground, Serial Data, Indicator & Signal Circuits
GM1594162Courtesy of GENERAL MOTORS CORP.

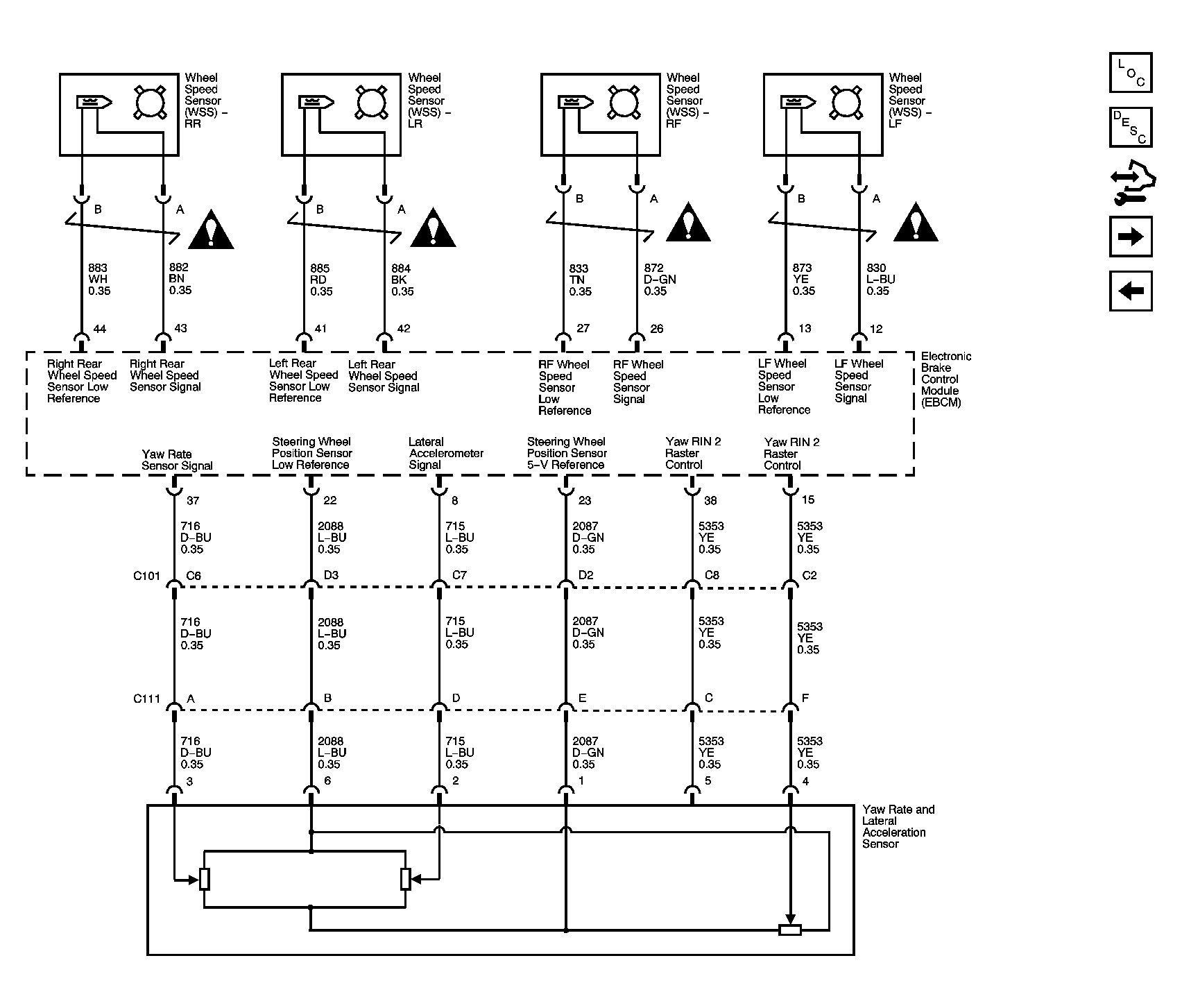

Fig 2: Wheel Speed Sensors and Yaw Rate/Lateral Acceleration Sensor
GM1594164Courtesy of GENERAL MOTORS CORP.

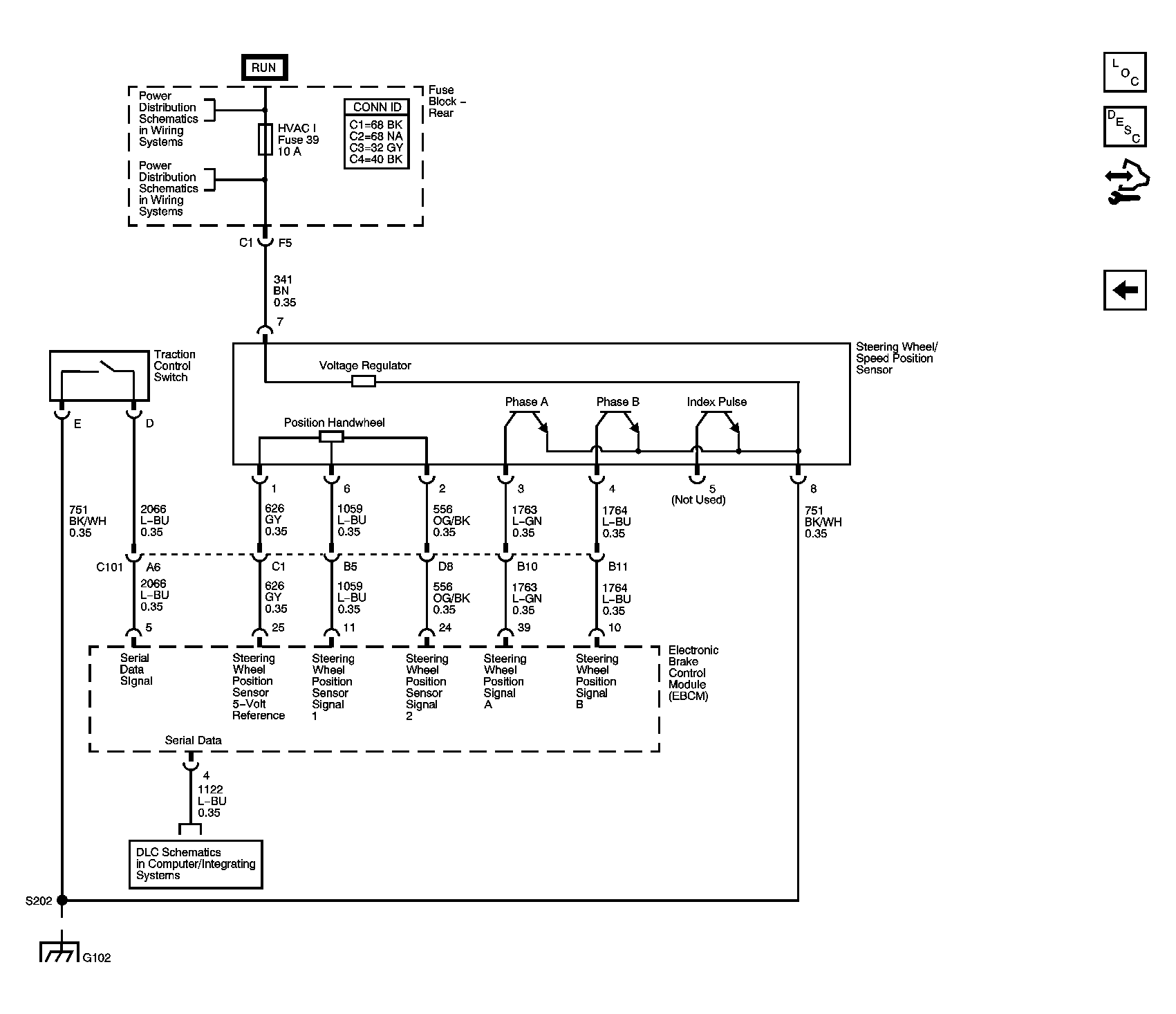

Fig 3: Steering Wheel Speed Position Sensor & Traction Control Switch
GM1594165Courtesy of GENERAL MOTORS CORP.
