Installation Procedure

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

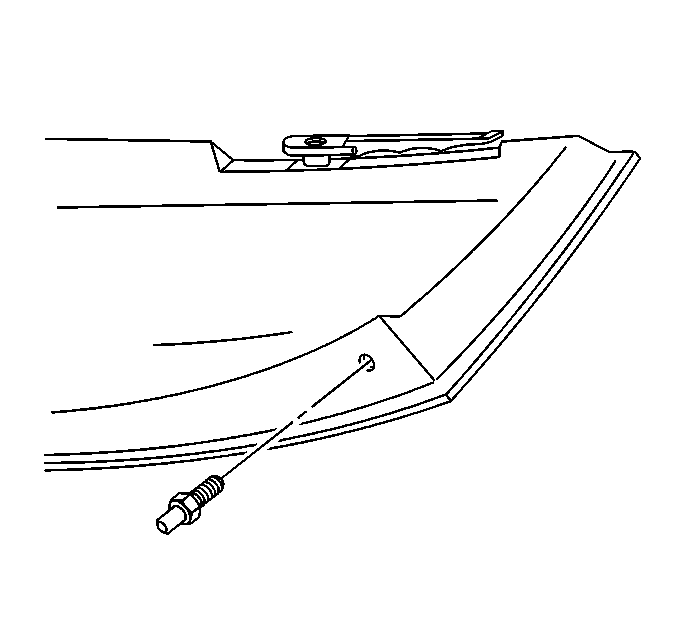

Fig 1: Roof Panel Rear Locator Pin To Roof Panel
GM63757Courtesy of GENERAL MOTORS CORP.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the rear roof panel locator pin.

    Tighten:  Tighten the roof rear locator pin to 25 N.m (18 lb ft).

    2. Fig 2: Sunroof View
    GM63735Courtesy of GENERAL MOTORS CORP.
  2. Install the roof panel.
