Outside Mirror Schematics

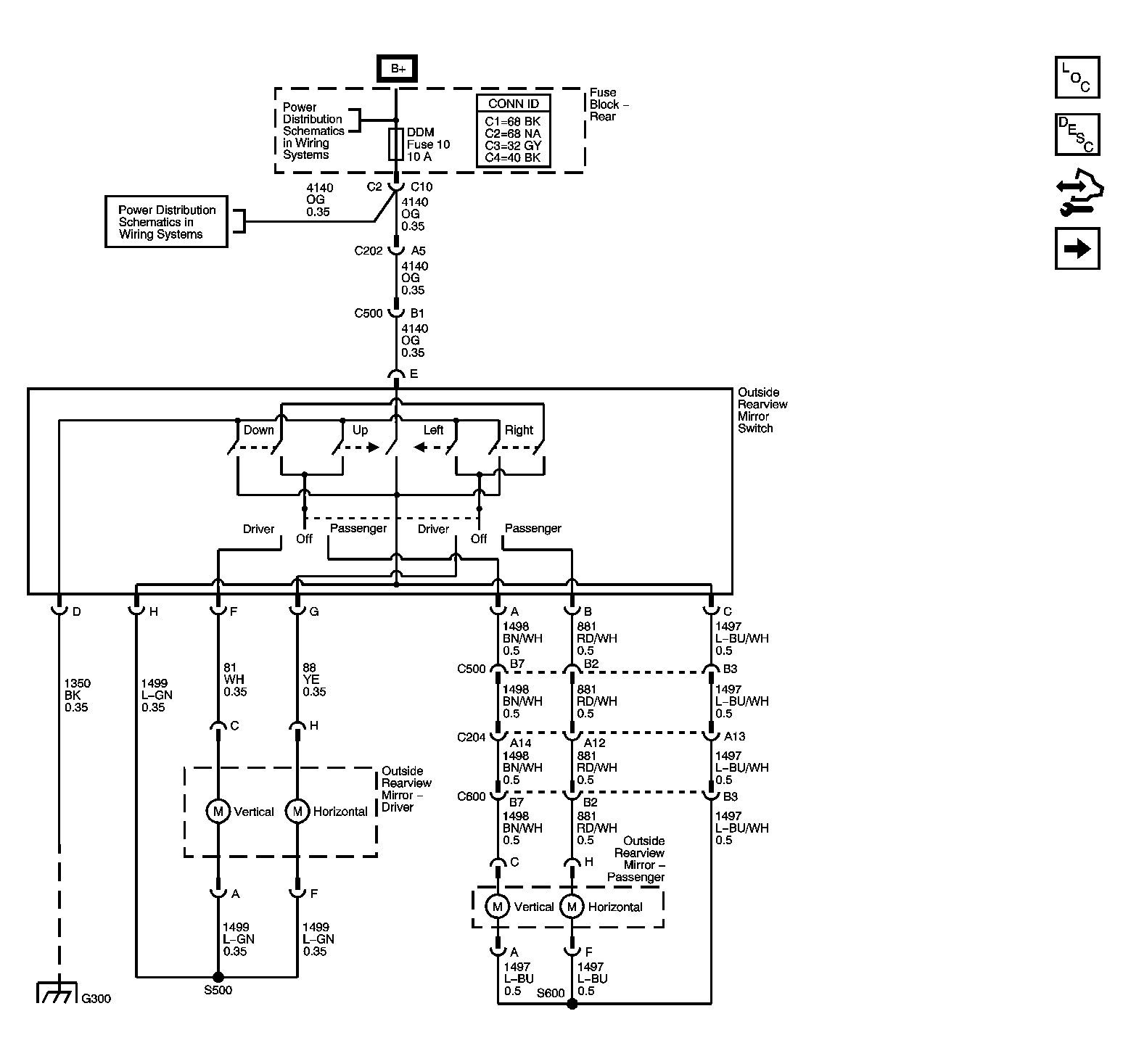

Fig 1: Power Mirrors

GM1458637

Courtesy of GENERAL MOTORS CORP.

Fig 2: Heated Mirrors

GM1458639

Courtesy of GENERAL MOTORS CORP.
