SSR Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Schematic and Routing Diagrams
>>
Cruise Control Schematics
Cruise Control Schematics

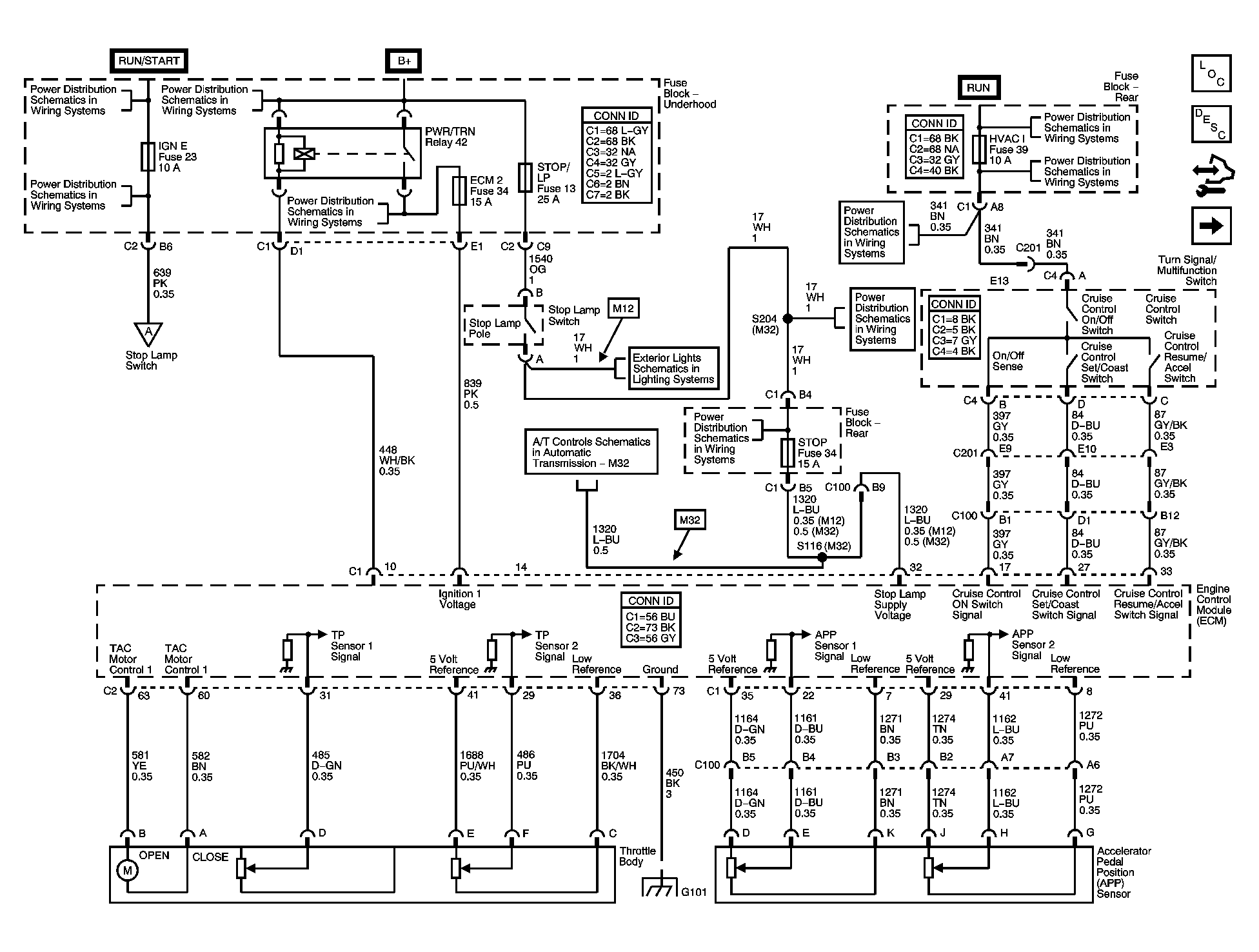

Fig 1: Power, Ground, TAC Module, APP Sensor and Throttle Body
Courtesy of GENERAL MOTORS CORP.

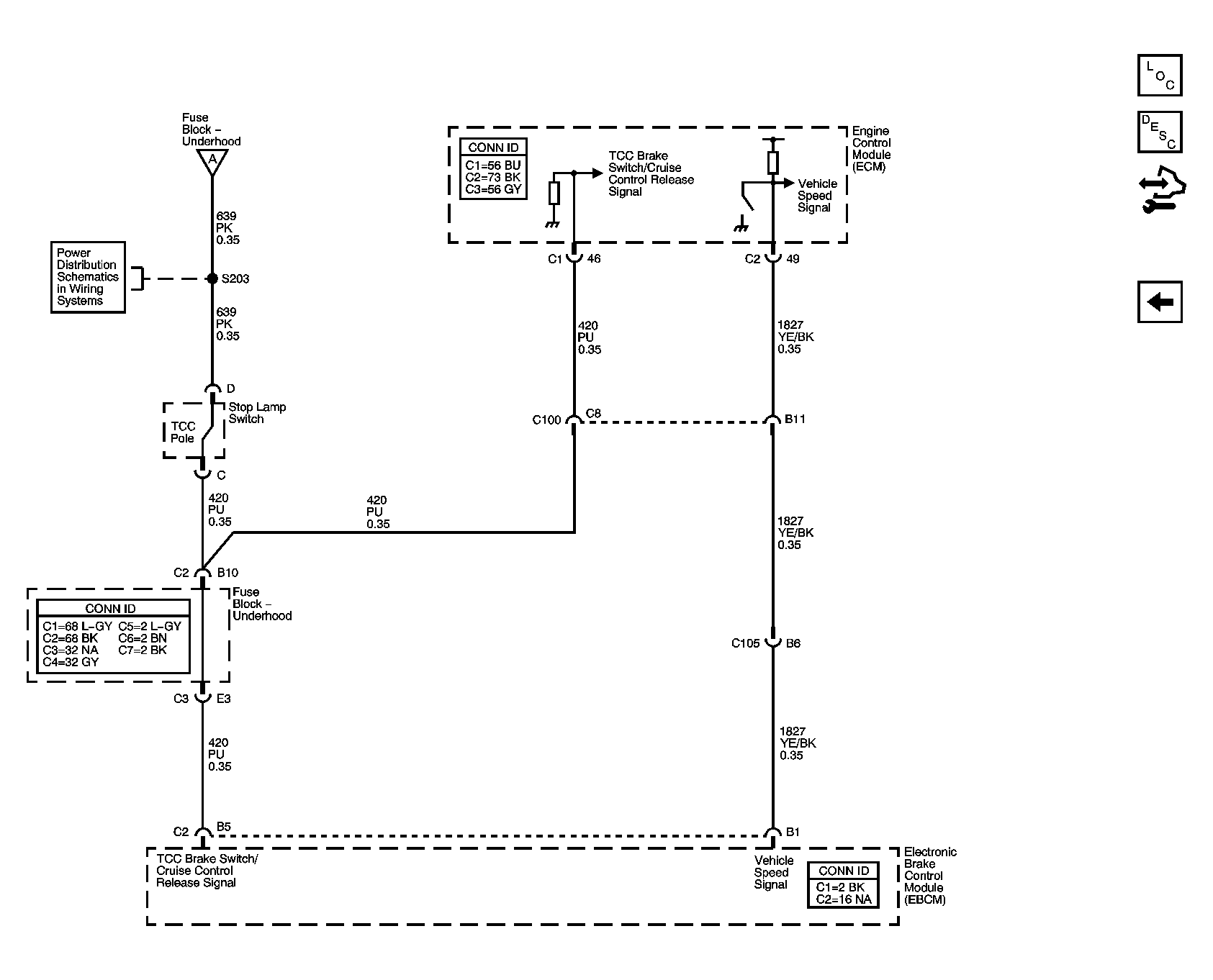

Fig 2: Stop Lamp Switch, EBCM and PCM
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
