Engine Controls Schematics (Non-European Emissions)

Fig 1: Module Power, Ground, Serial Data, Malfunction Indicator Lamp Schematic (MIL)

Courtesy of GENERAL MOTORS CORP.

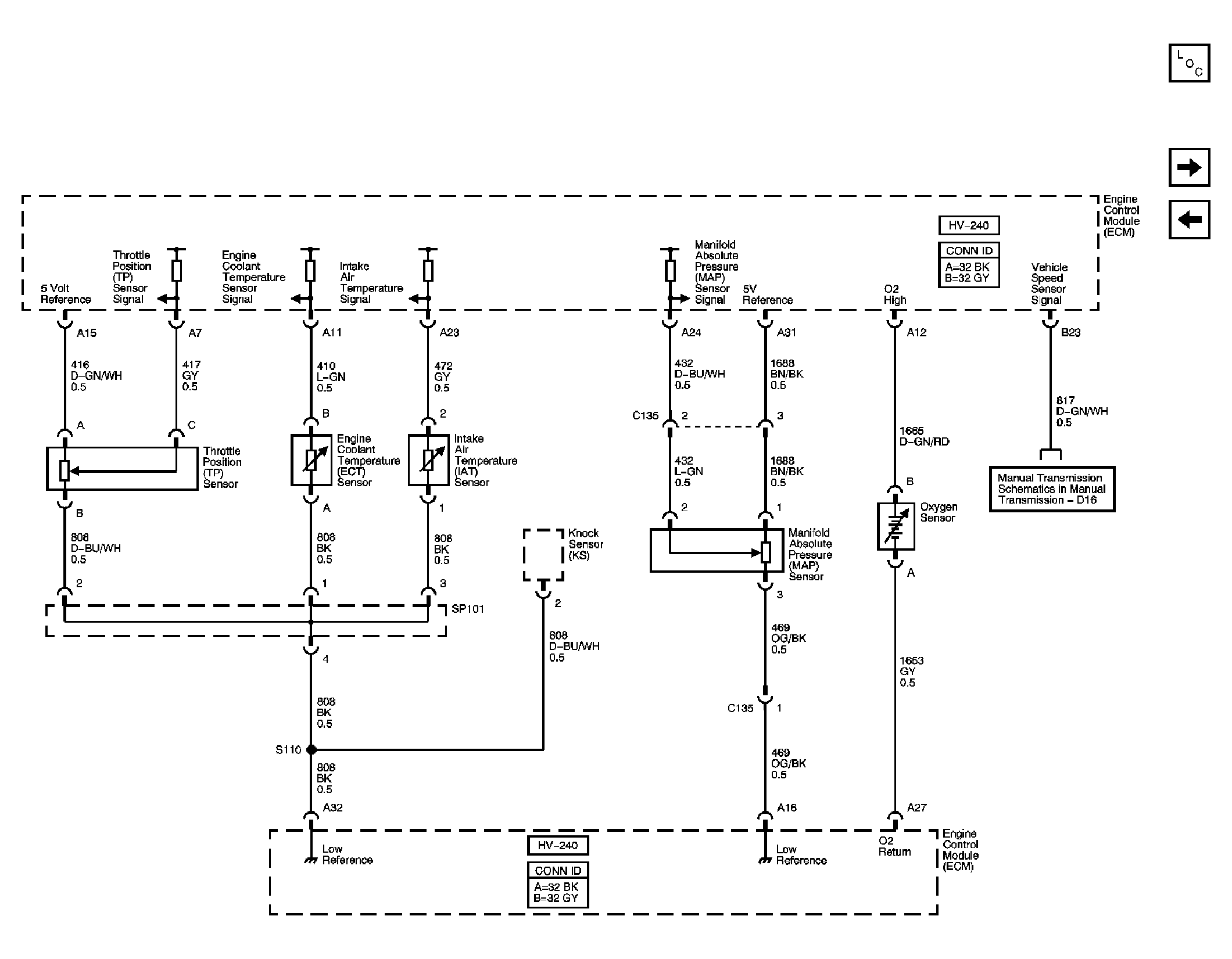

Fig 2: TP, ECT, IAT, MAP, Oxygen Sensors Schematic (O2S)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Ignition Controls Schematic - Ignition System

Courtesy of GENERAL MOTORS CORP.

Fig 4: Ignition Controls Schematic - Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 5: Fuel Controls Schematic - Fuel Pump Controls And Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

Fig 6: Device Controls Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
