Cruise Control Schematics
Cruise Control Schematics

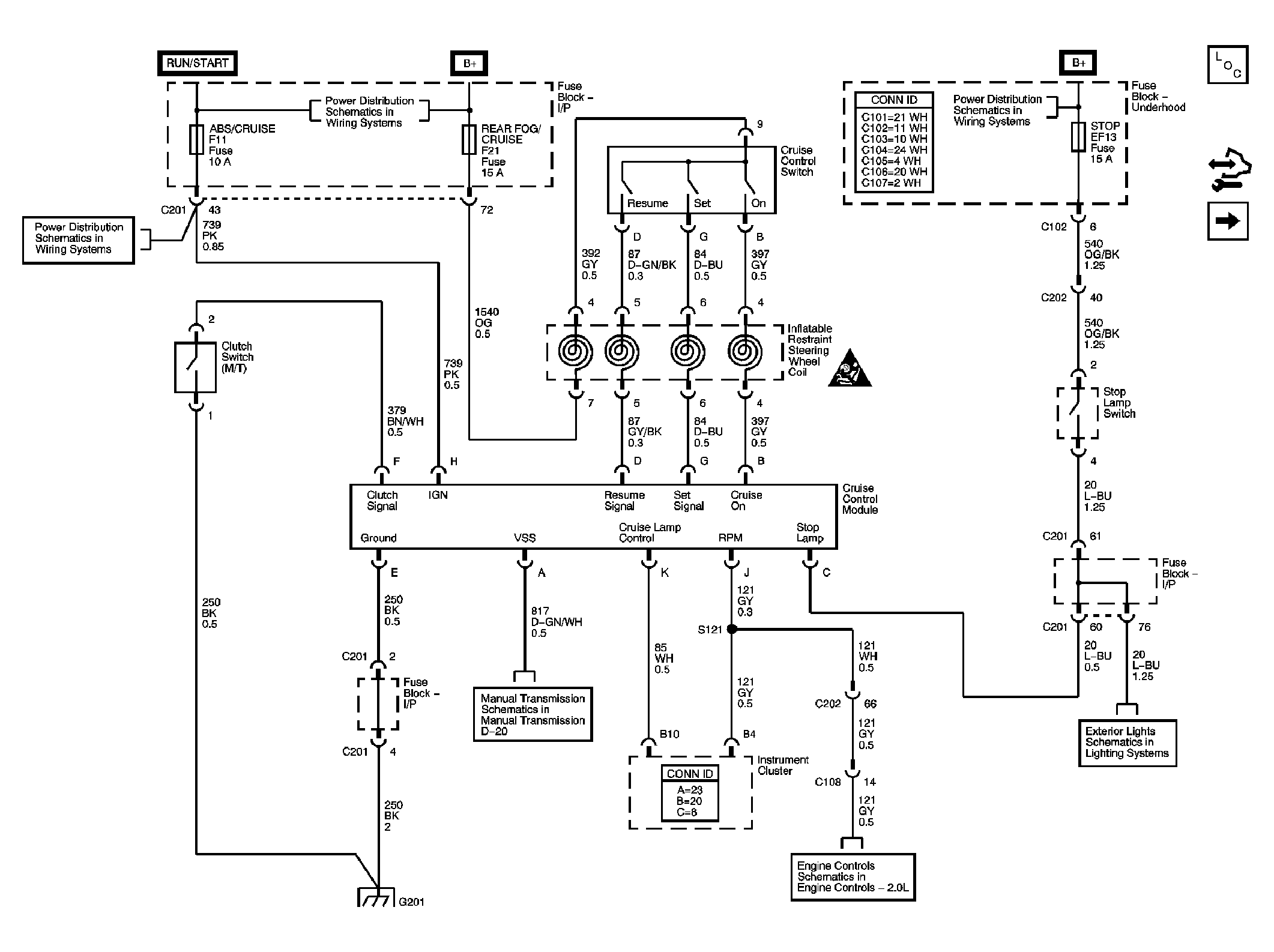

Fig 1: Manual Transmission Cruise Control Schematic
Courtesy of GENERAL MOTORS CORP.

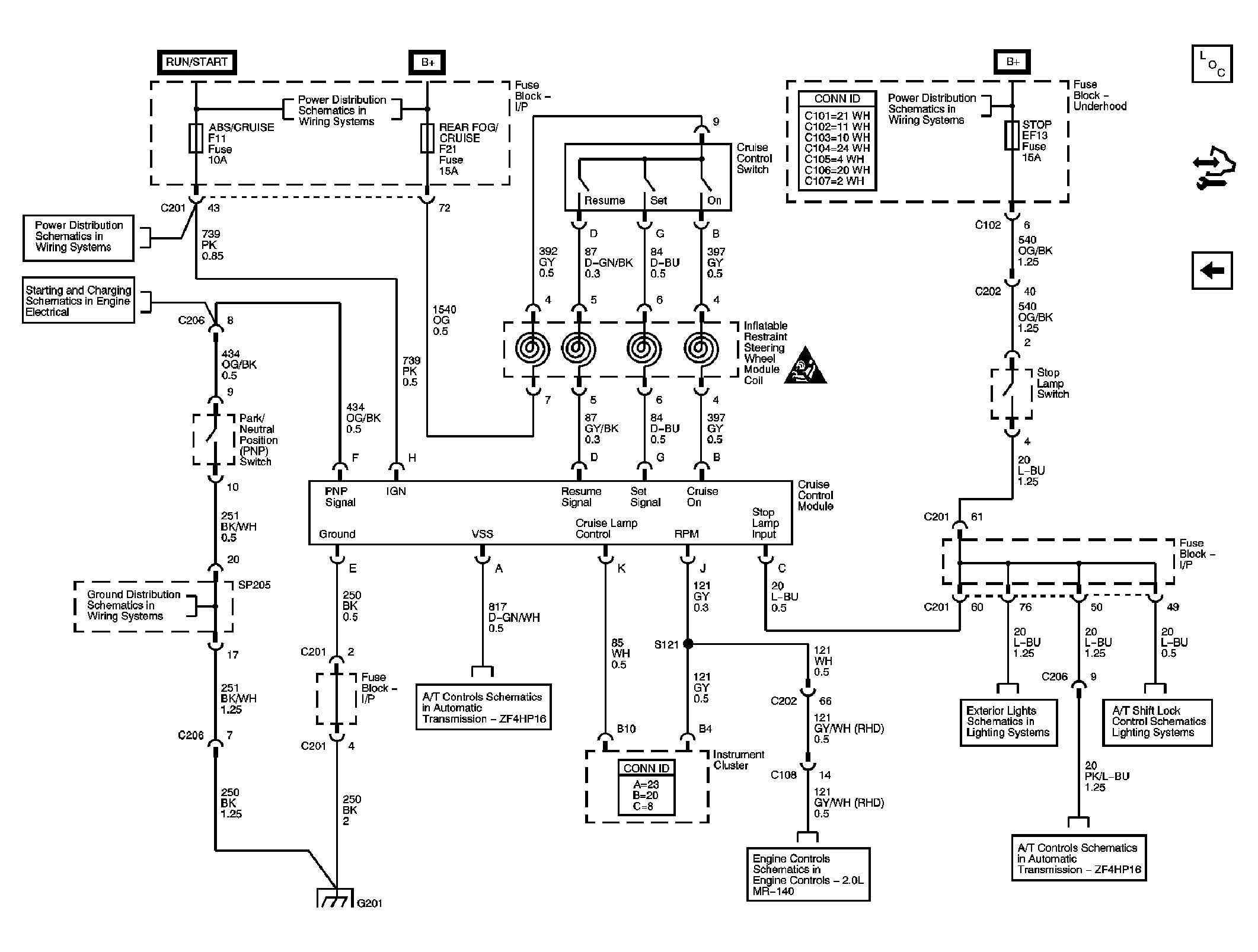

Fig 2: Automatic Transmission Cruise Control Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
