Park Lamp - LF

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

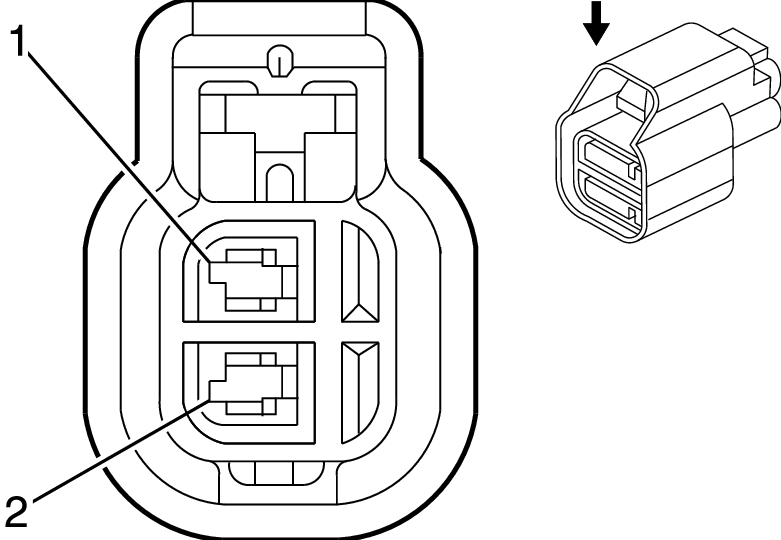

Fig 1: Park Lamp - LF Connector End View
GM1625659Courtesy of GENERAL MOTORS CORP.
Park Lamp - LF Connector Part Information

Connector Part Information
  • OEM: E-3550-000
  • Service: 89046838
  • Description: 2-Way F 1.5 Series, Sealed (BK)
Terminal Part Information
  • Terminal: Pin 1: 7116-4102-08/9

    Pin 2: 7116-4103-08/9

  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-2A (GY)
Park Lamp - LF Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 BN 9 Park Lamp Supply Voltage
2 BK 150 Ground
