Rear Auxiliary Turn Signal Lamp Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

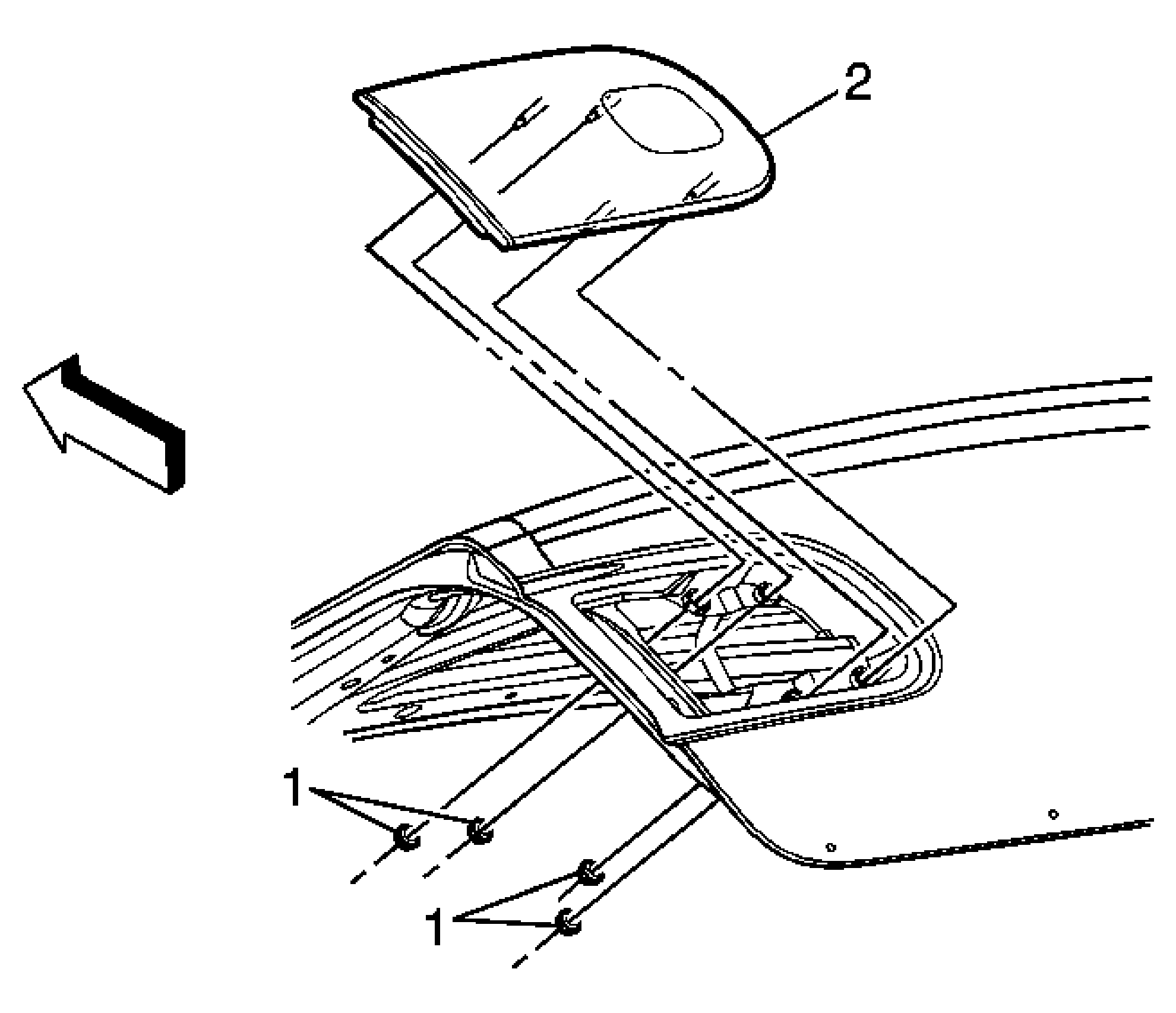

Fig 1: Identifying Rear Auxiliary Turn Signal Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Open the rear compartment lid in order to access the rear auxiliary tail lamp assembly nuts. Remove the rear compartment lid trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Rear Auxiliary Turn Signal Lamp Assembly Nuts (Qty: 4) Tighten: 10 N.m (89 lb in) Tip: Check to ensure the outer tail lamp bracket is secure.
2	Rear Auxiliary Turn Signal Lamp Assembly Tip Disconnect the electrical bulb socket for the auxiliary turn signal. Disconnect the electrical bulb socket for the back up lamp socket. Remove the rear auxiliary turn signal lamp assembly from the rear compartment lid.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Open the rear compartment lid in order to access the rear auxiliary tail lamp assembly nuts.
Remove the rear compartment lid trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .

Rear Auxiliary Turn Signal Lamp Assembly Nuts (Qty: 4)

Tighten: 10 N.m (89 lb in)

Tip: Check to ensure the outer tail lamp bracket is secure.

Rear Auxiliary Turn Signal Lamp Assembly

Tip

Disconnect the electrical bulb socket for the auxiliary turn signal.
Disconnect the electrical bulb socket for the back up lamp socket.
Remove the rear auxiliary turn signal lamp assembly from the rear compartment lid.
