Outside Mirror Schematics

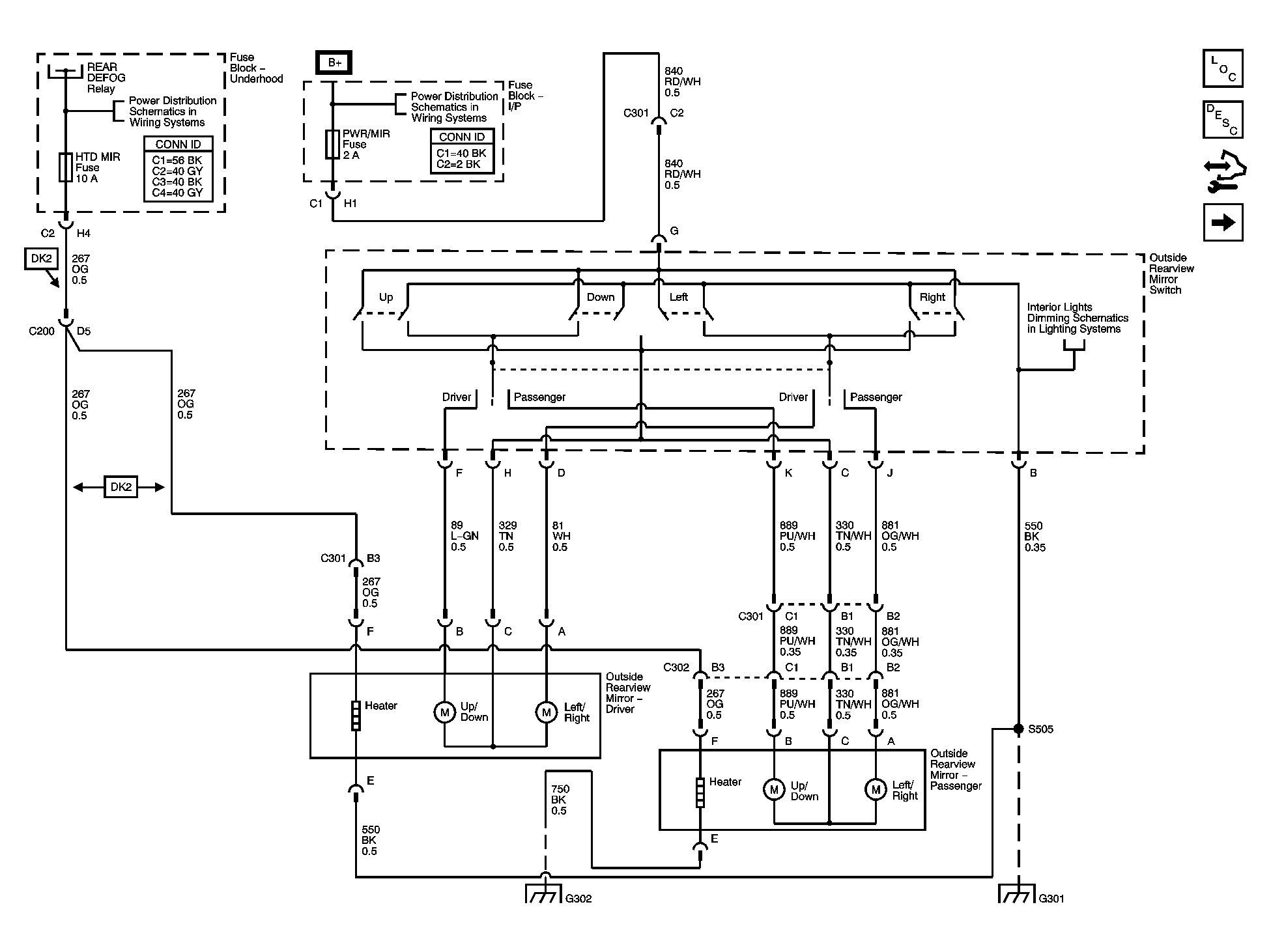

Fig 1: Coupe - Wiring Diagram

GM1657122

Courtesy of GENERAL MOTORS CORP.

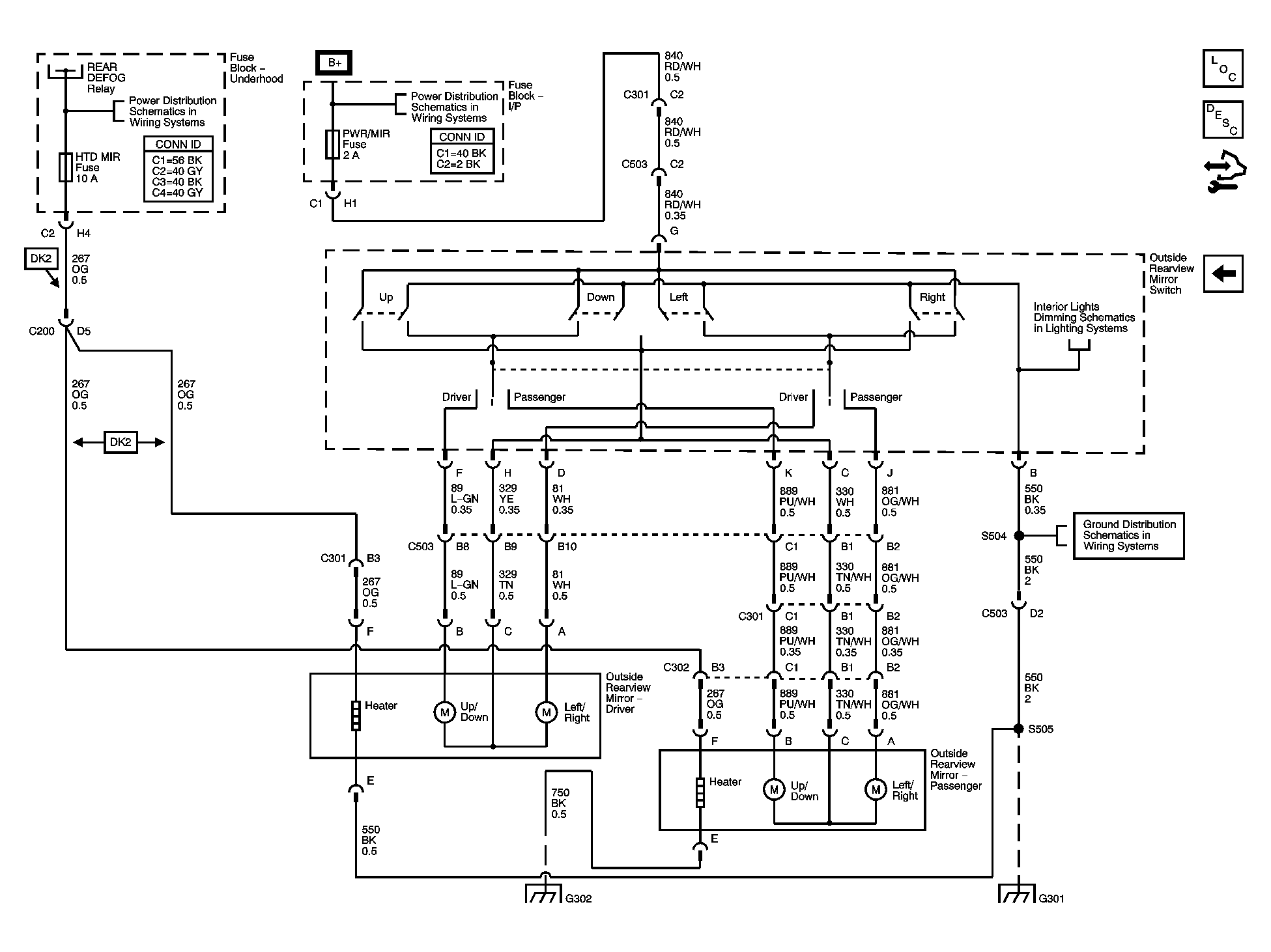

Fig 2: Sedan - Wiring Diagram

GM1657123

Courtesy of GENERAL MOTORS CORP.
