Rear Door Window Regulator Motor Replacement

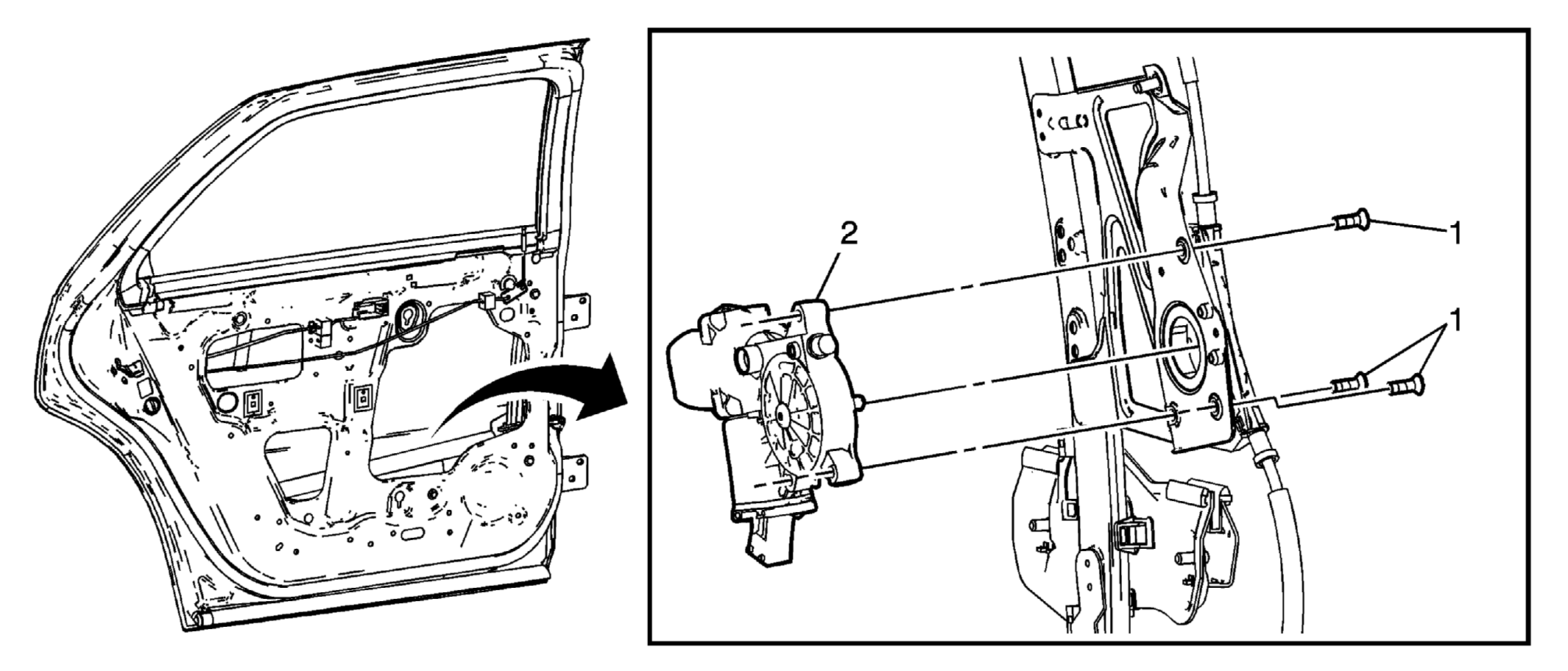

Fig 1: Replacing Rear Door Window Regulator Motor

Courtesy of GENERAL MOTORS CORP.

Window Regulator Motor Replacement - Rear Door

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Position the rear door window approximately half way down in the door. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door (Impala) . Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door (Impala) . Tape the window to the door frame to prevent it from moving. Remove the rear door window regulator. Refer to Window Regulator Replacement - Rear Door .
1	Screw, Rear Door Window Regulator Motor (Qty: 3) Tighten: 4.6 N.m (41 lb in)
2	Motor, Rear Door Window Regulator Tip: Disconnect the electrical connector from the window regulator motor.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Position the rear door window approximately half way down in the door.
Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door (Impala) .
Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door (Impala) .
Tape the window to the door frame to prevent it from moving.
Remove the rear door window regulator. Refer to Window Regulator Replacement - Rear Door .

Screw, Rear Door Window Regulator Motor (Qty: 3)

Tighten: 4.6 N.m (41 lb in)

Motor, Rear Door Window Regulator
Tip: Disconnect the electrical connector from the window regulator motor.
