Power Door Lock Switch Replacement (Impala)

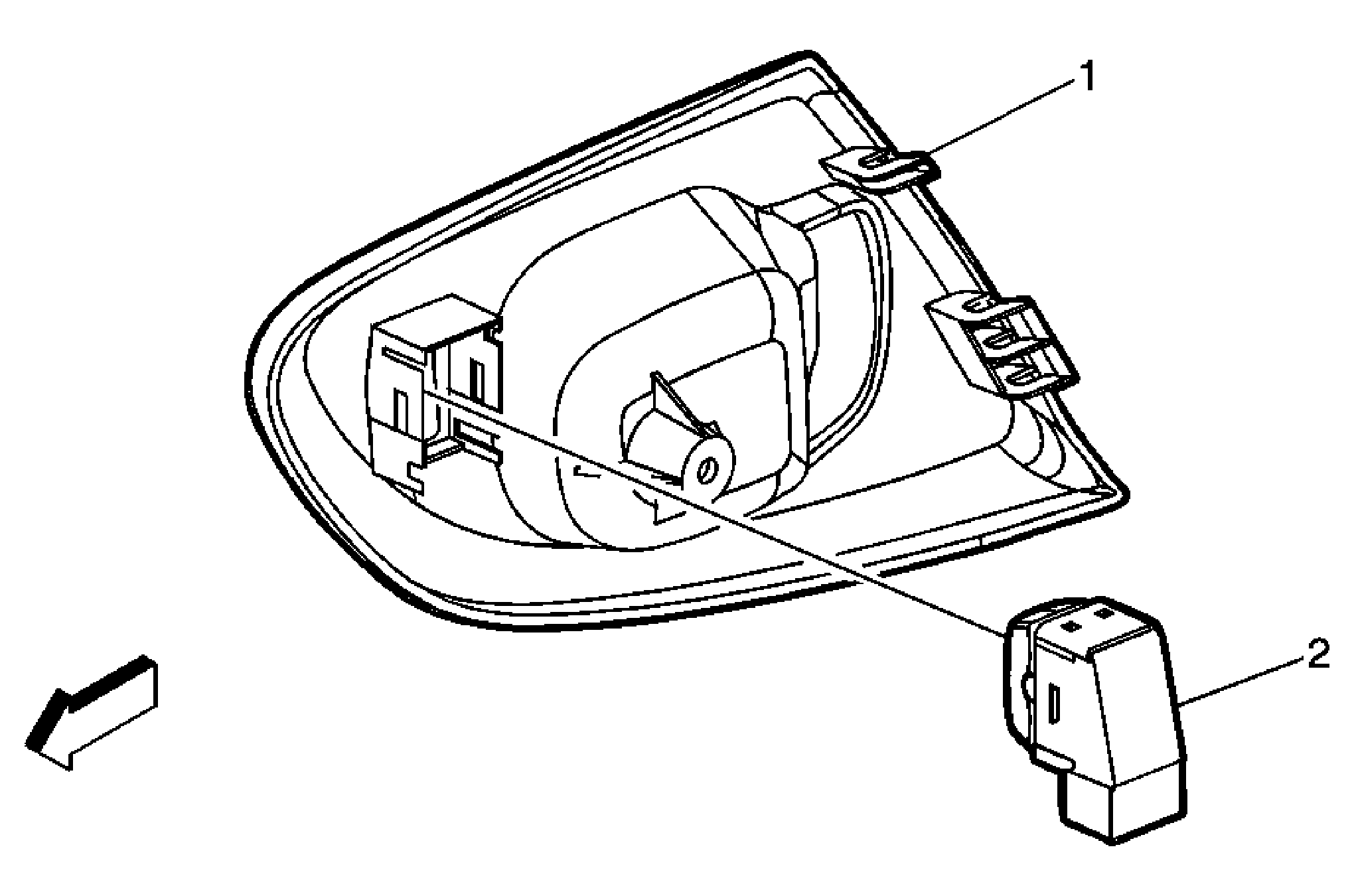

Fig 1: Replacing Power Door Lock Switch

Courtesy of GENERAL MOTORS CORP.

Power Door Lock Switch Replacement (Impala)

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Front Door Inside Handle Bezel Refer to Handle Bezel Replacement - Inside - Front (Impala)  or Handle Bezel Replacement - Inside - Front (Monte Carlo) .
2	Front Side Door Lock Switch Assembly Tip:  Disconnect the electrical connector and remove from the back side of the door trim panel.
