Left Front Power Window Switch Replacement - (Monte Carlo)

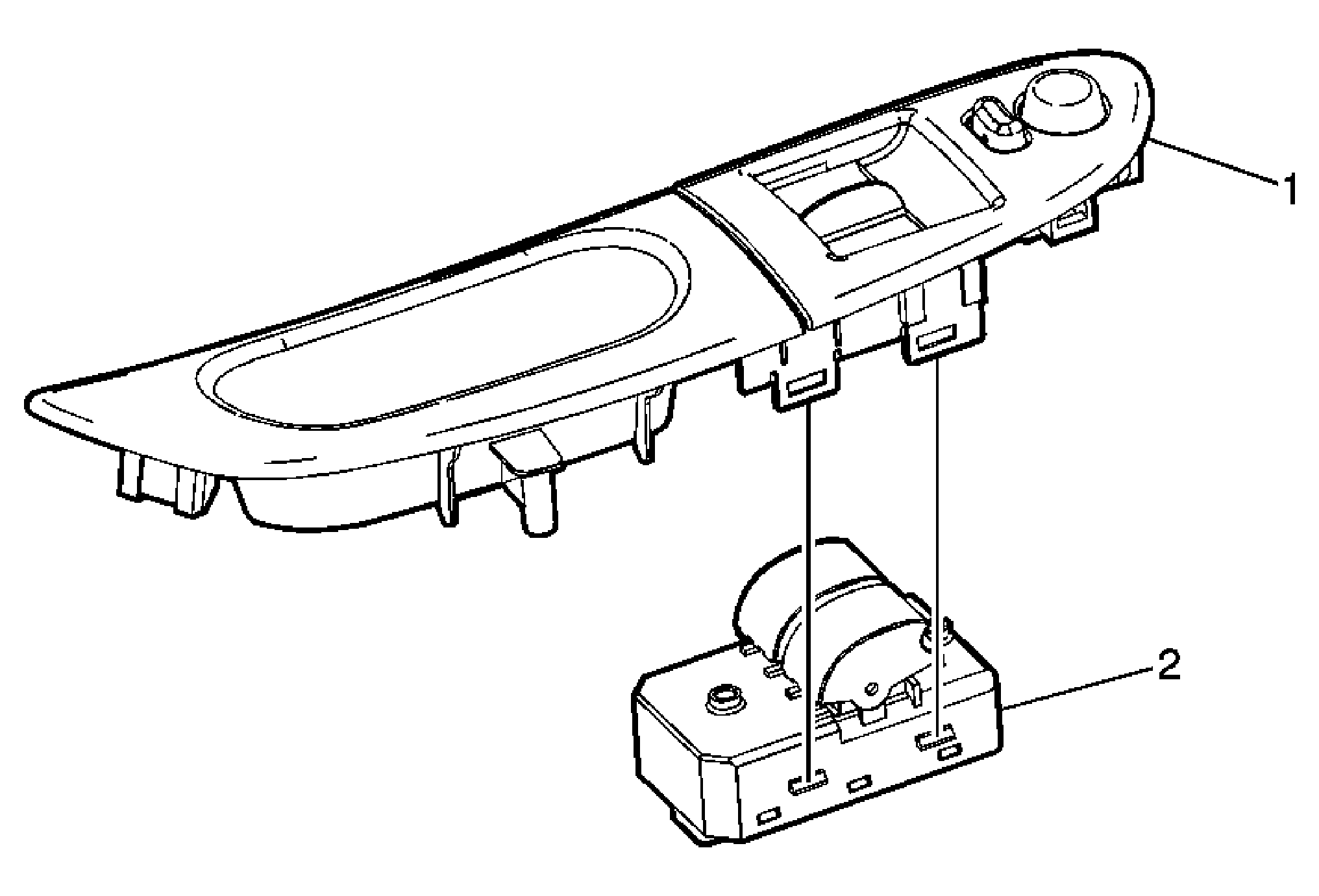

Fig 1: Replacing Left Front Power Window Switch
GM1644674Courtesy of GENERAL MOTORS CORP.
Power Window Switch Replacement - Left Front (Monte Carlo)

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Front Side Door Armrest Switch Plate
Tip:
  1. Pull up to disengage the retainers.
  2. Disconnect the electrical connectors.
2 Side Window Switch Assembly
