WARNING: This page is about a different car, the 2007 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

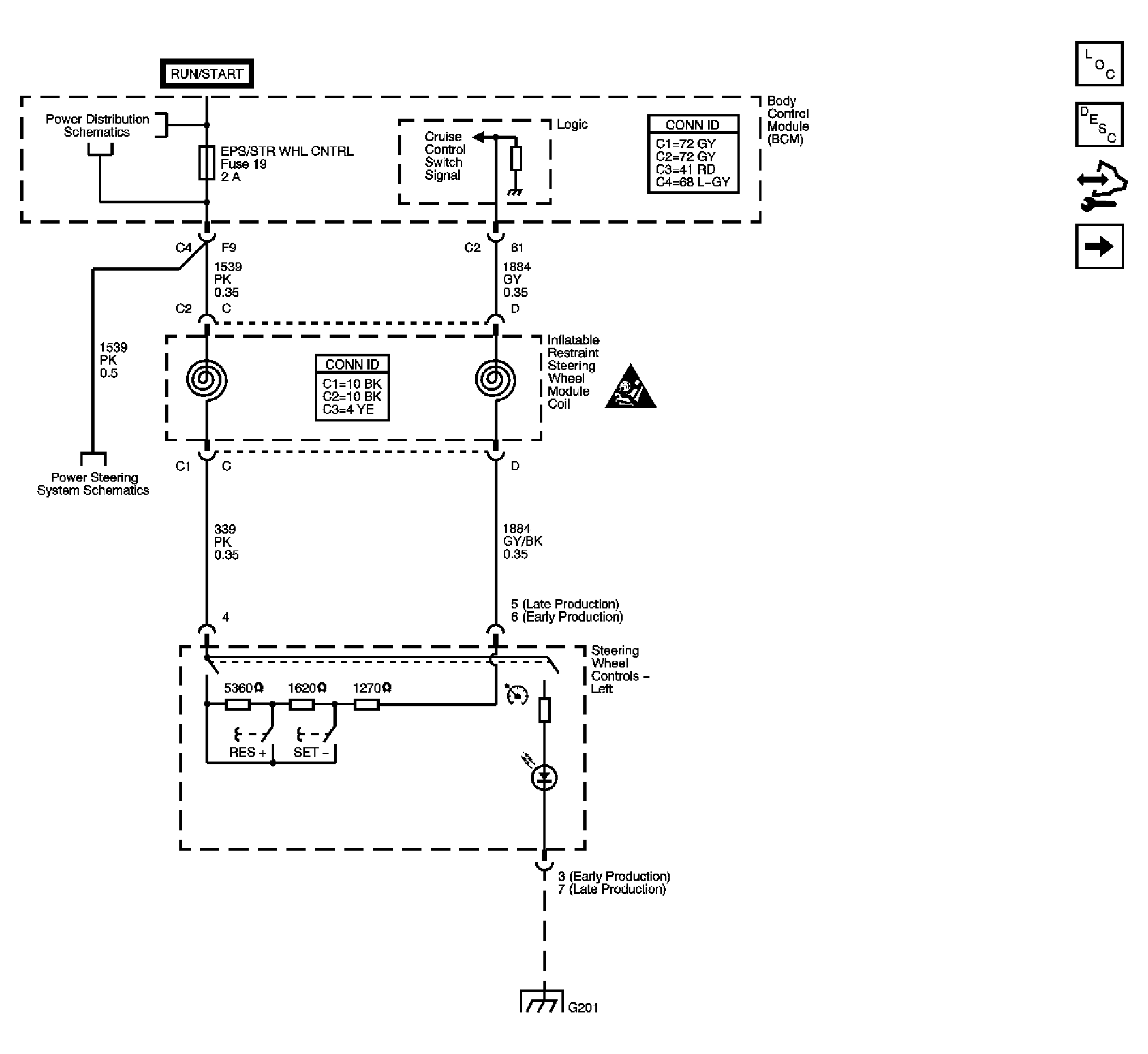

Fig 1: Power, Ground, and Switches
Courtesy of GENERAL MOTORS CORP.

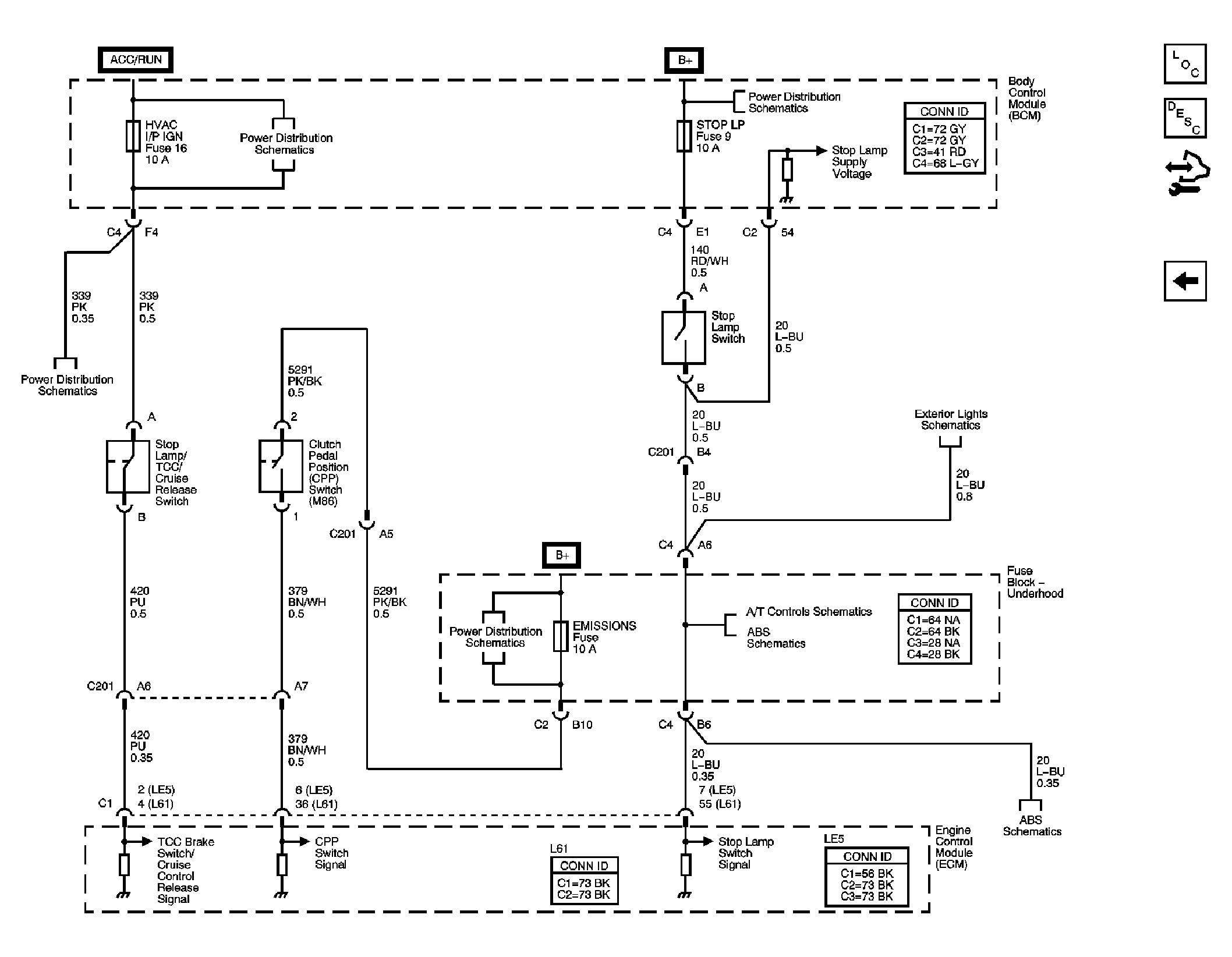

Fig 2: Clutch Pedal Position Switch and Stop Lamp Switch
