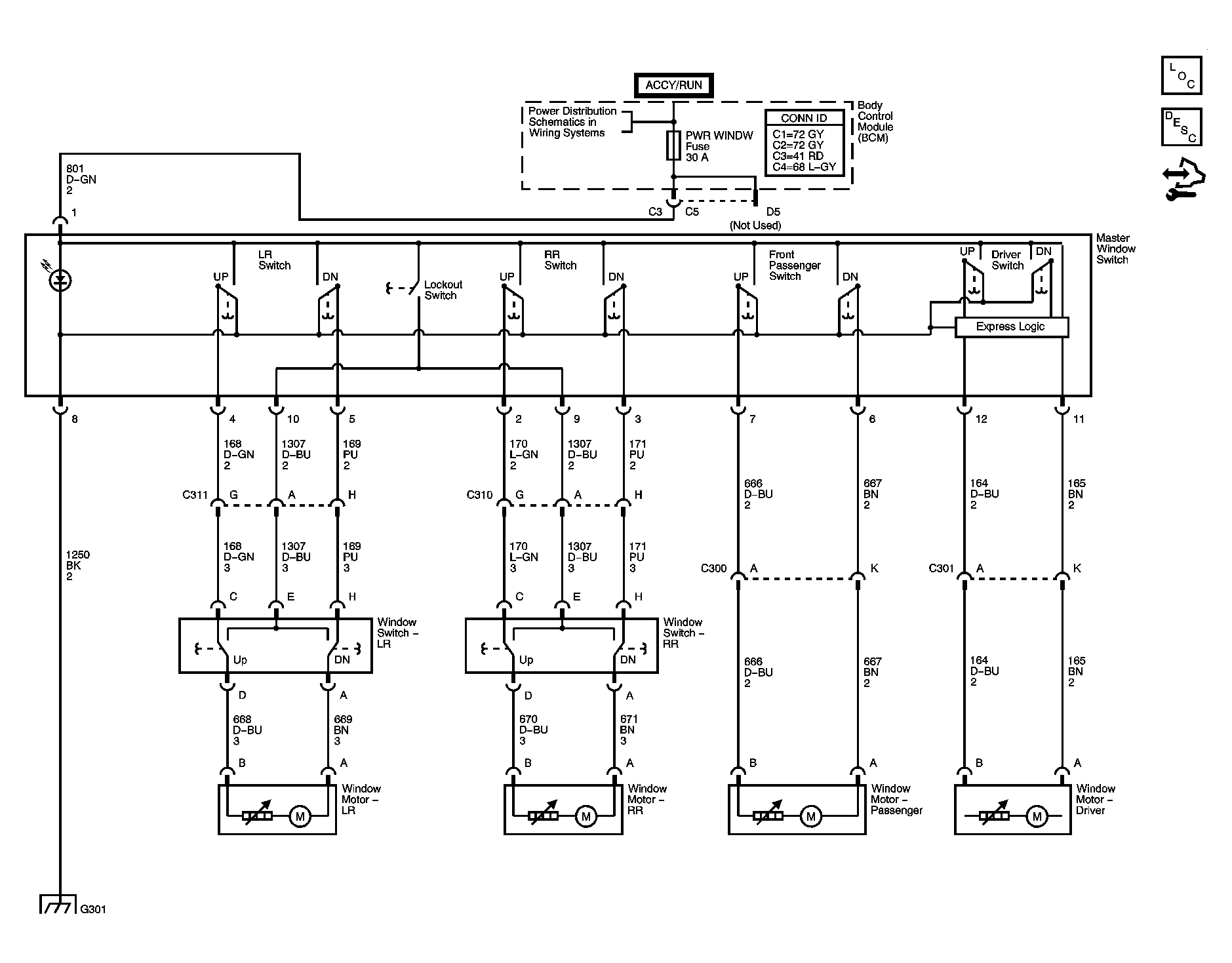

Home >> Chevrolet >> 2006 >> HHR LS, Standard >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Schematic and Routing Diagrams >> Power Window Schematics
