Outside Mirror Schematics

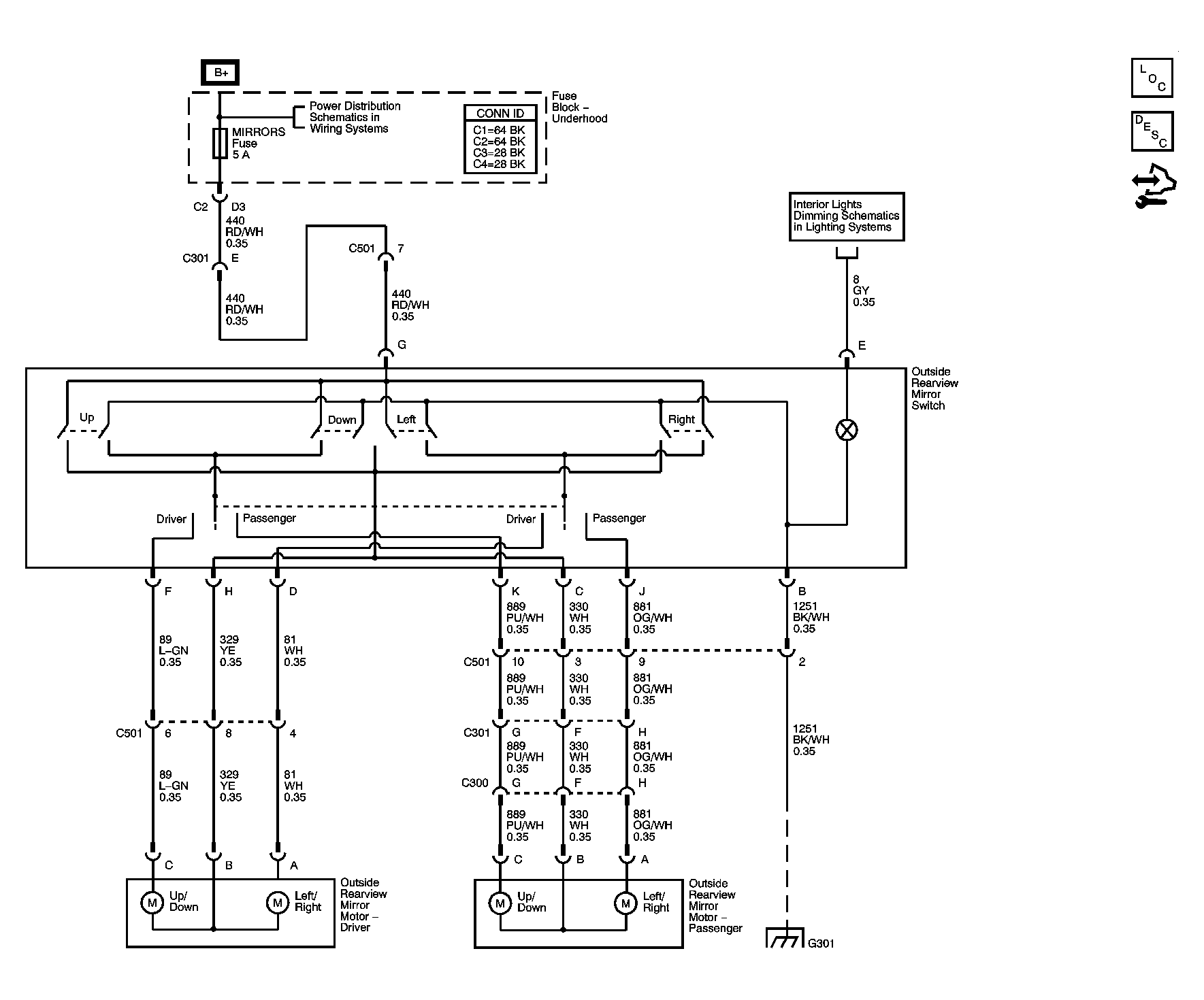

Fig 1: Outside Rearview Mirrors

GM1570218

Courtesy of GENERAL MOTORS CORP.
