Window Channel Replacement - Rear Door Front

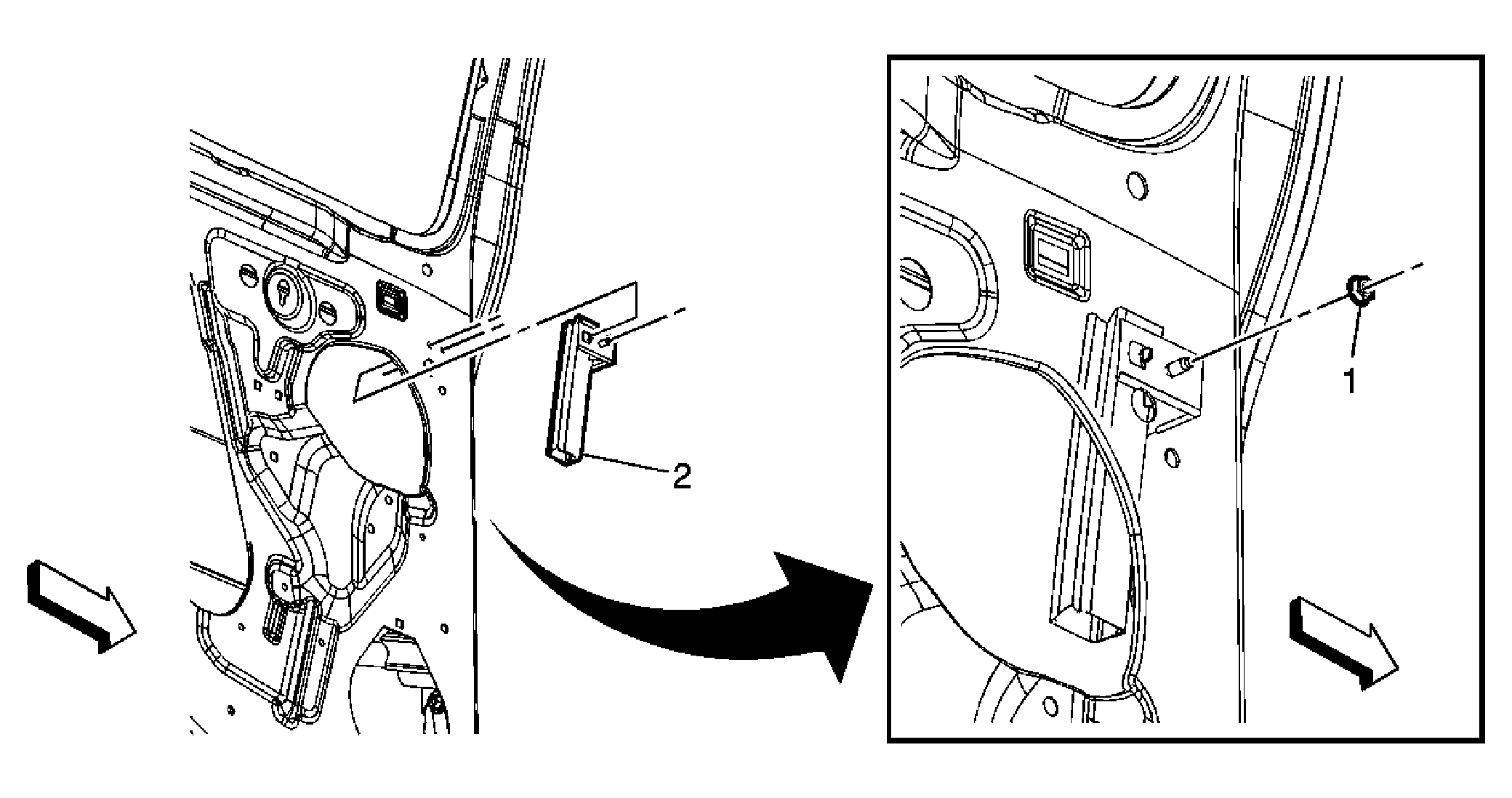

Fig 1: Window Channel Replacement - Rear Door Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door . Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
1	Nut, Rear Side Door Stationary Window Tighten: 10 N.m (89 lb in)
2	Channel, Rear Side Door Window Front

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .

Nut, Rear Side Door Stationary Window

Tighten: 10 N.m (89 lb in)

Channel, Rear Side Door Window Front
