Hinge Replacement - Front Door
Hinge Replacement - Front Door

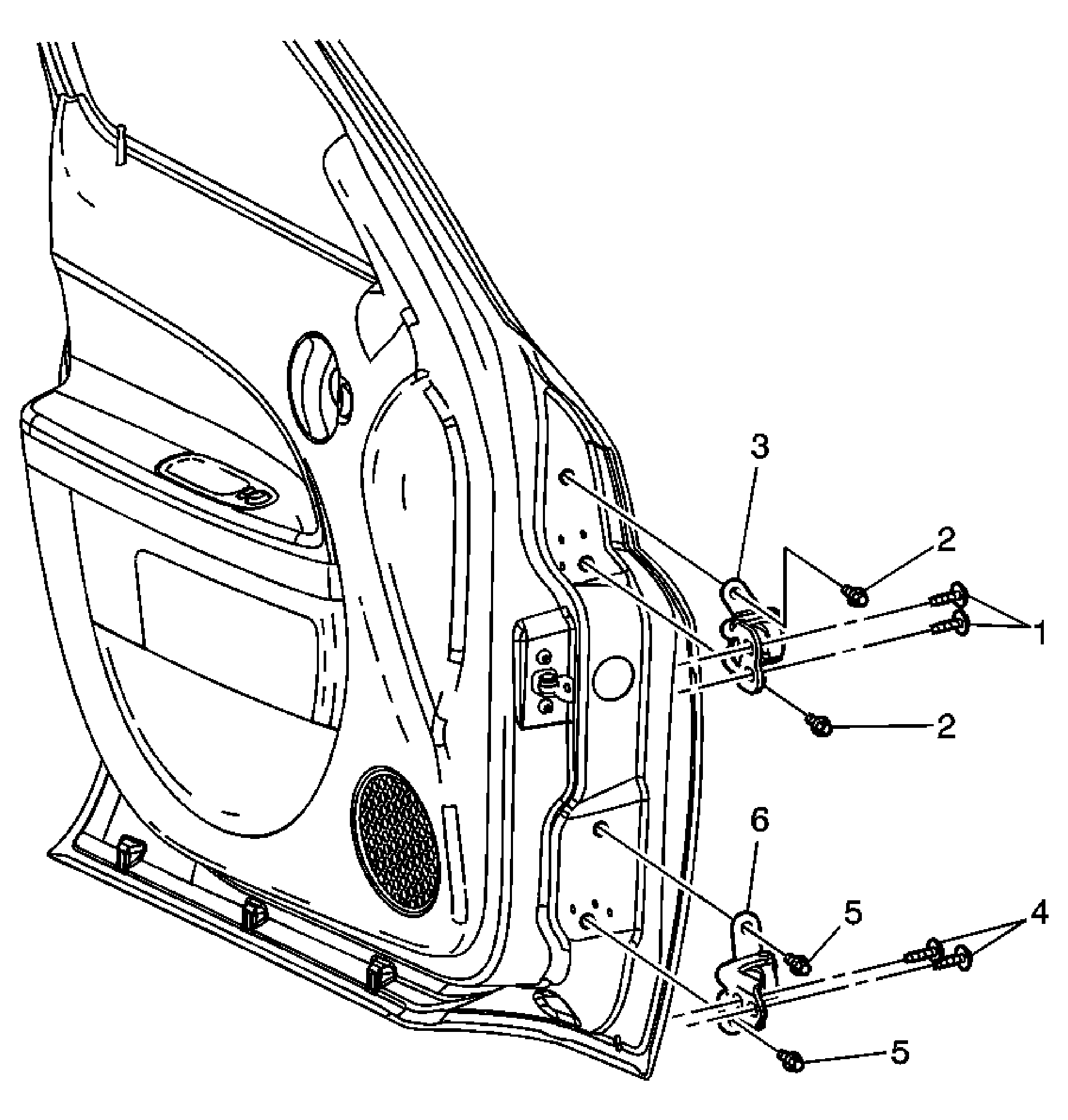

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| Front Side Door Upper Hinge Assembly Replacement
IMPORTANT:
Replace only one hinge at a time.
|
|
| 1 | Bolt, Front Side Door Hinge Upper (Qty: 2) Tighten: 35 N.m (26 lb ft) |
| 2 | Bolt, Front Side Door Hinge Upper (Qty: 2) Tighten: 25 N.m (18 lb ft) |
| 3 | Hinge Assembly, Front Side Door Upper
NOTE:
Striker alignment is a crucial part of door latch operation. Do not use the door striker to adjust the door to the vehicle. Failure to properly adjust the striker can result in damage to the door latch and the striker. Tip: Check the door for proper alignment, adjust as necessary. |
| Front Side Door Lower Hinge Assembly Replacement
IMPORTANT:
Replace only one hinge at a time.
|
|
| 4 | Bolt, Front Side Door Hinge Lower (Qty: 2) Tighten: 35 N.m (26 lb ft) |
| 5 | Bolt, Front Side Door Hinge Lower (Qty: 2) Tighten: 25 N.m (18 lb ft) |
| 6 | Hinge Assembly, Front Side Door Lower
NOTE:
Striker alignment is a crucial part of door latch operation. Do not use the door striker to adjust the door to the vehicle. Failure to properly adjust the striker can result in damage to the door latch and the striker. Tip: Check the door for proper alignment, adjust as necessary. |
