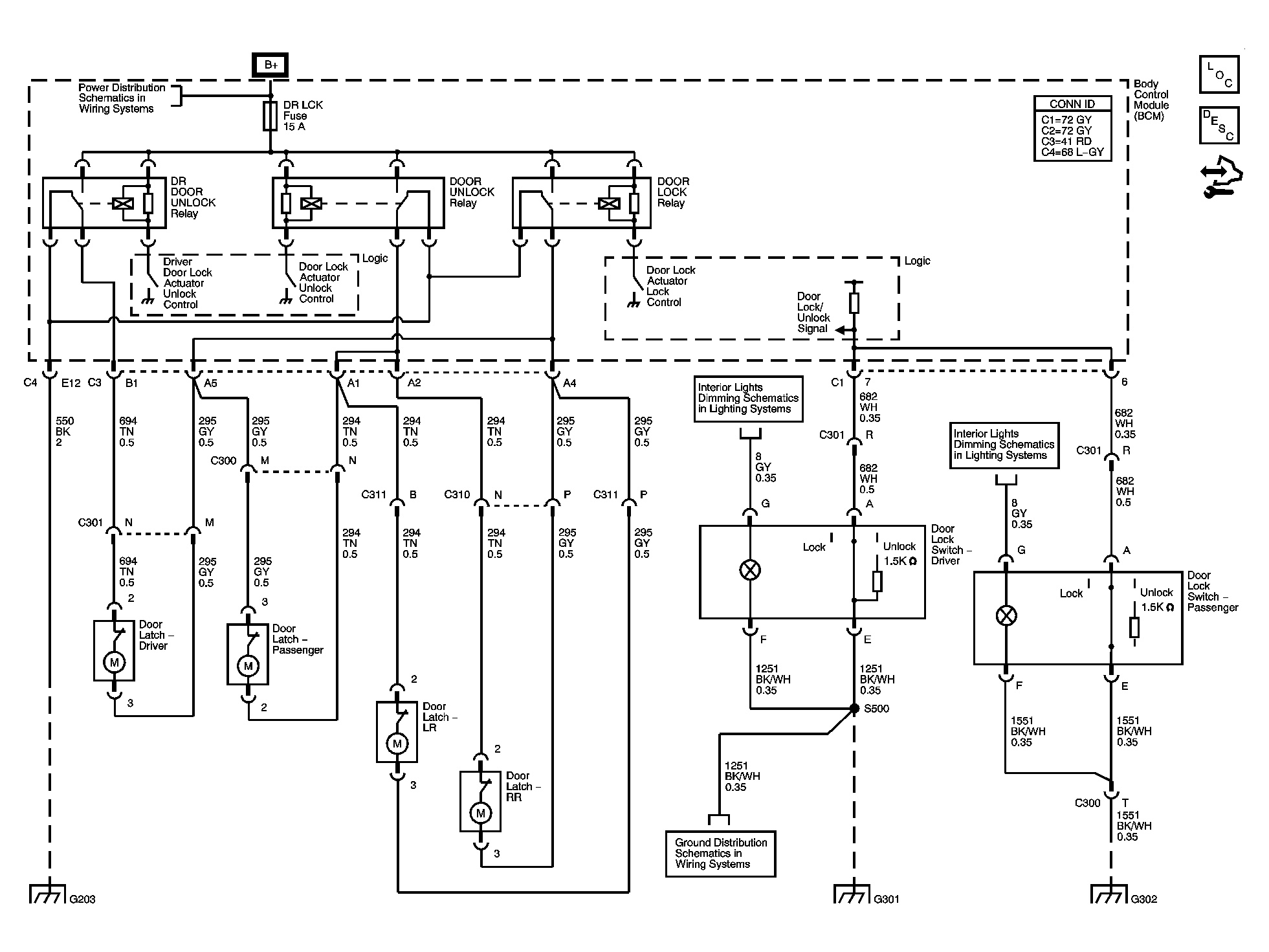

Home >> Chevrolet >> 2006 >> HHR LS, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Schematic and Routing Diagrams >> Door Lock/Indicator Schematics
