Removal Procedure

CAUTION: Refer to Battery Disconnect Caution .

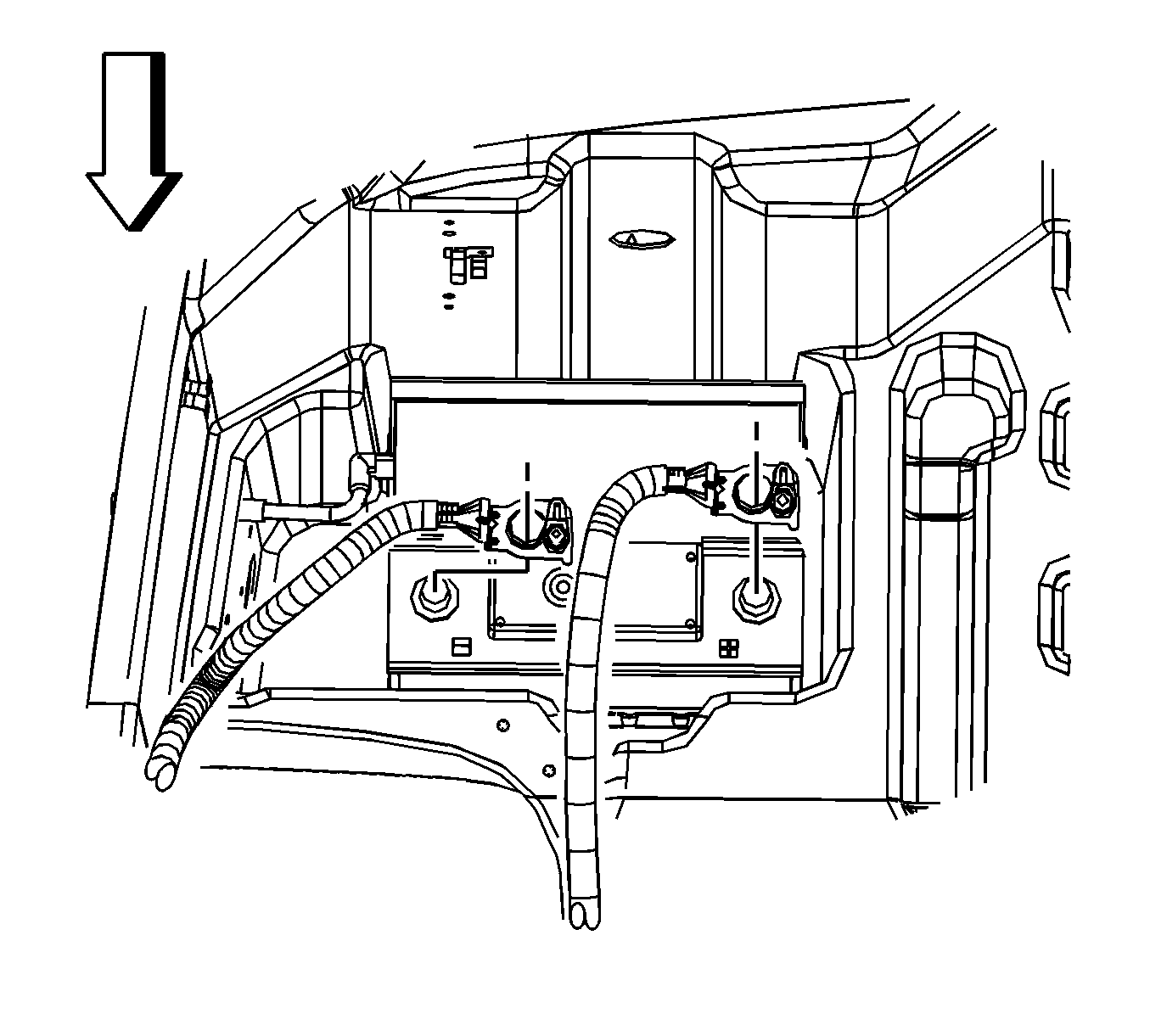

    Fig 1: Disconnecting The Negative Battery Cable
    GM1672575Courtesy of GENERAL MOTORS CORP.
  1. Remove the drive belt. Refer to Drive Belt Replacement - Accessory .
  2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (7.0L)  or Battery Negative Cable Disconnect/Connect Procedure (6.0L) .
    3. Fig 2: Engine Wiring Harness Generator Lead Nut & Generator Electrical Connector
    GM651874Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the generator electrical connector (1 and 2).
  4. Remove the battery feed terminal nut (3) from the generator.
  5. Remove the battery feed cable.
    6. Fig 3: Generator Bolts & Generator
    GM74067Courtesy of GENERAL MOTORS CORP.
  6. Remove the generator mounting bolts.
  7. Remove the generator.
