Removal Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to Seat Replacement in Seats.

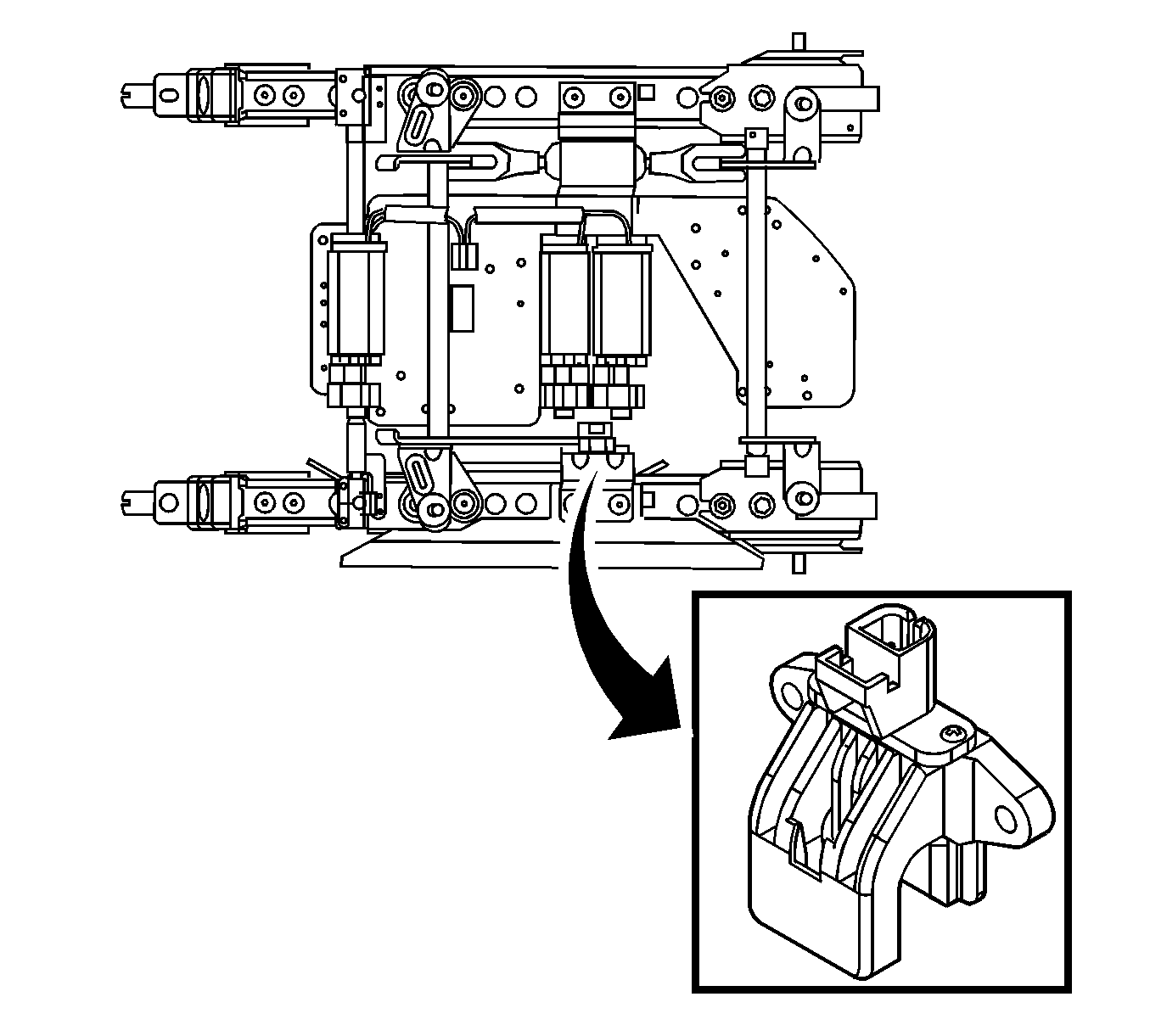

    2. Fig 1: Identifying Seat Position Sensor
    GM1276195Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector from the seat position sensor.
    3. Fig 2: Seat Adjuster Track Bracket
    GM833594Courtesy of GENERAL MOTORS CORP.
    CAUTION: Eye protection must be worn when drilling rivets to reduce the chance of personal injury.
  3. Drill out the rivets that retain the position sensor (1) to the seat adjuster track bracket.
  4. Remove the position sensor from the seat adjuster track bracket.
