Power Window Schematics

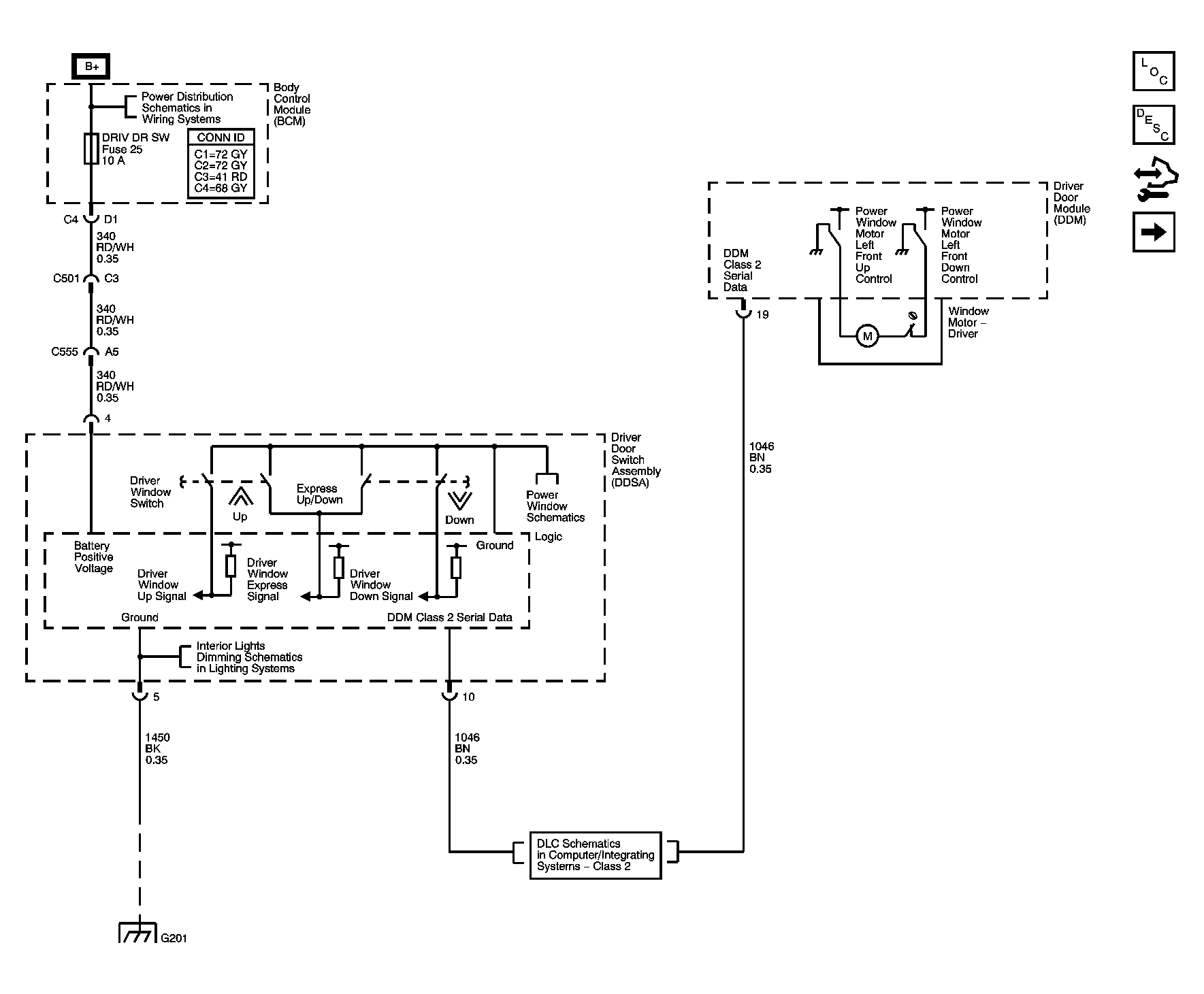

Fig 1: Driver - Wiring Diagram

GM1408966

Courtesy of GENERAL MOTORS CORP.

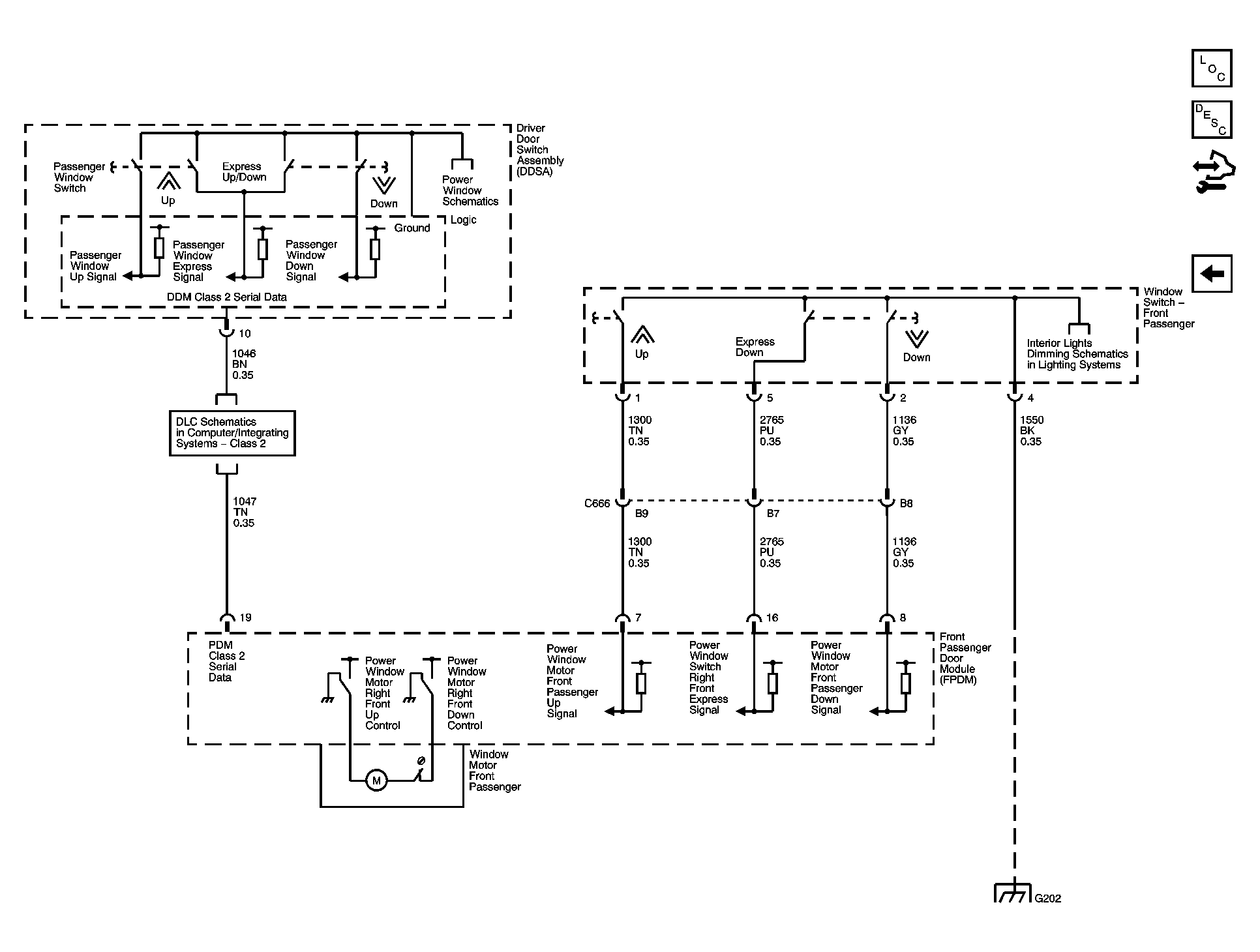

Fig 2: Passenger - Wiring Diagram

GM1408972

Courtesy of GENERAL MOTORS CORP.
