Ignition Control - Ignition System Schematics

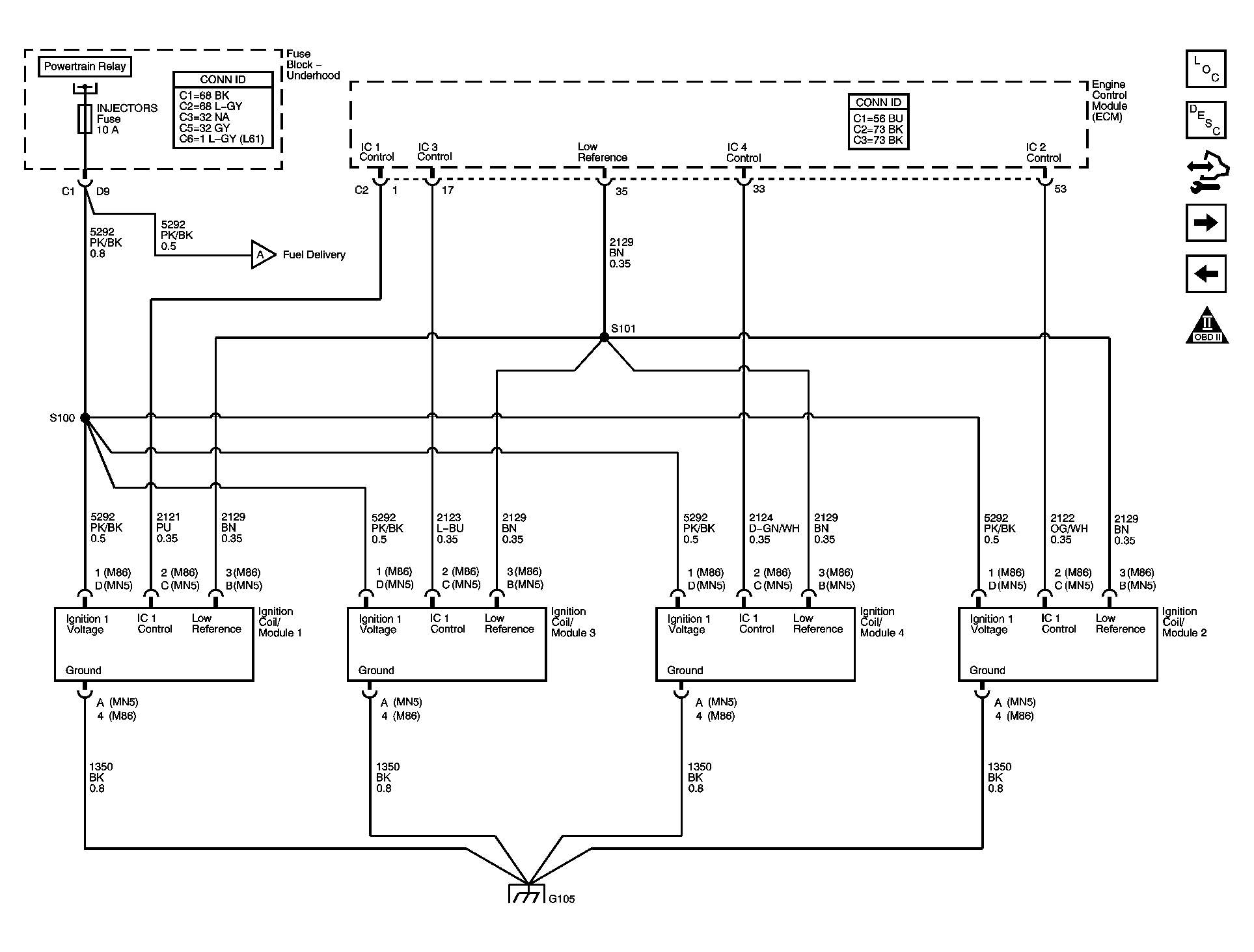

Fig 1: Ignition Control - Ignition System Schematics

GM1575983

Courtesy of GENERAL MOTORS CORP.
