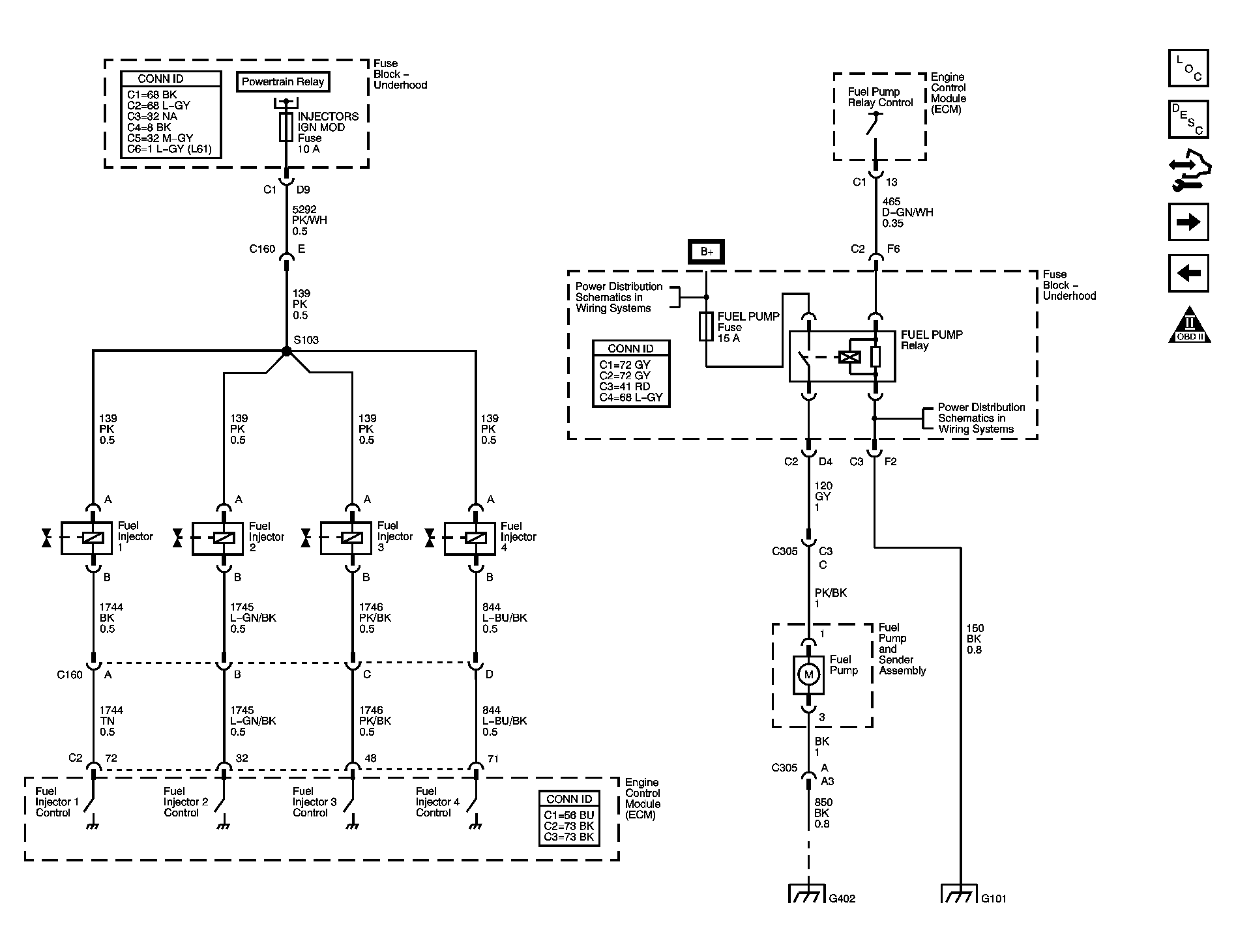

Home >> Chevrolet >> 2006 >> Cobalt SS, 4D Sedan, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - 2.4L - Introduction (2 Of 2) >> Schematic and Routing Diagrams >> Engine Controls Schematics >> Fuel Controls Schematics
