Fuel Controls - EVAP Controls Schematics

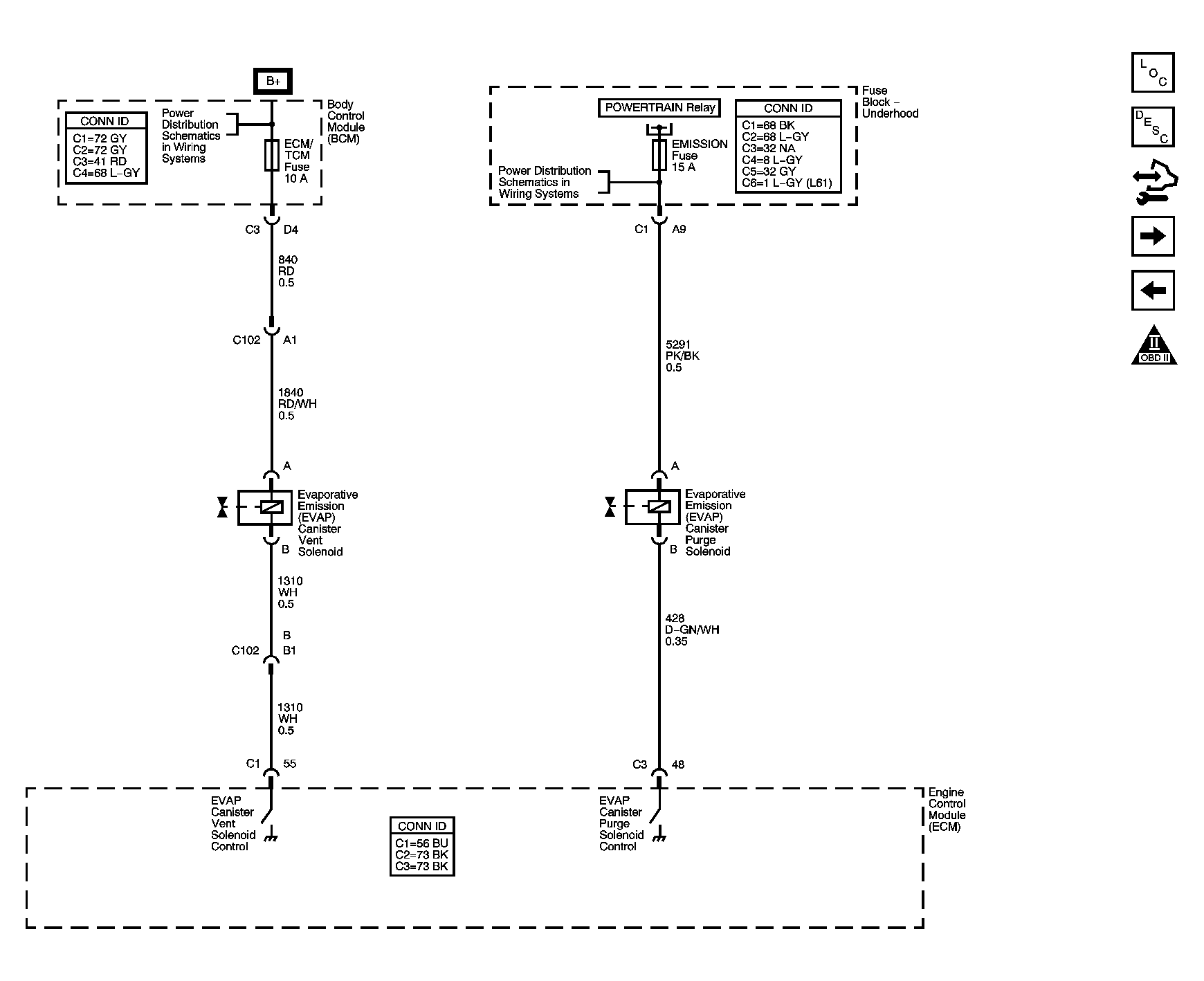

Fig 1: Fuel Controls - EVAP Controls Schematics

GM1575988

Courtesy of GENERAL MOTORS CORP.
