Engine Controls Schematics

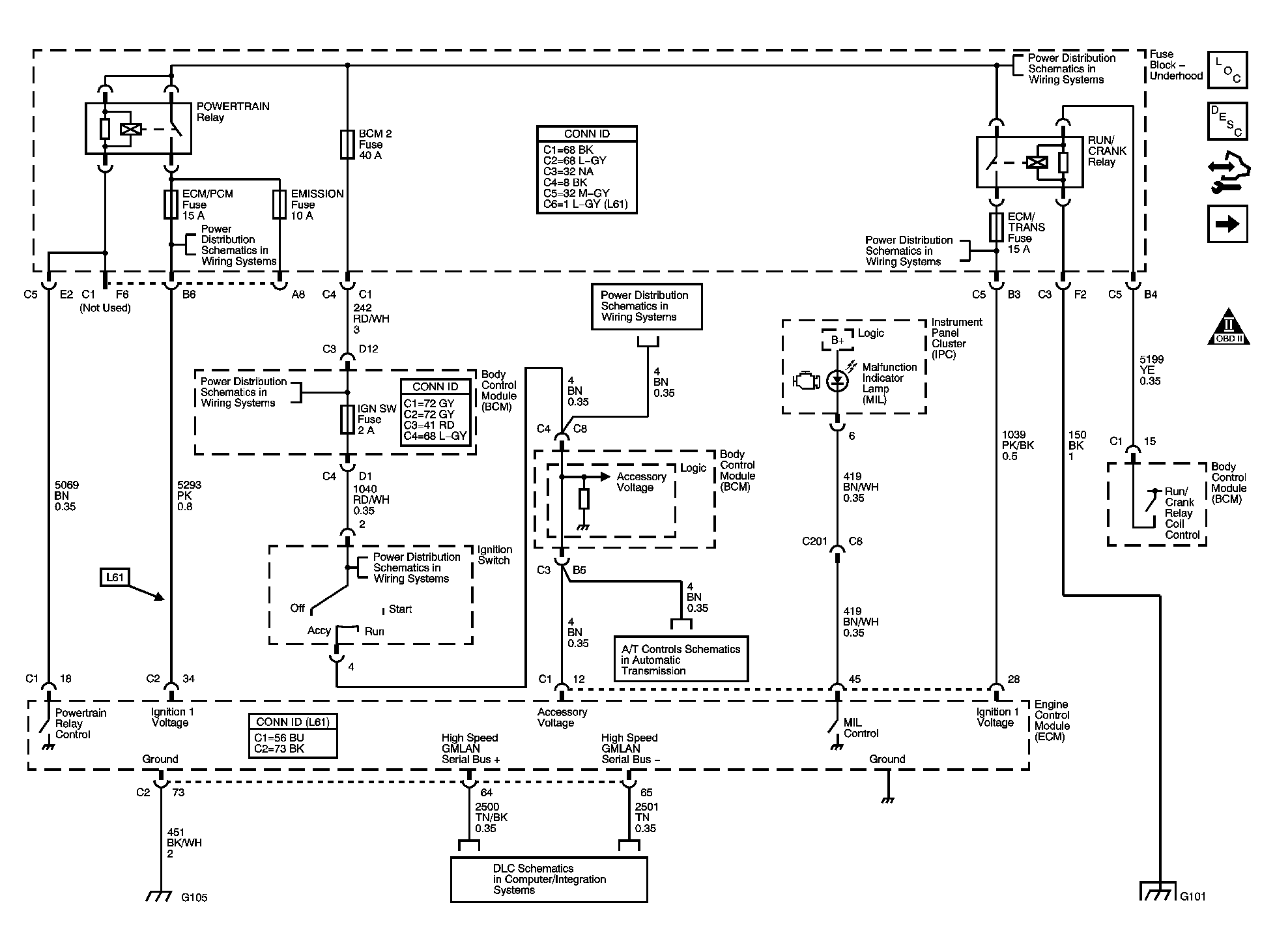

Fig 1: Power, Ground, MIL, and DLC Schematic

Courtesy of GENERAL MOTORS CORP.

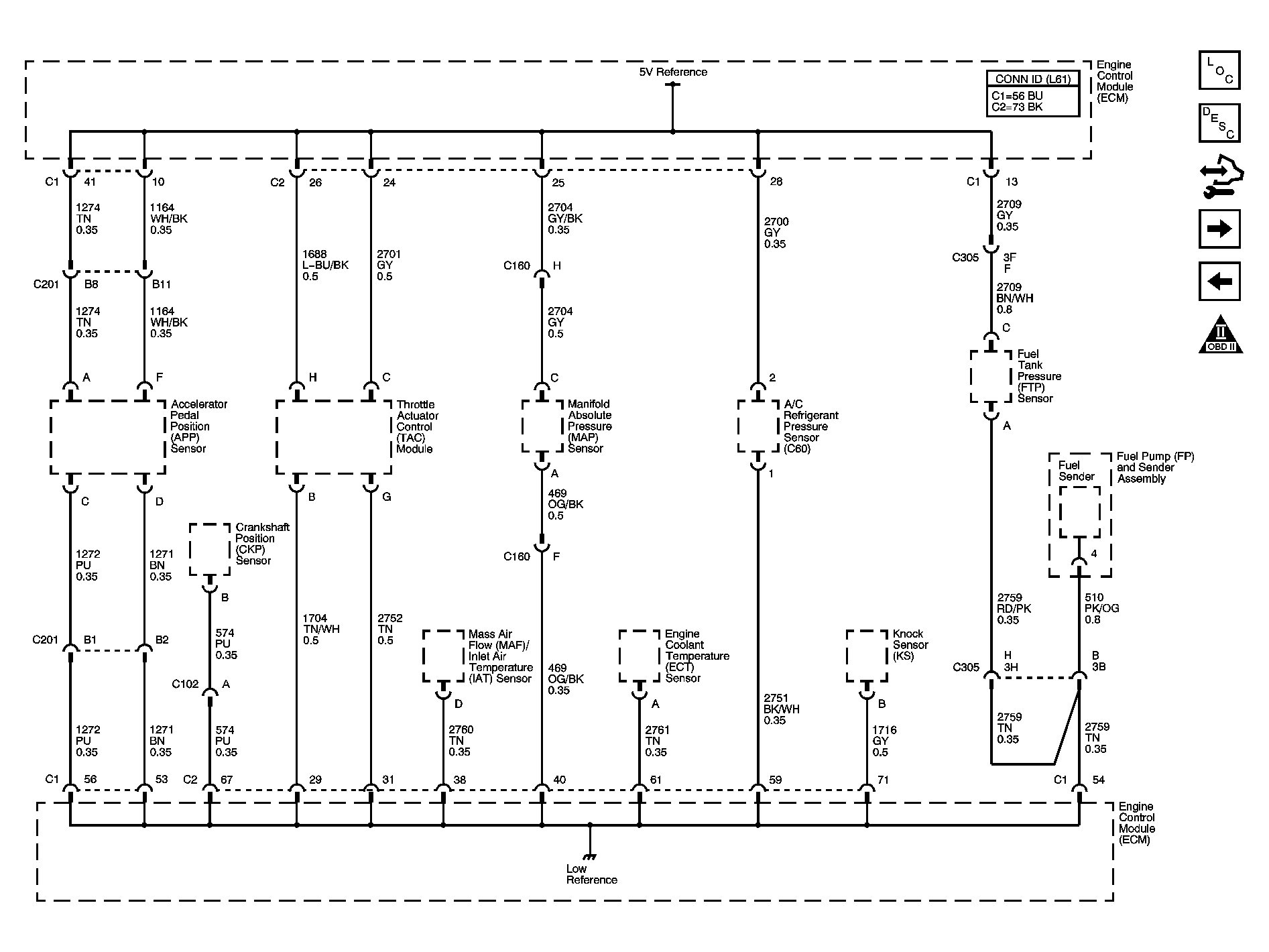

Fig 2: Engine Data Sensors - 5-Volt and Reference Bussing Schematic

Courtesy of GENERAL MOTORS CORP.

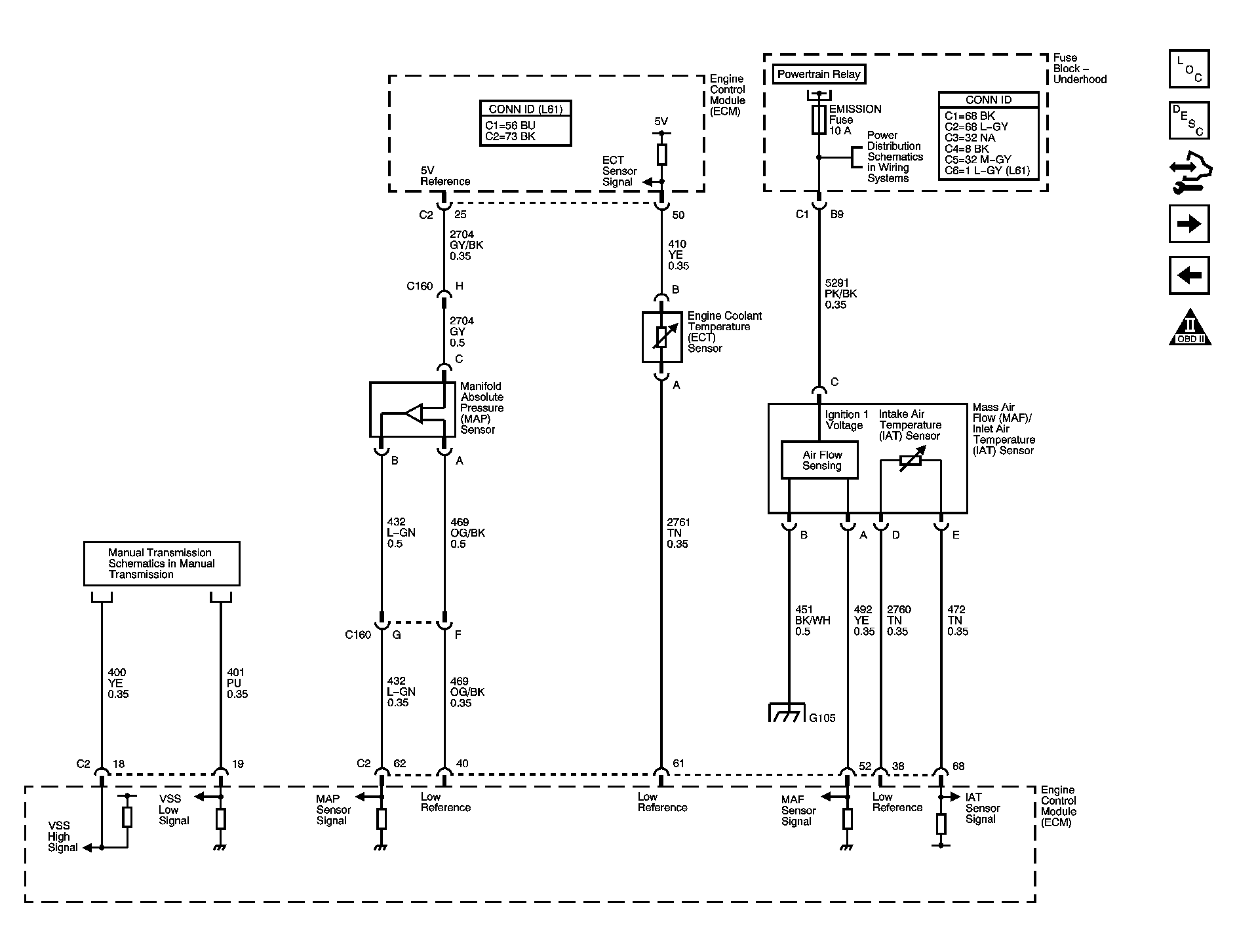

Fig 3: Engine Data Sensors - Pressure, Temperature, and MAF/IAT Schematic

Courtesy of GENERAL MOTORS CORP.

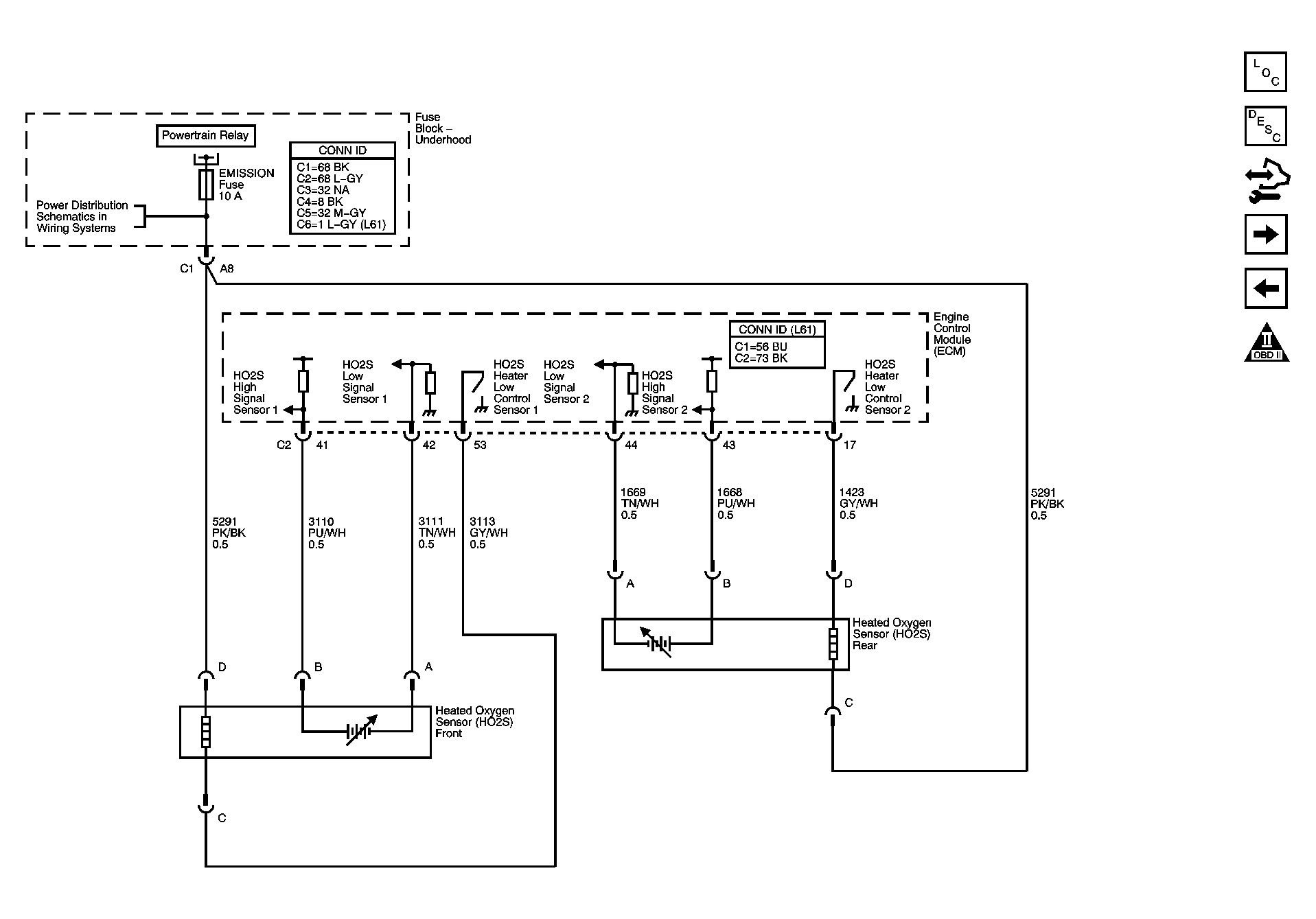

Fig 4: Engine Data Sensors, HO2S Schematic

Courtesy of GENERAL MOTORS CORP.

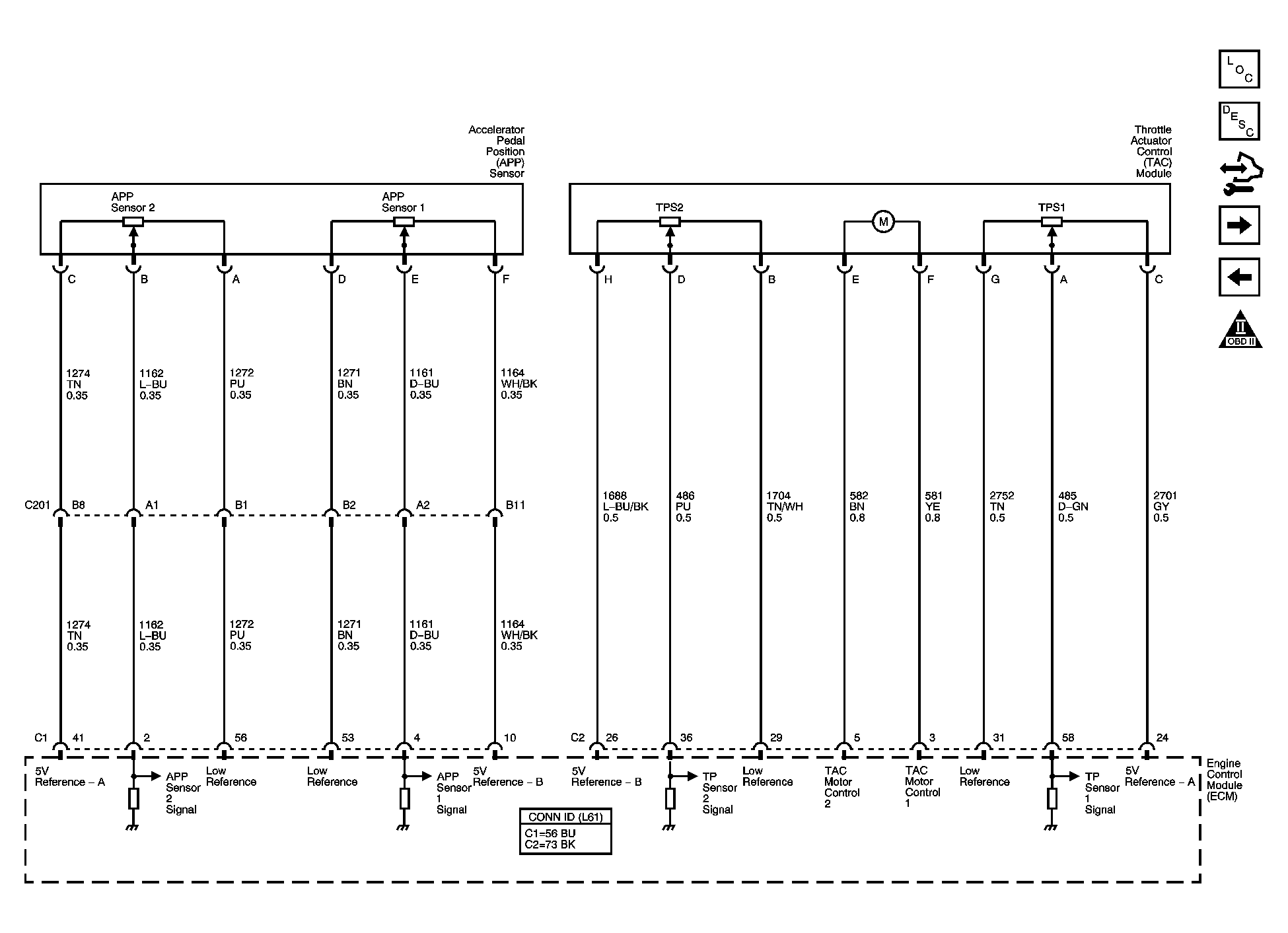

Fig 5: Engine Data Sensors, APP and TAC Schematic

Courtesy of GENERAL MOTORS CORP.

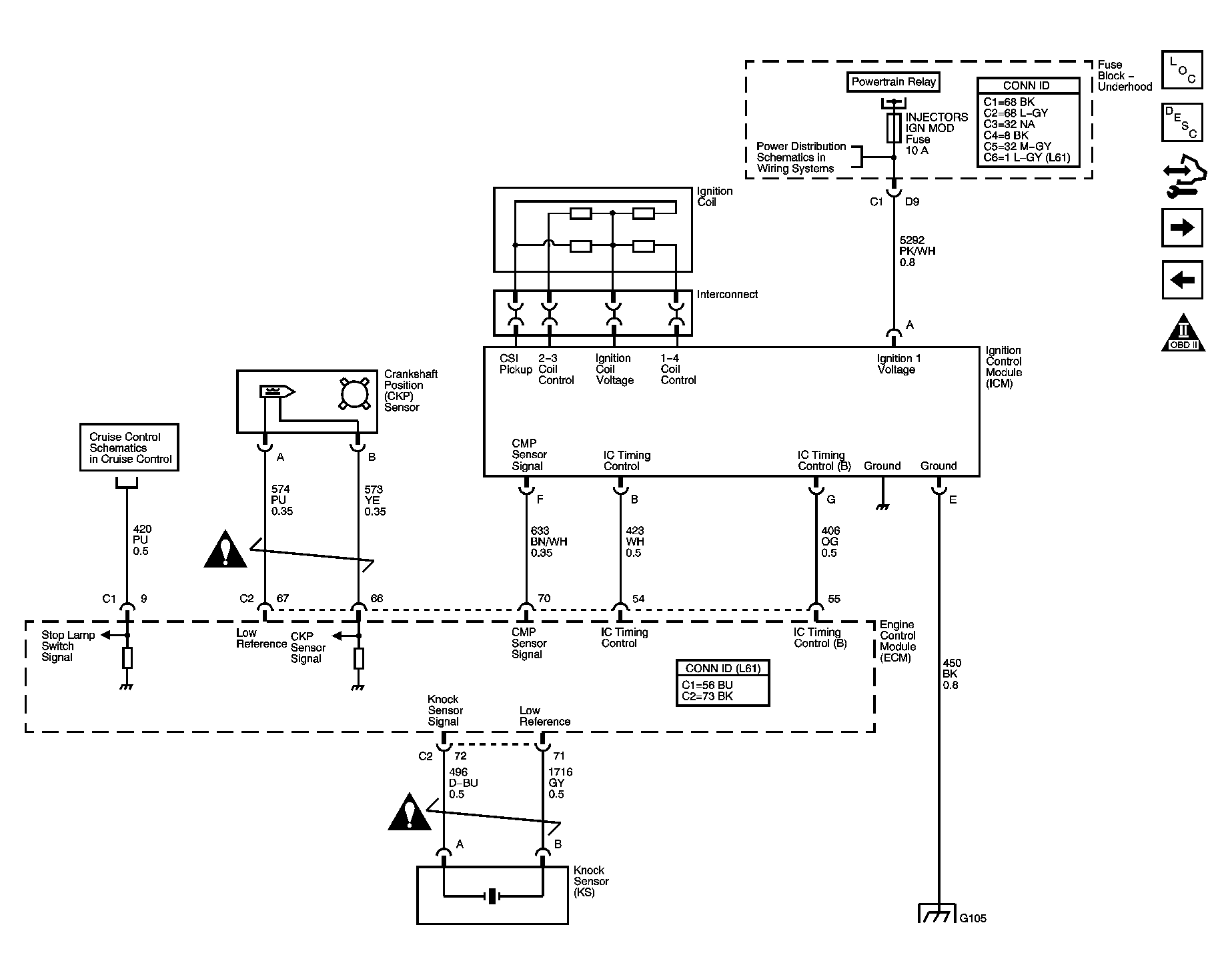

Fig 6: Ignition Controls, Ignition System, and Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

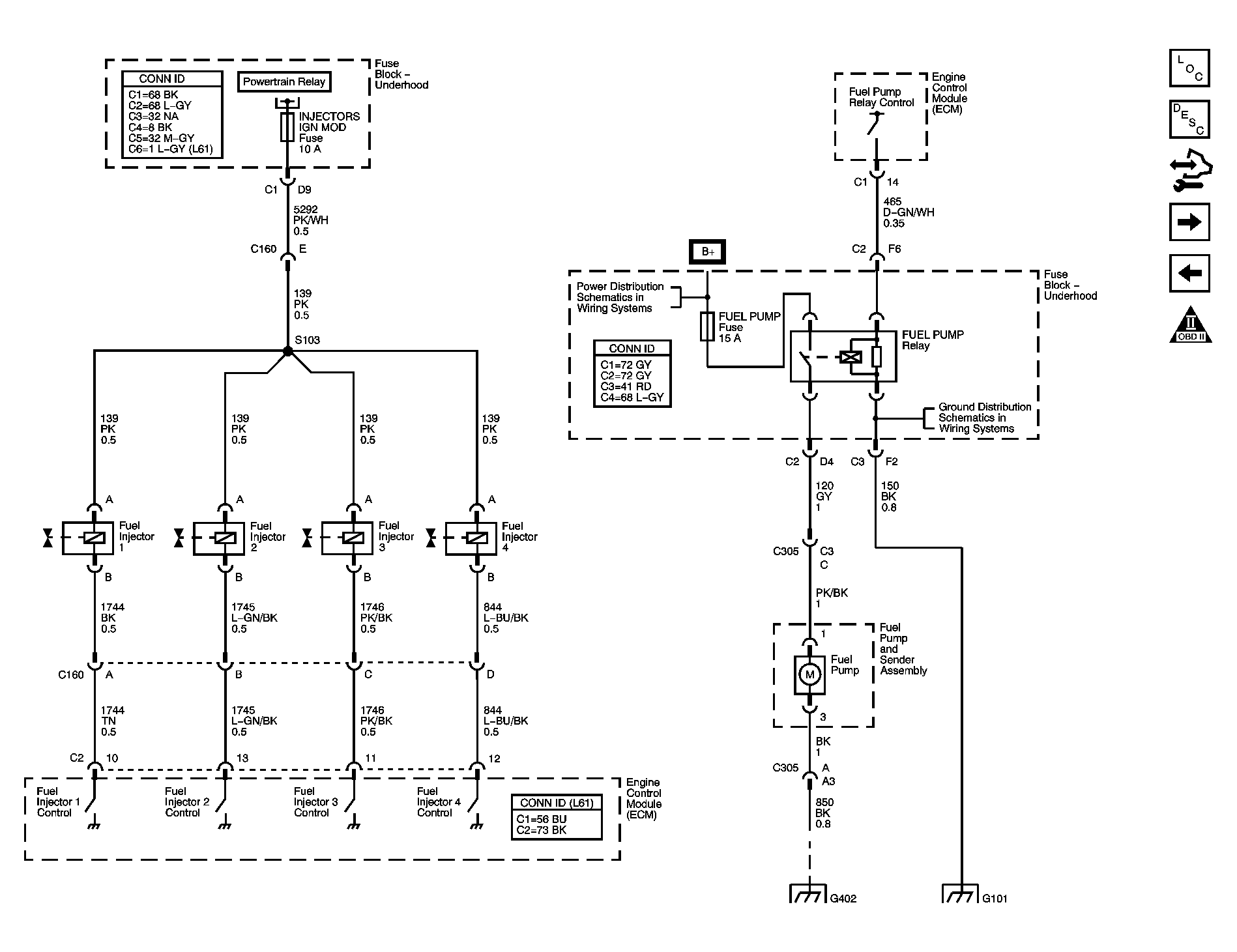

Fig 7: Fuel Controls and Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

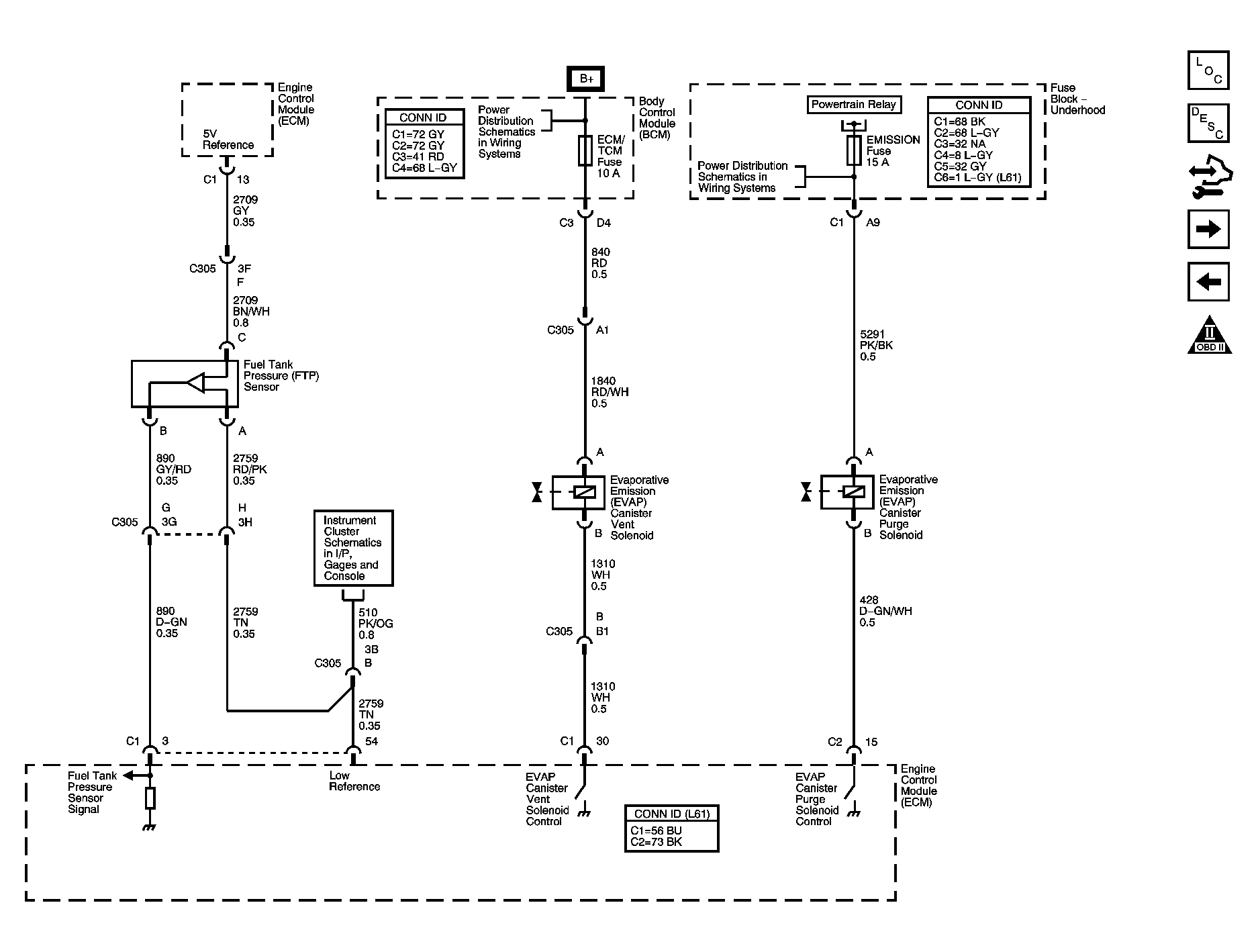

Fig 8: EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

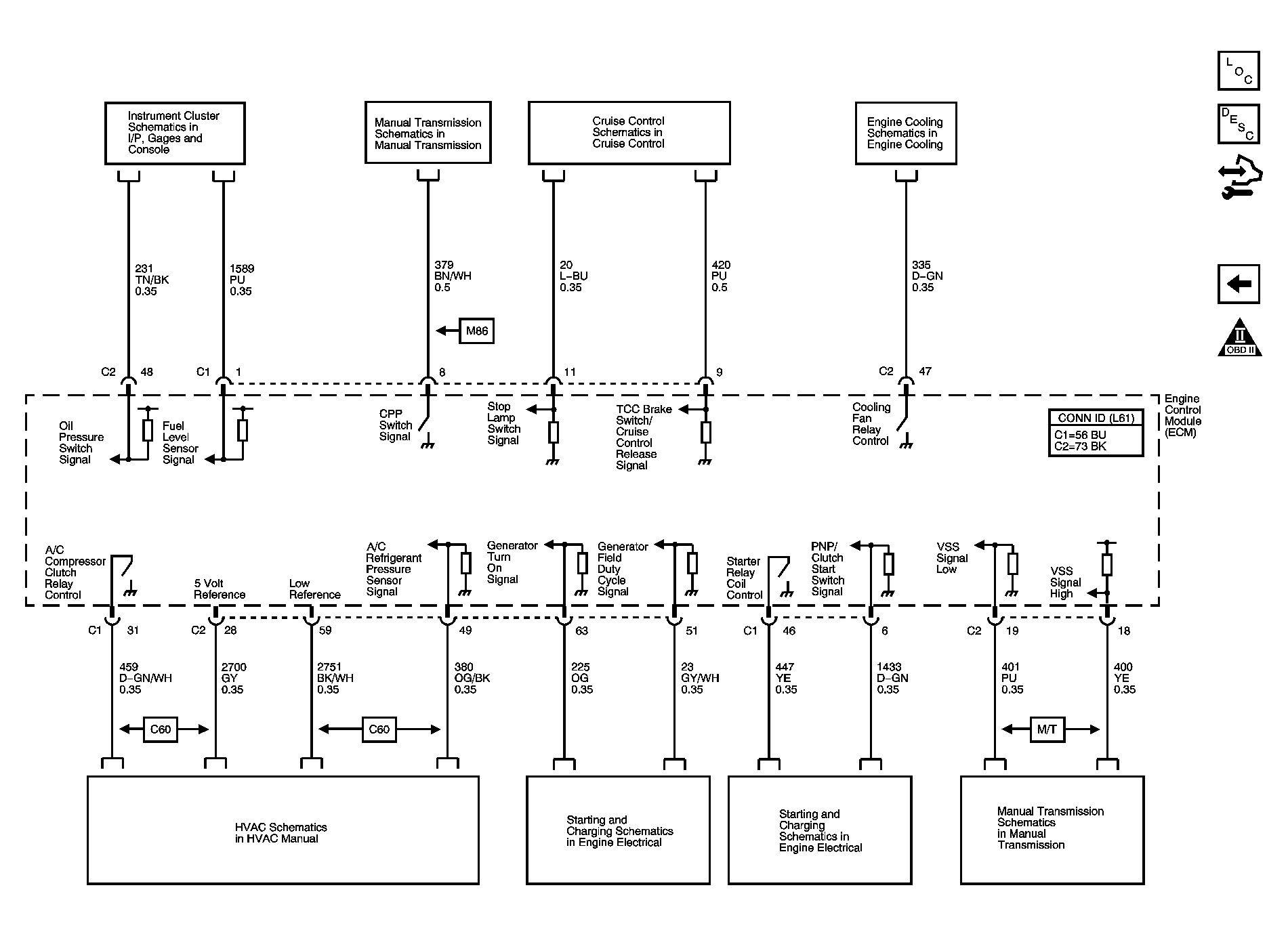

Fig 9: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
