Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the forward overhead console cover.

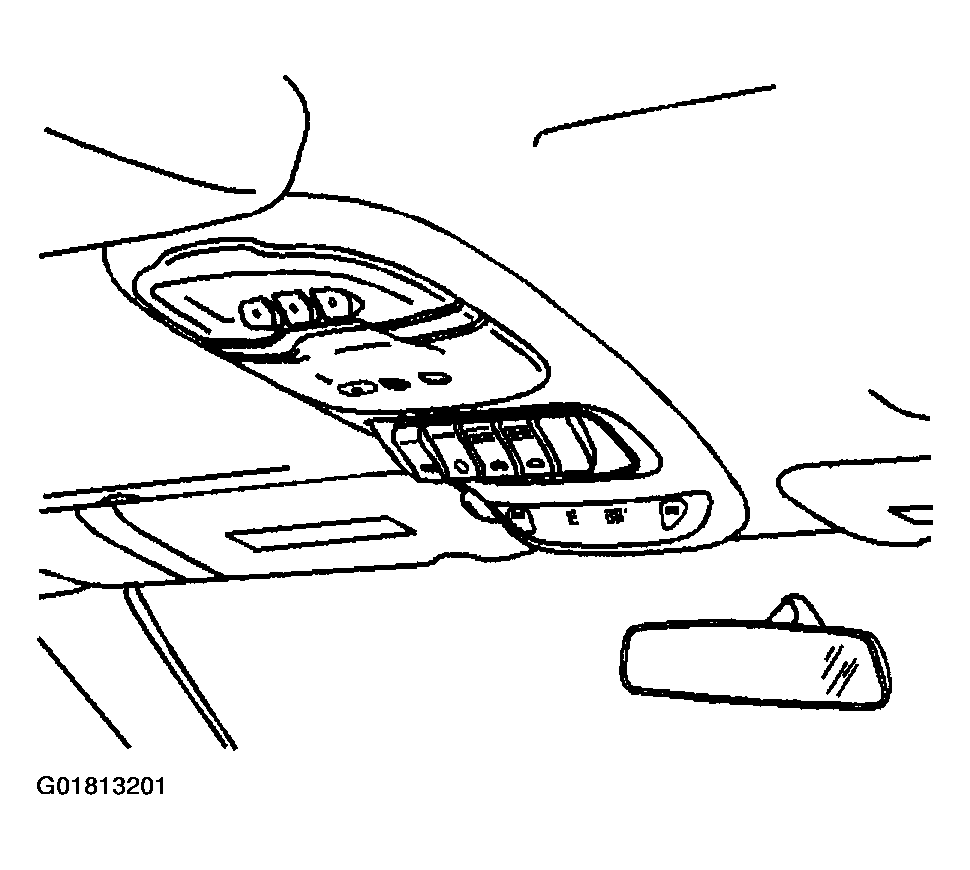

    Fig 1: Removing Forward Overhead Console Cover
    G01813201Courtesy of GENERAL MOTORS CORP.
  2. Remove the screws holding the VES bracket assembly to the roof. Refer to Overhead Console - VES Replacement .
  3. Pull the headliner down and slide the bracket forward to release the rear locking tabs.

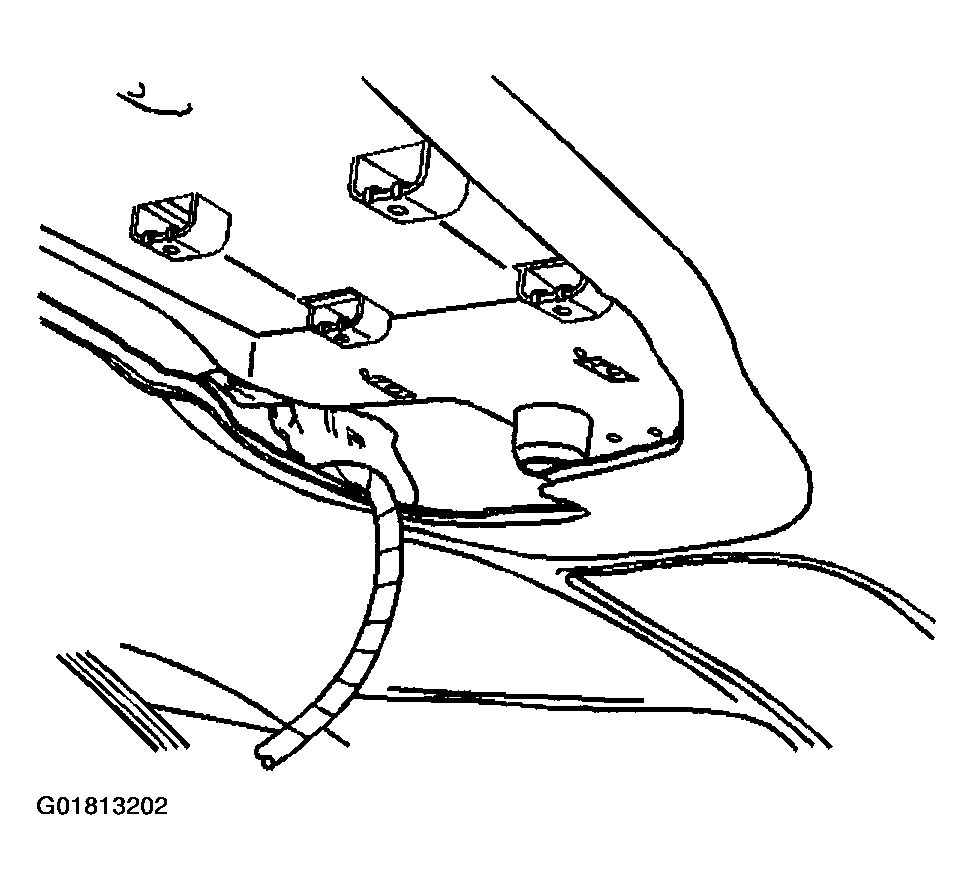

    Fig 2: Removing VES Overhead Console
    G01813202Courtesy of GENERAL MOTORS CORP.
  4. Remove the bracket from the headliner.

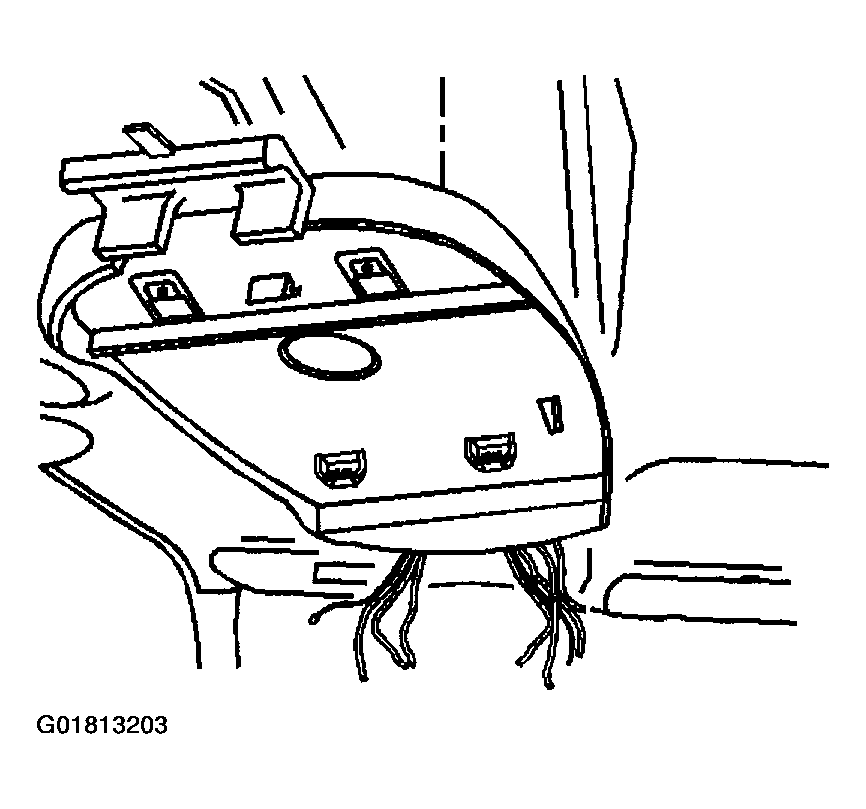

Fig 3: Removing Bracket From Headliner
G01813203Courtesy of GENERAL MOTORS CORP.
