Power Sliding Door (PSD) Schematics

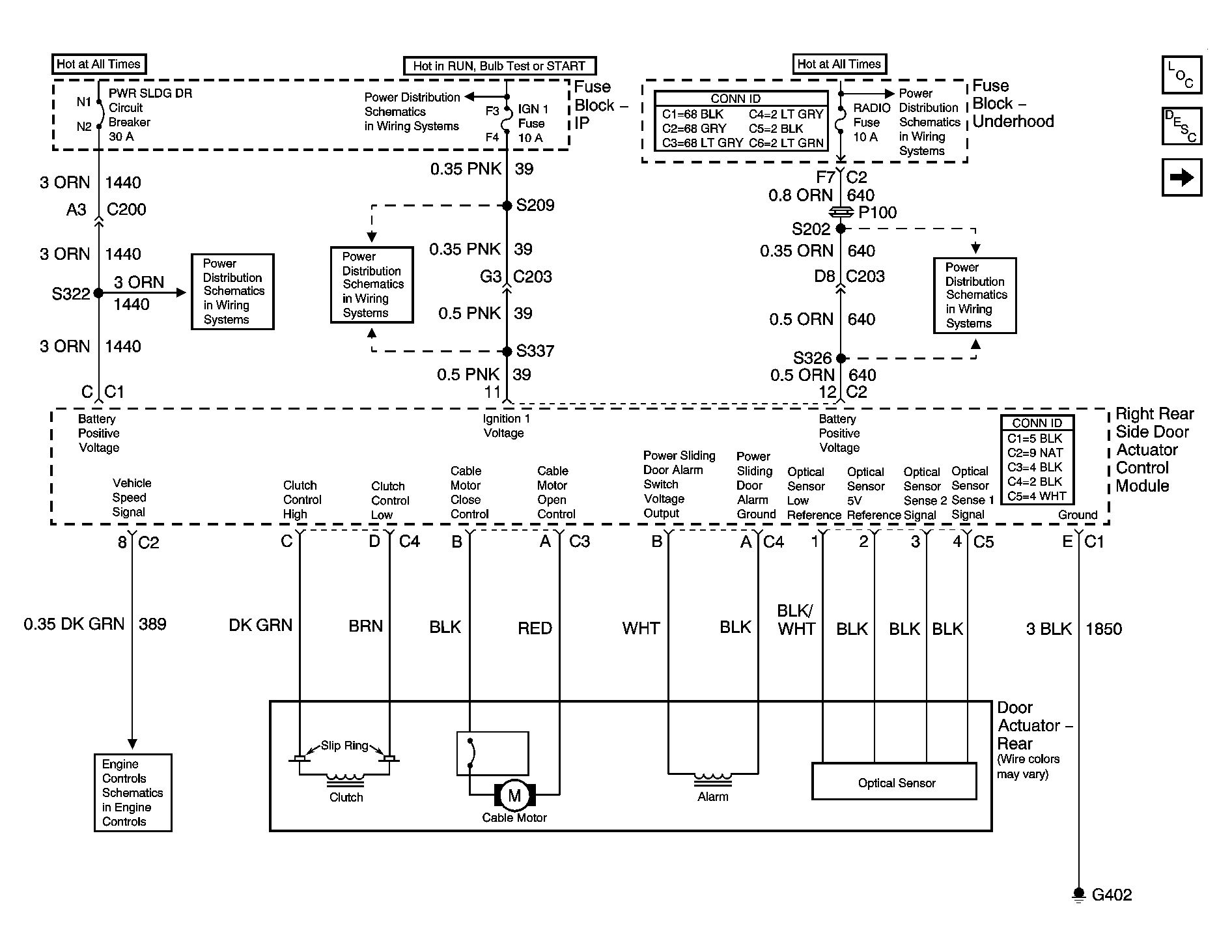

Fig 1: Identifying Right Door Power, Ground and PSD Motor
GM685474Courtesy of GENERAL MOTORS CORP.

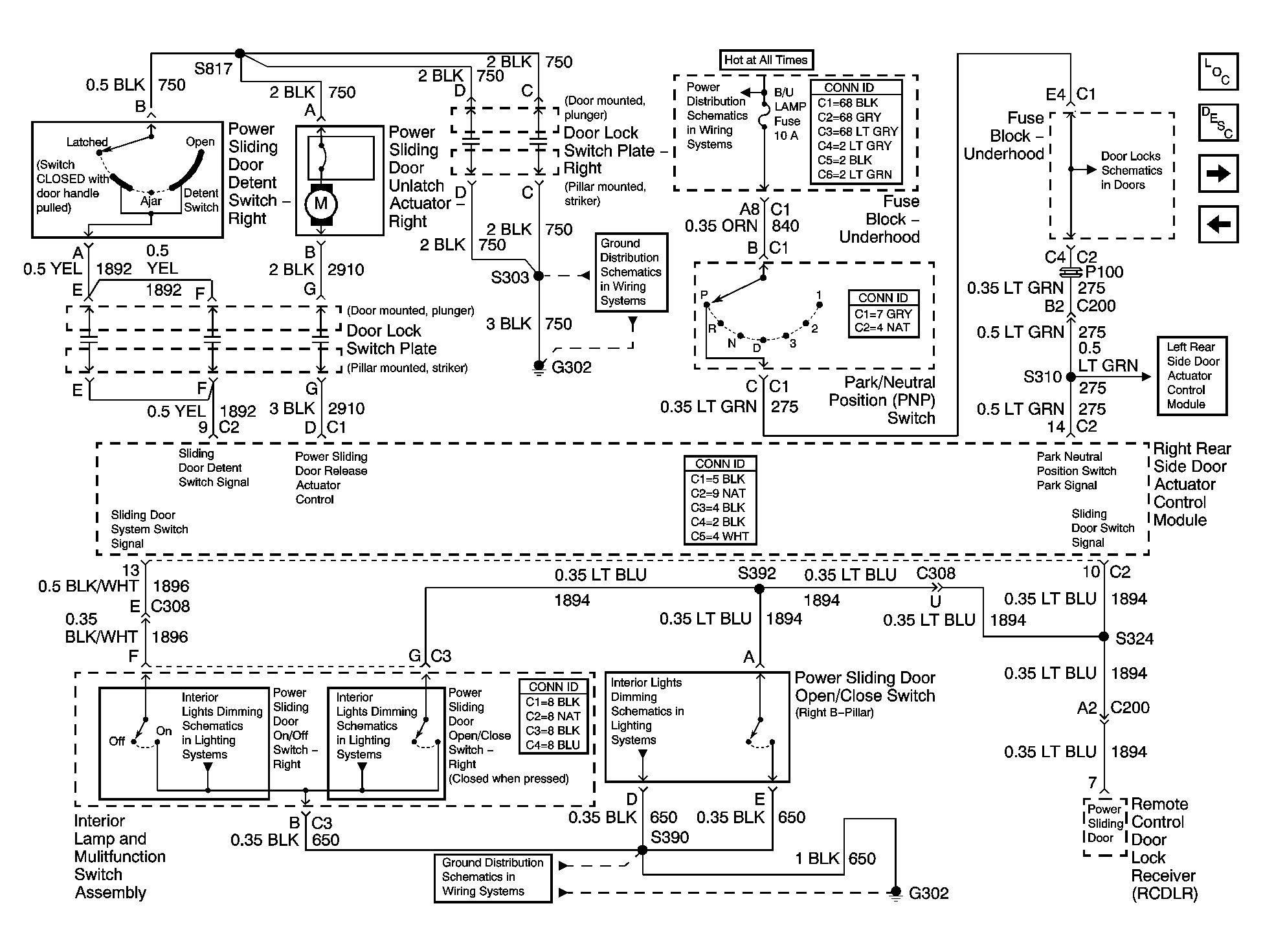

Fig 2: Identifying Right Door PSD Switches, Park/Neutral Switch and RCDLR
GM685482Courtesy of GENERAL MOTORS CORP.

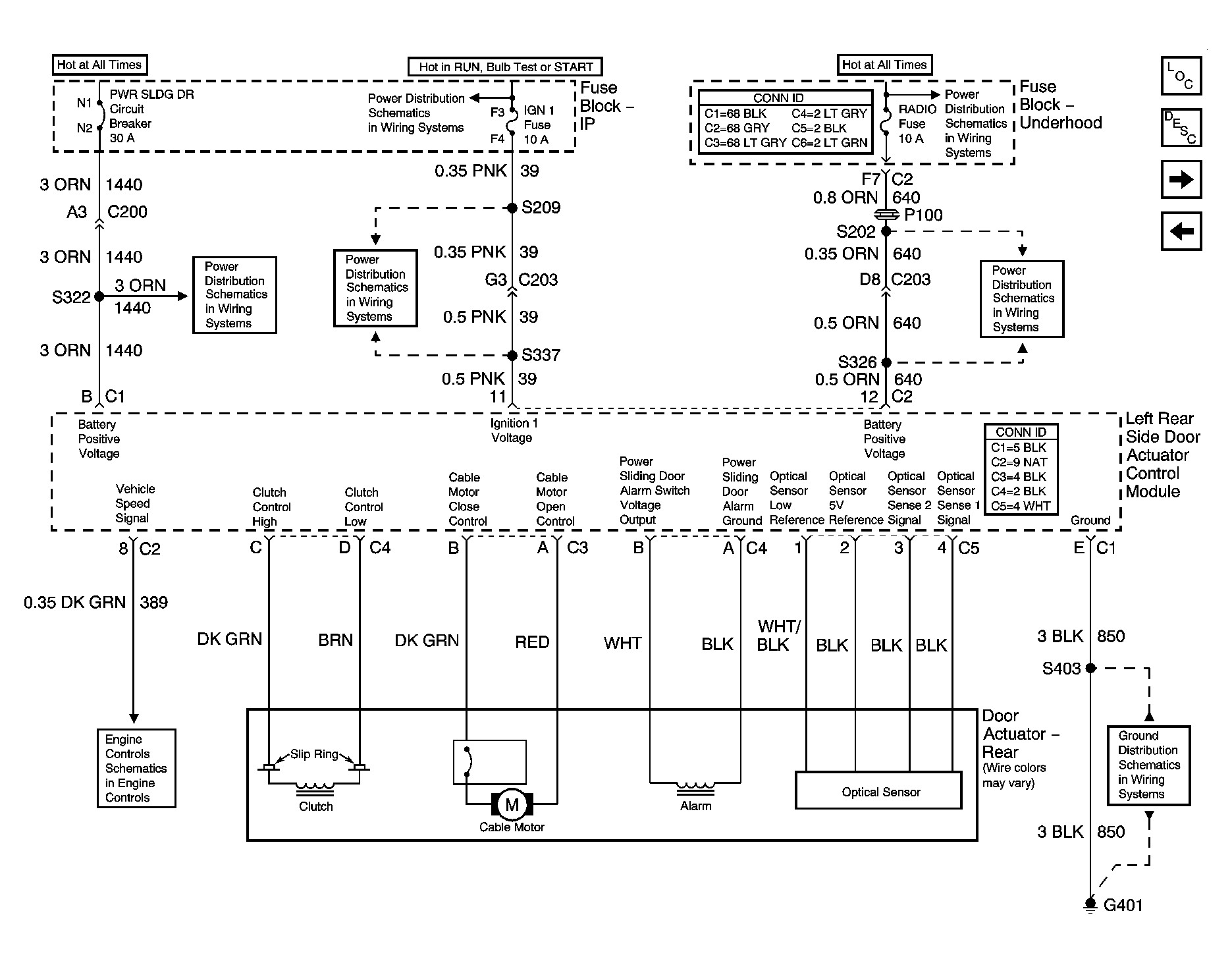

Fig 3: Identifying Left Door Power, Ground and PSD Motor
GM685488Courtesy of GENERAL MOTORS CORP.

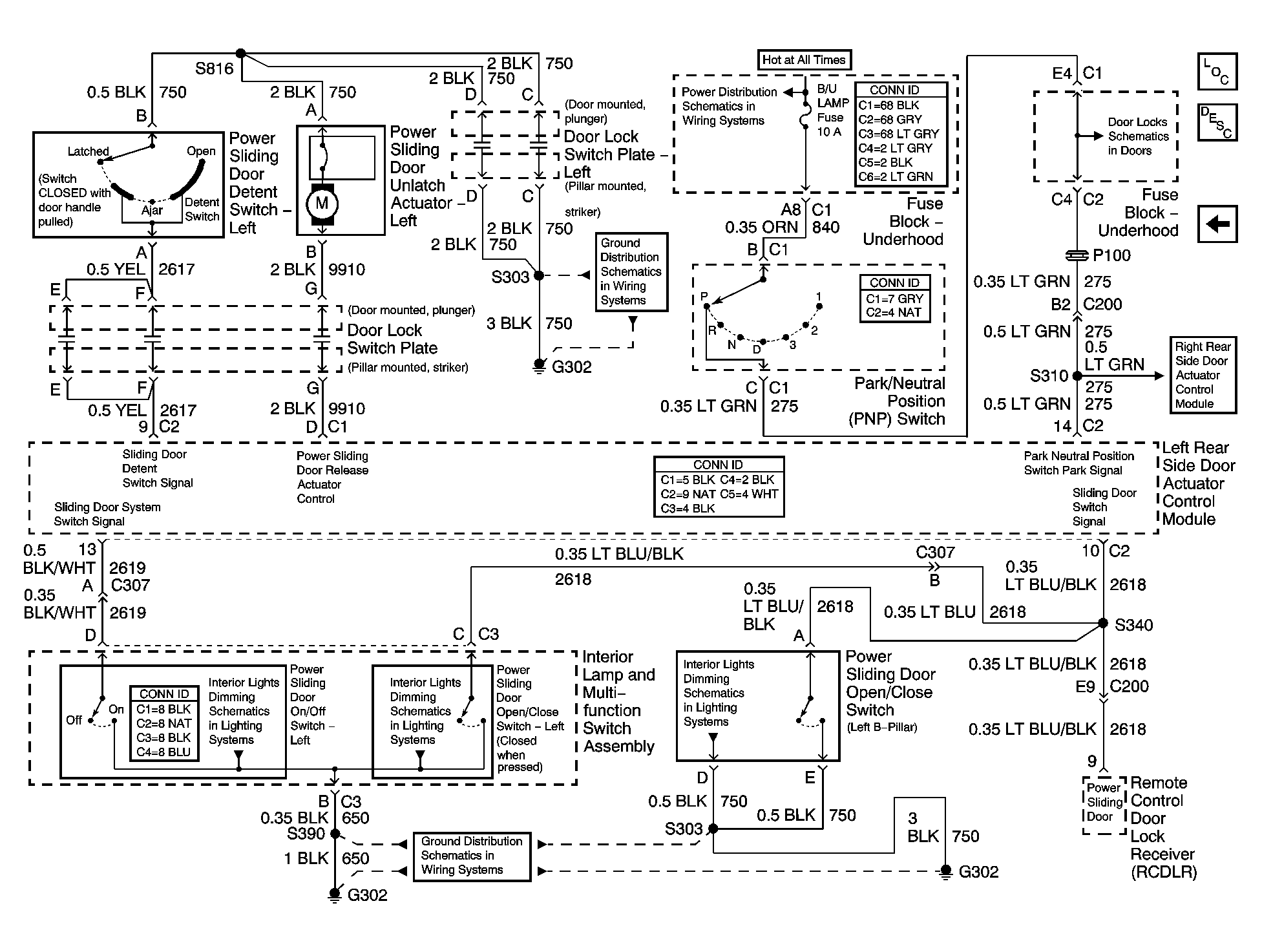

Fig 4: Identifying Left Door PSD Switches, Park/Neutral Switch and RCDLR
GM685491Courtesy of GENERAL MOTORS CORP.
