Memory Seats Schematics

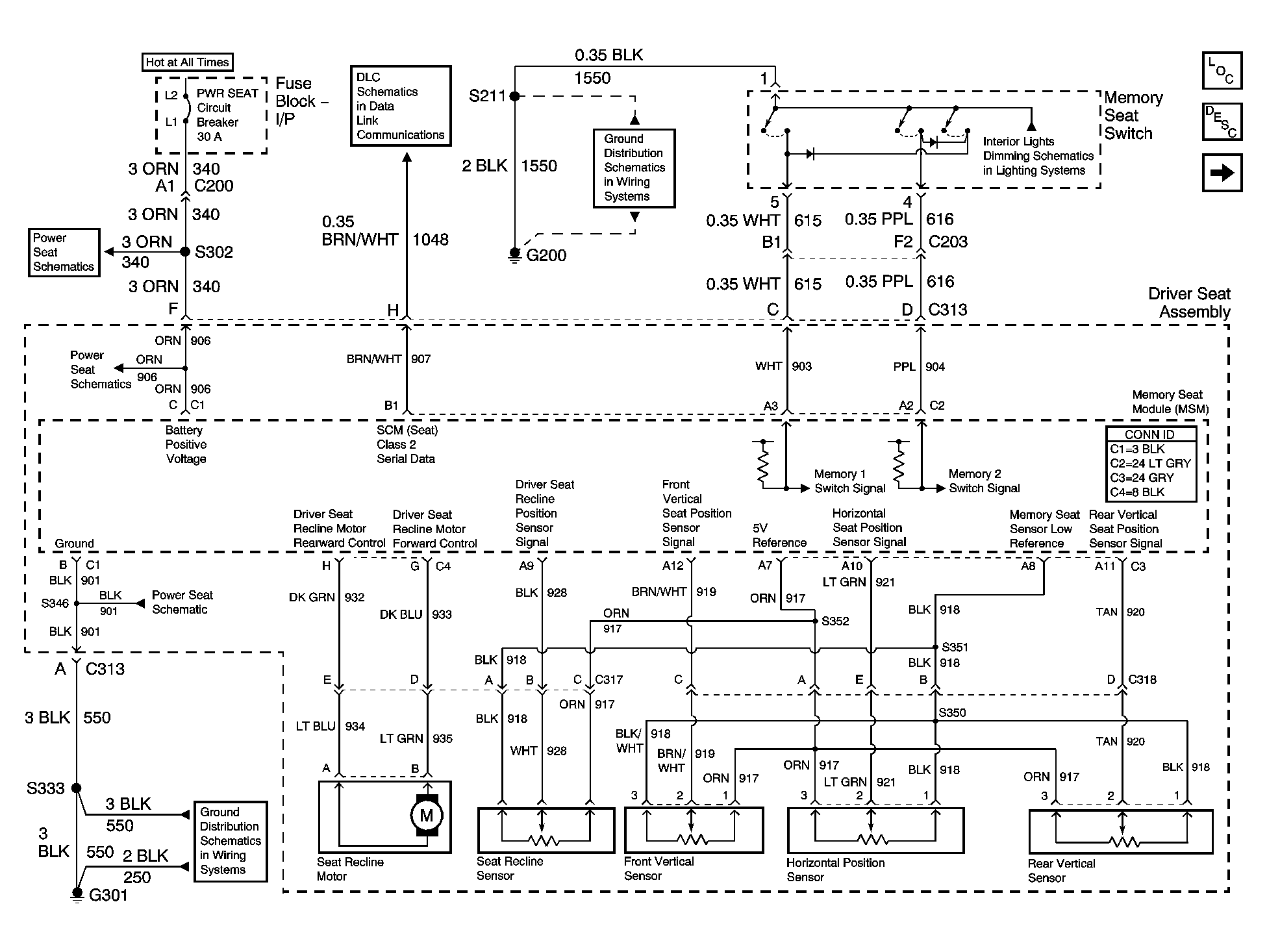

Fig 1: Ground, Memory Seat Switch, and Memory Seat Module (MSM) Schematic
GM796348Courtesy of GENERAL MOTORS CORP.

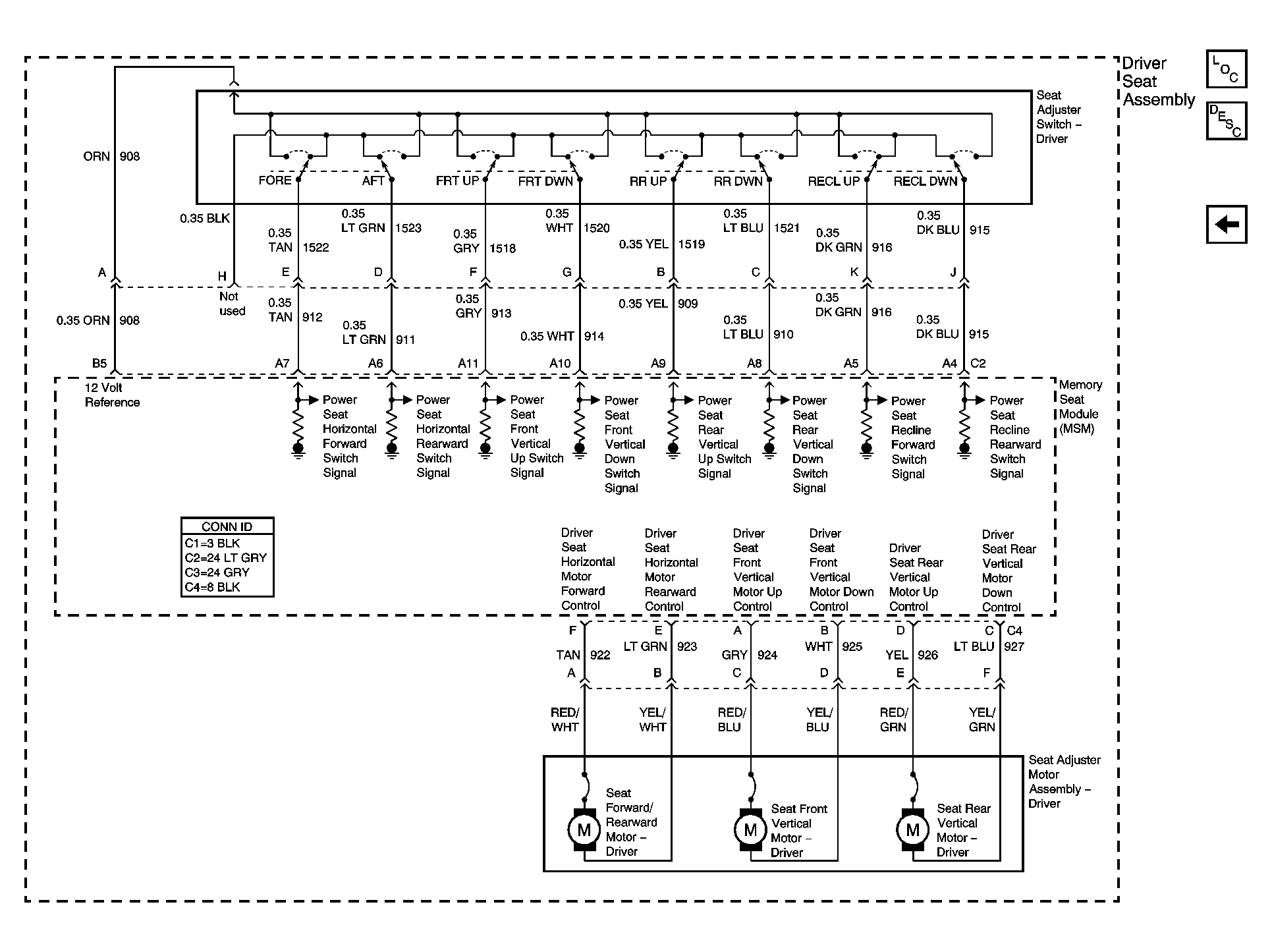

Fig 2: Memory Seat Module (MSM) and Seat Horizontal Motor Schematic
GM796349Courtesy of GENERAL MOTORS CORP.
