Engine Controls Schematics

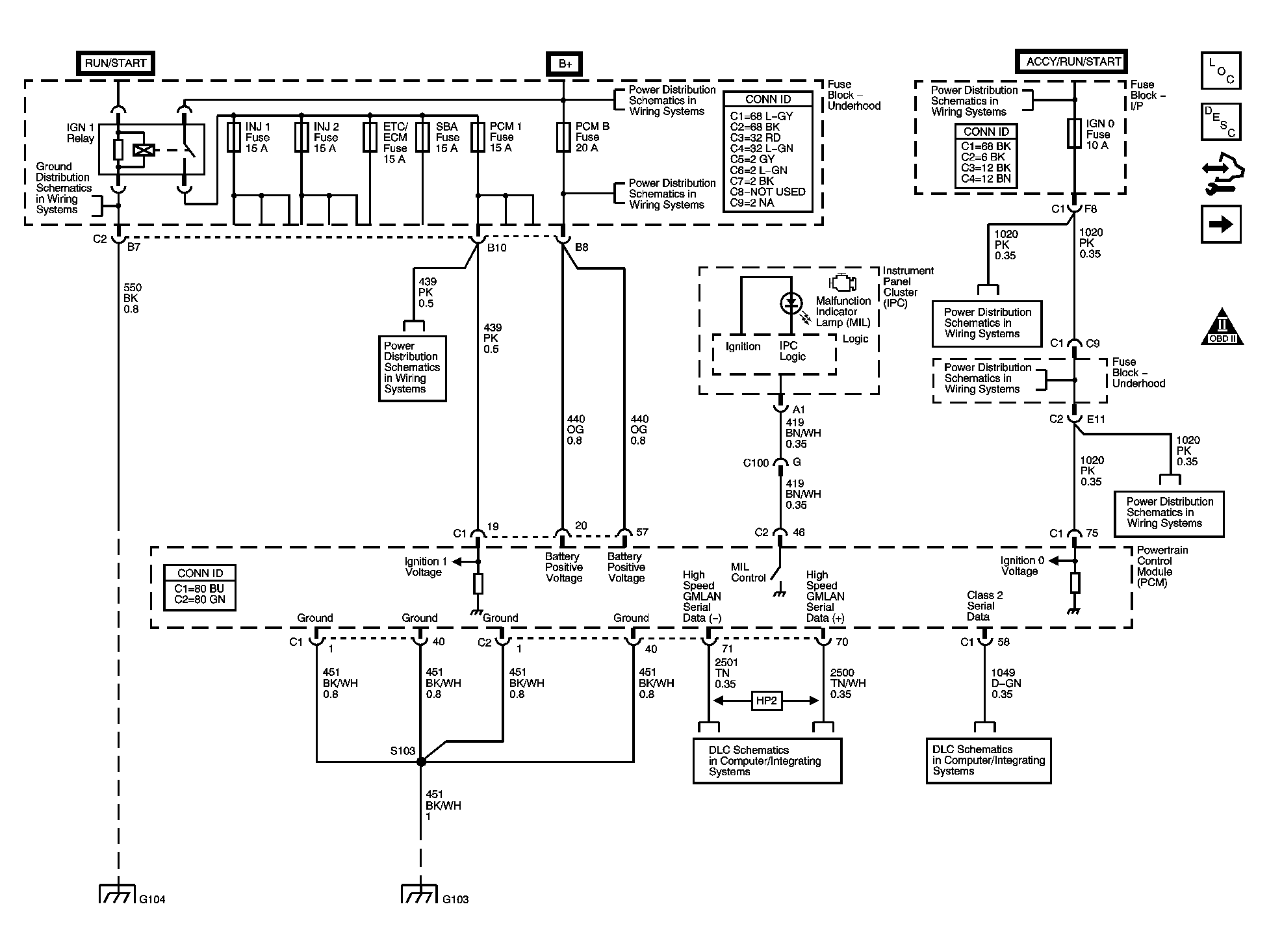

Fig 1: Module Power, Ground, Serial Data & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

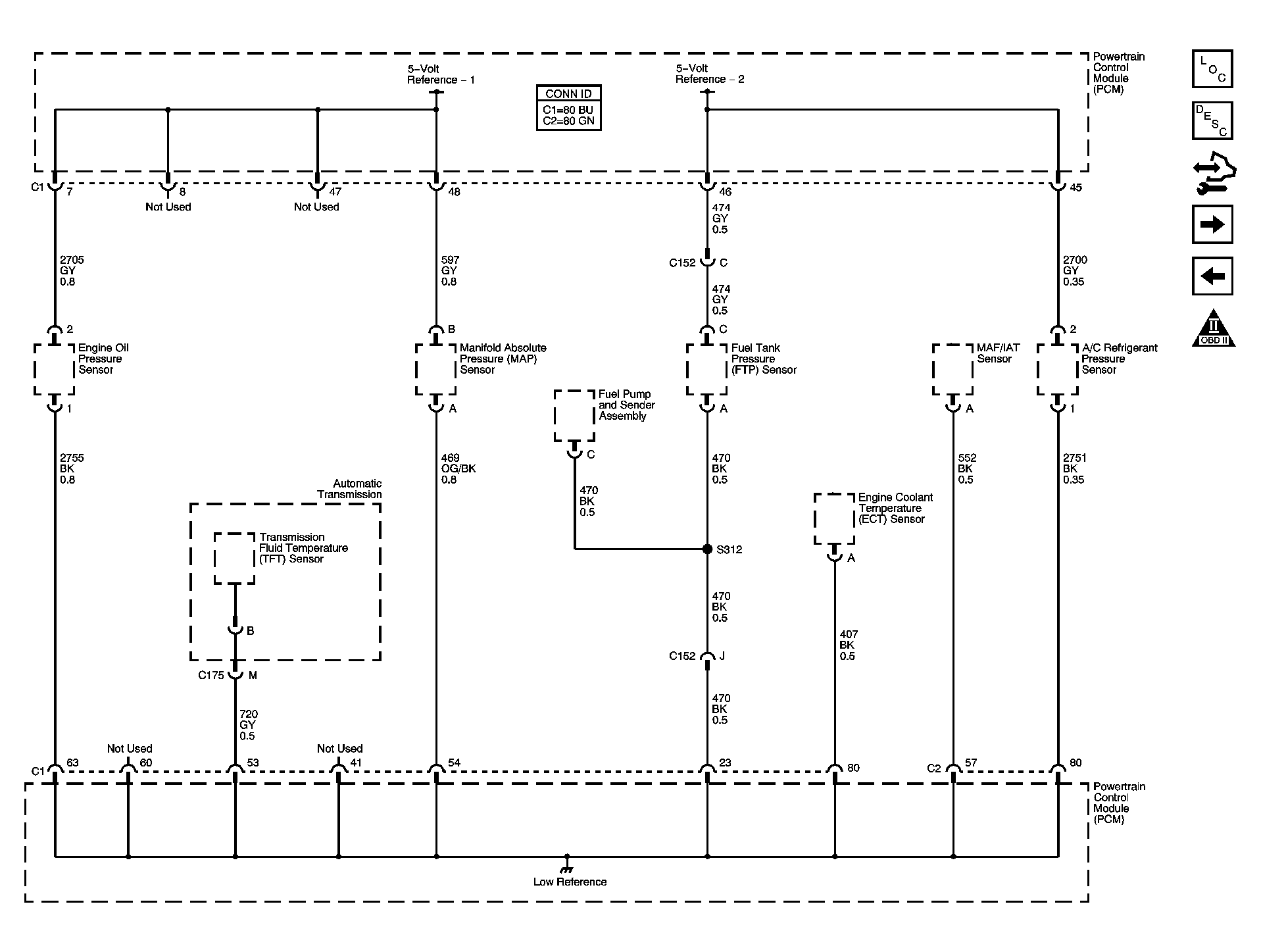

Fig 2: Engine Data Sensors Schematic (5-Volt & Low Reference)

Courtesy of GENERAL MOTORS CORP.

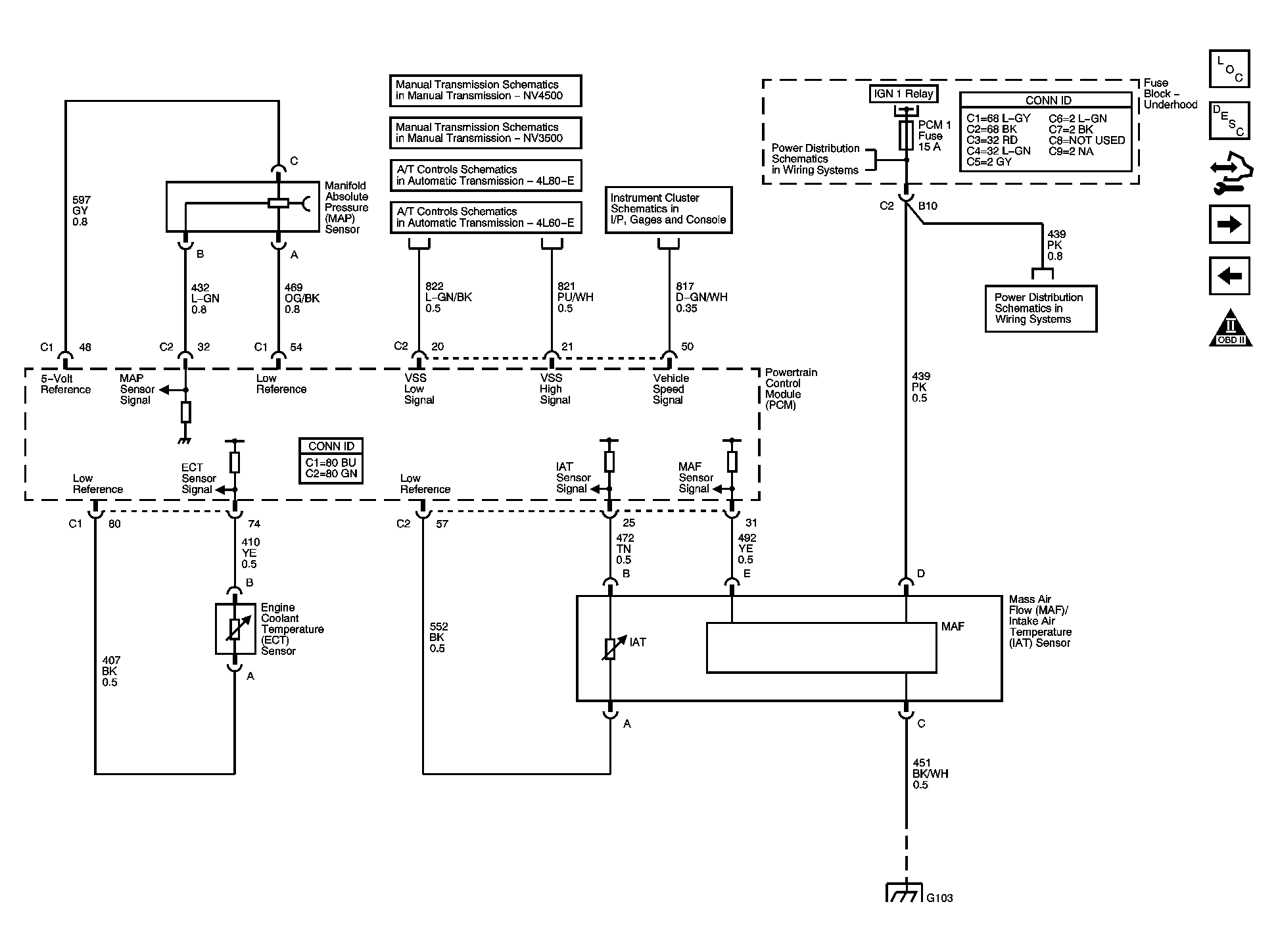

Fig 3: Engine Data Sensors Schematic (Pressure, Temperature, MAF & VSS)

Courtesy of GENERAL MOTORS CORP.

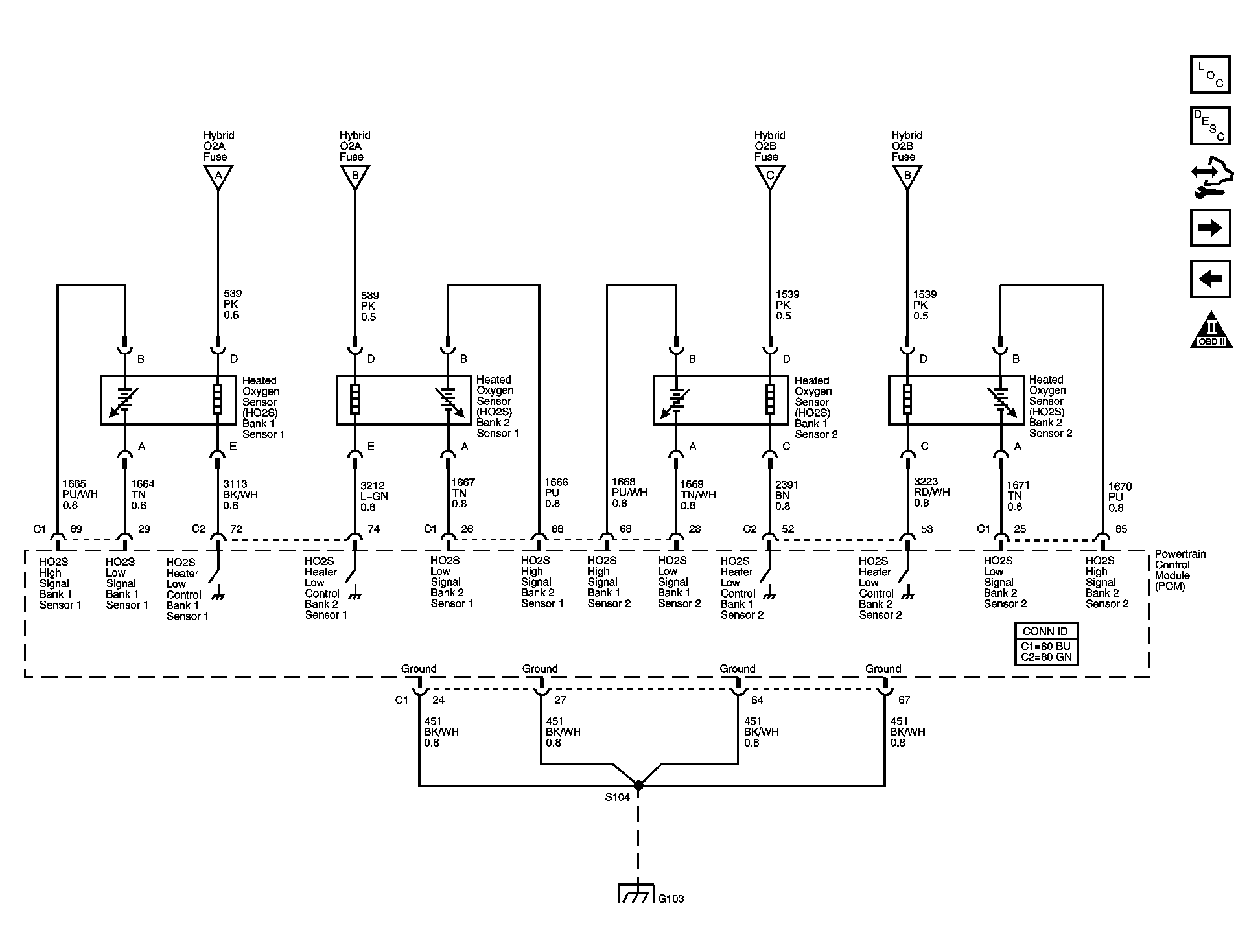

Fig 4: Engine Data Sensors Schematic (Oxygen Sensors - Except HP2)

Courtesy of GENERAL MOTORS CORP.

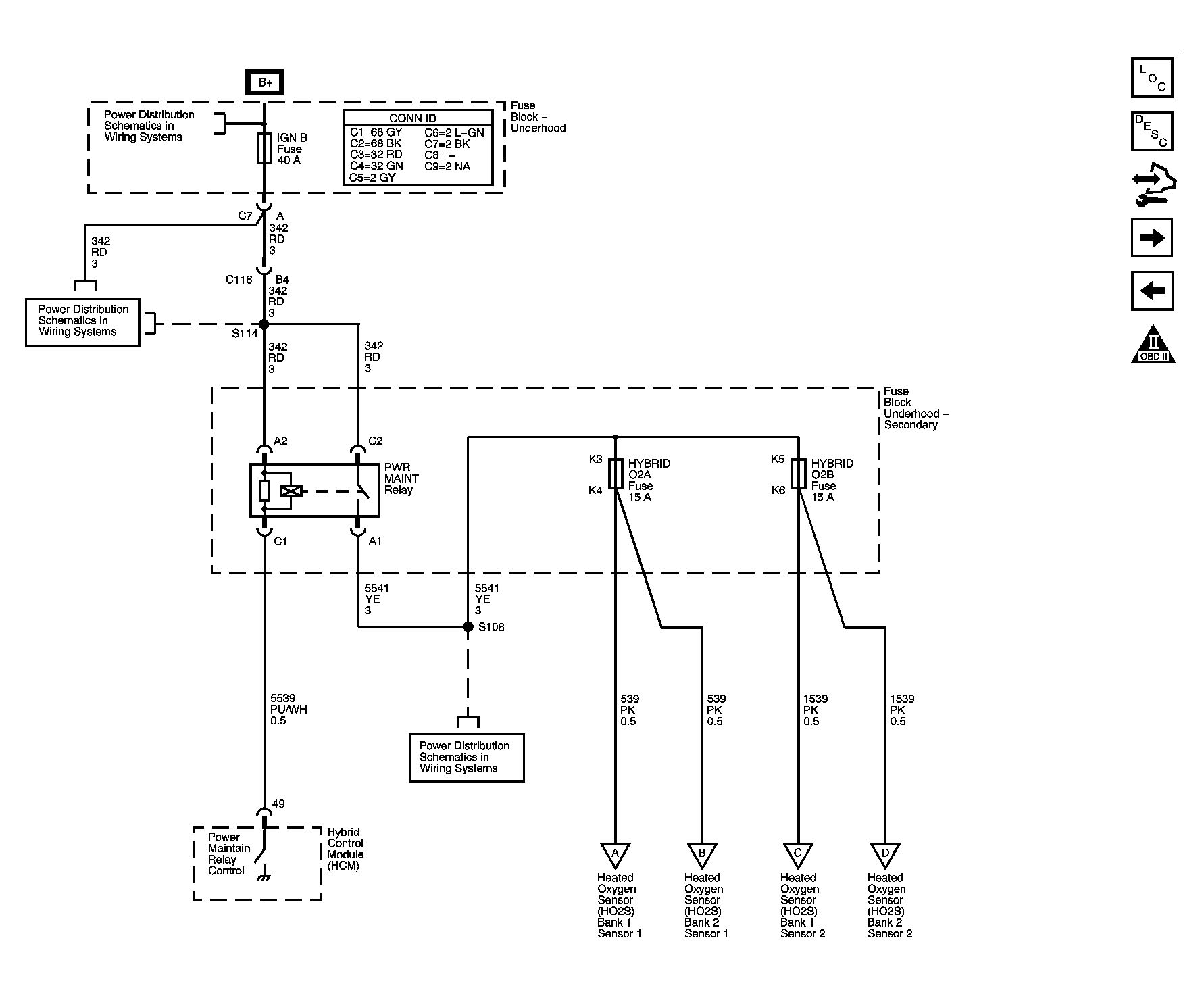

Fig 5: Engine Data Sensors Schematic (Oxygen Sensors - HP2) (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Engine Data Sensors Schematic (Oxygen Sensors - HP2) (2 of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Engine Data Sensors Schematic (Electronic Throttle Control)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Ignition Controls Schematic (Ignition System Coils 1, 3, 5 & 7)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Ignition Controls Schematic (Ignition System Coils 2, 4, 6 & 8)

Courtesy of GENERAL MOTORS CORP.

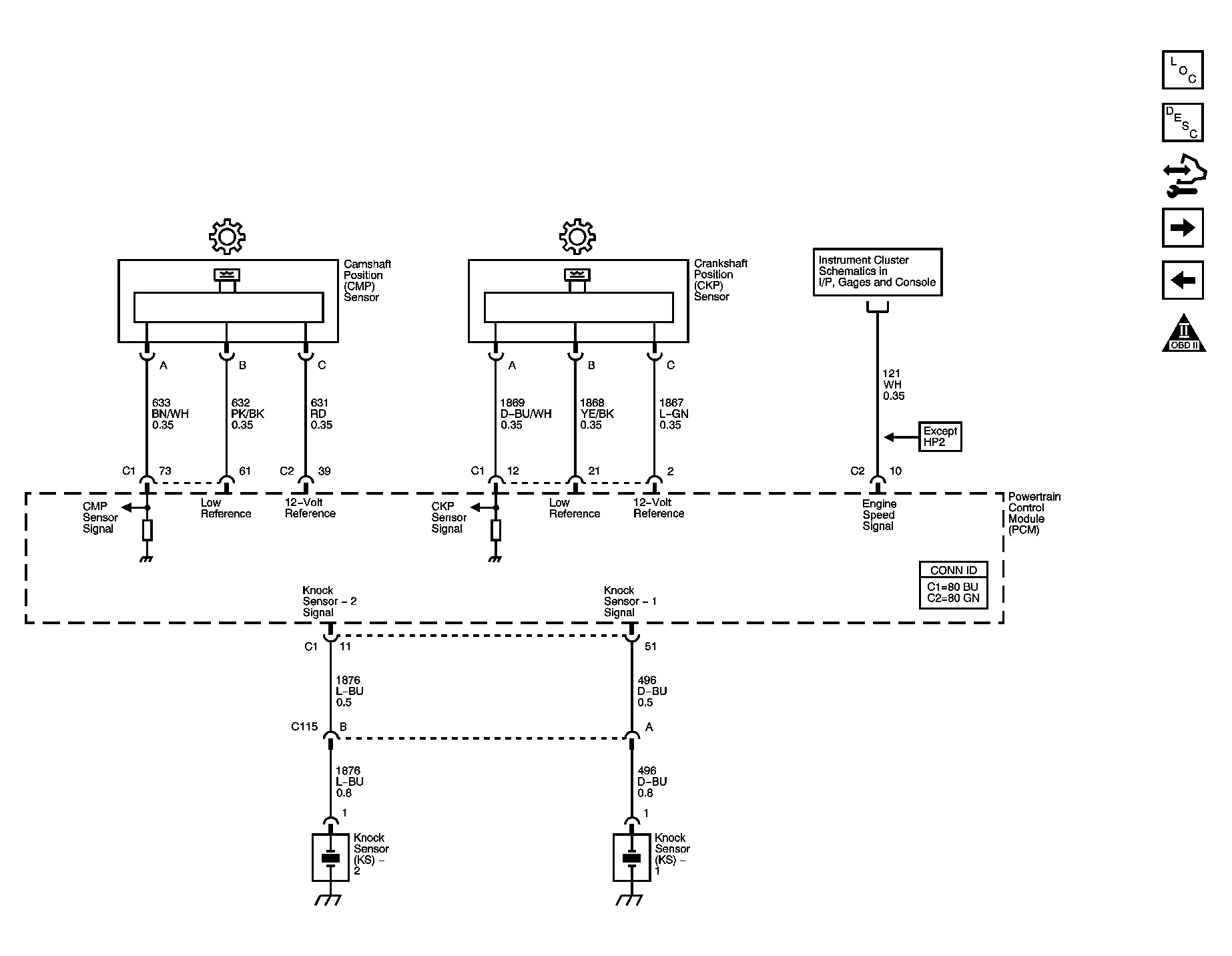

Fig 10: Ignition Controls Schematic (Sensors)

Courtesy of GENERAL MOTORS CORP.

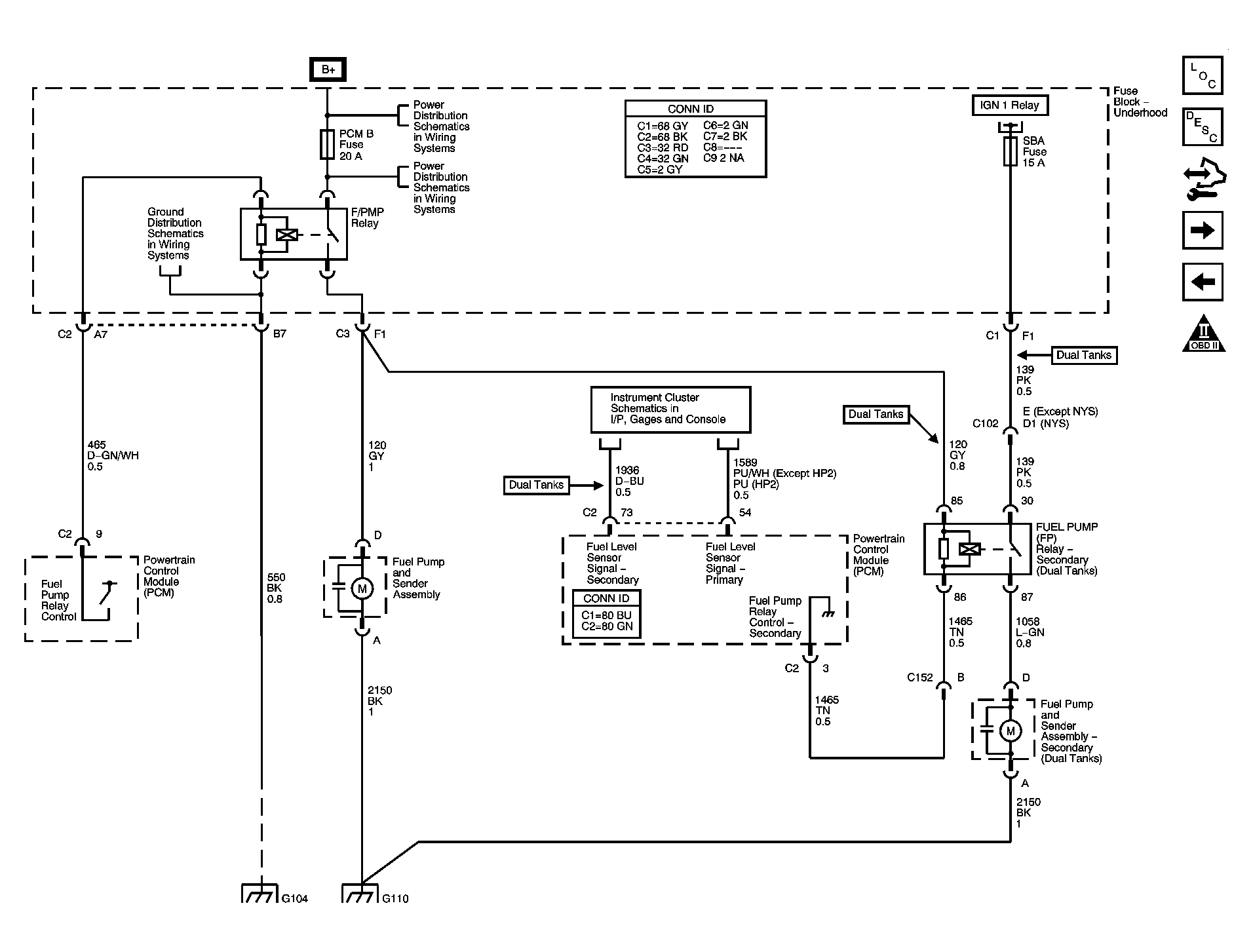

Fig 11: Fuel Controls Schematic (Fuel Pump Controls)

Courtesy of GENERAL MOTORS CORP.

Fig 12: Fuel Controls Schematic (Fuel Injectors)

Courtesy of GENERAL MOTORS CORP.

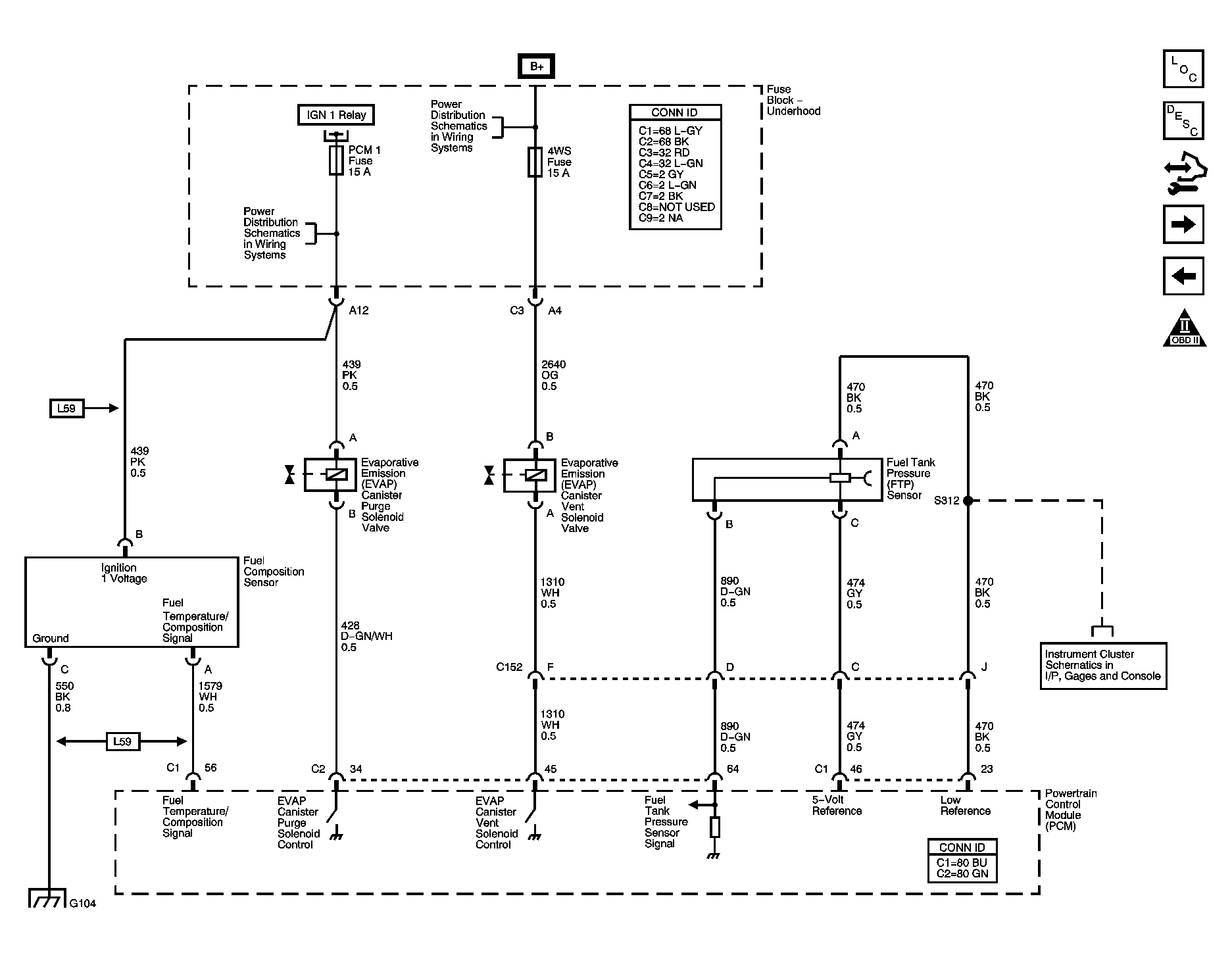

Fig 13: Fuel Controls Schematic (EVAP Controls & Fuel Composition)

Courtesy of GENERAL MOTORS CORP.

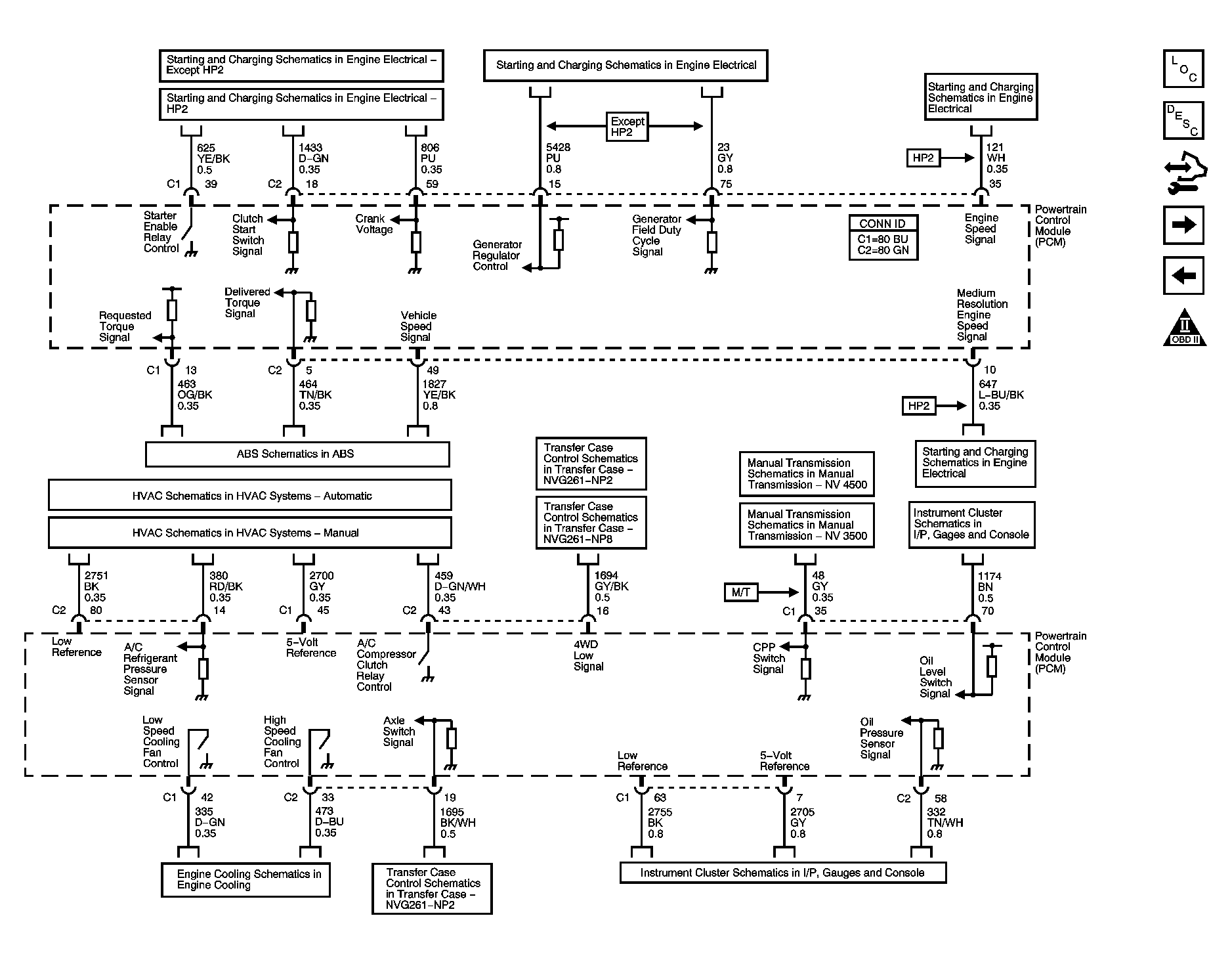

Fig 14: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

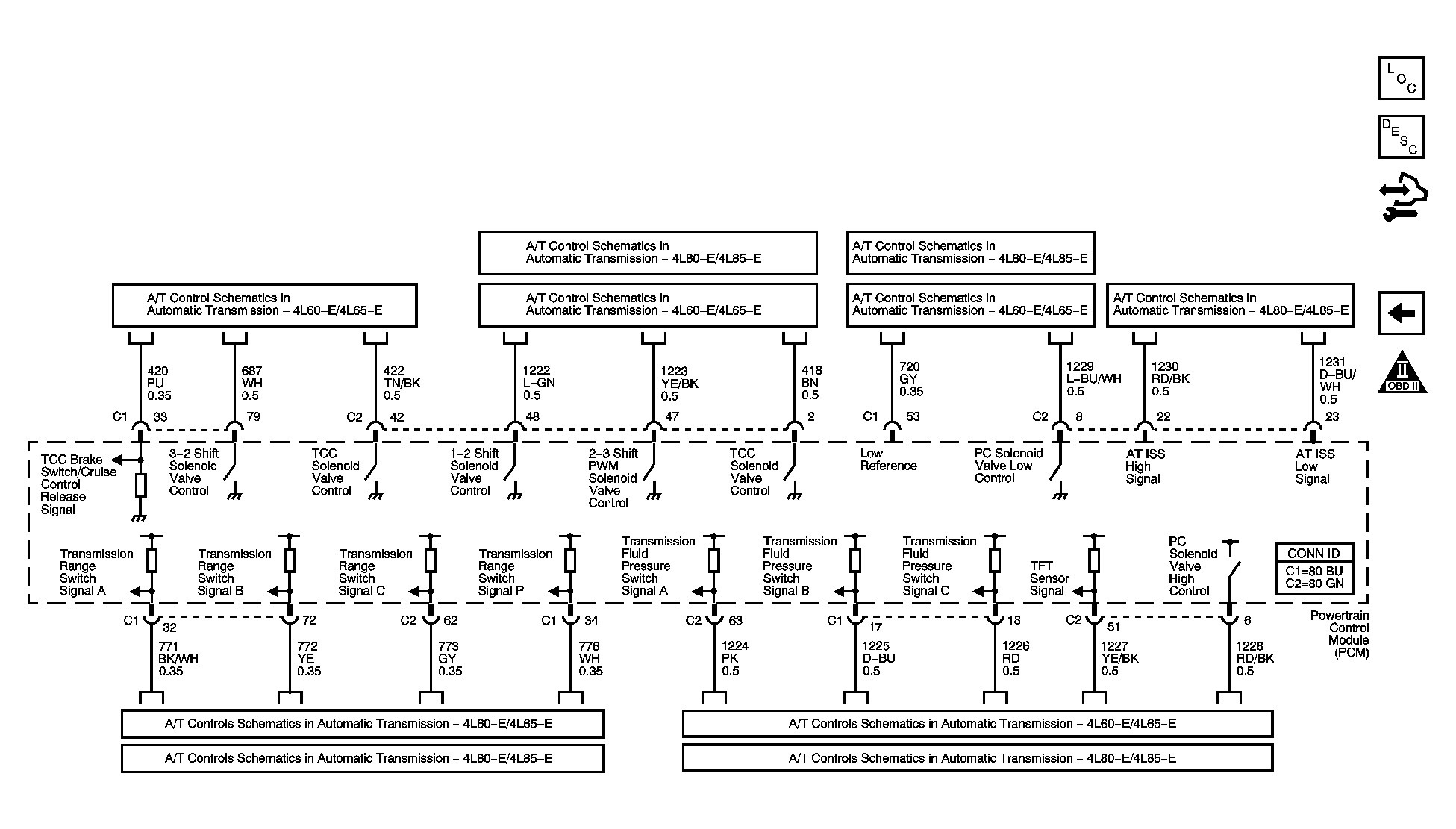

Fig 15: Transmission Control References Schematic (A/T)

Courtesy of GENERAL MOTORS CORP.
