Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb.

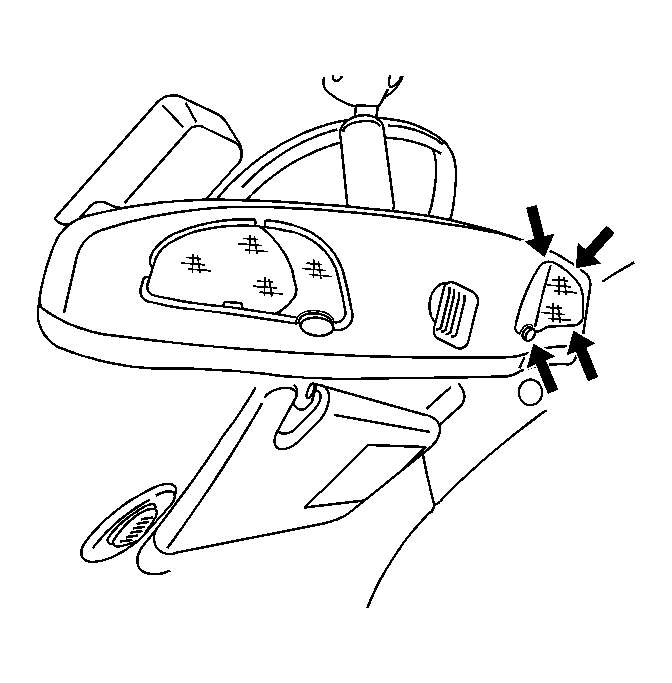

  2. Fig 1: Removing & Installing Rearview Mirror Lamp
    GM1237254Courtesy of GENERAL MOTORS CORP.
  3. Install the lens by pressing on the corners until the tabs are fully seated.
