Engine Controls Schematics (European Emissions)

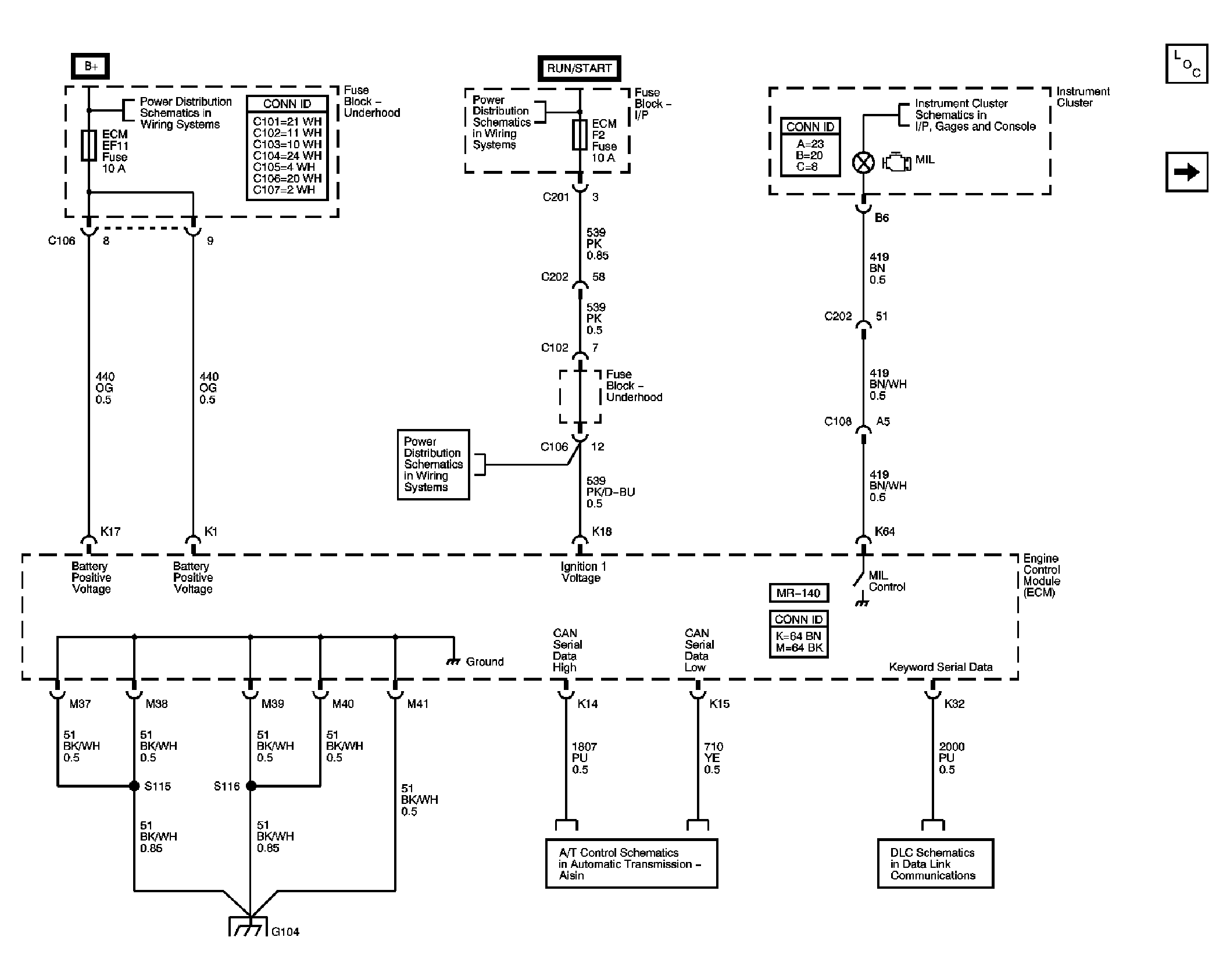

Fig 1: Module Power, Ground, Serial Data, Malfunction Indicator Lamp Schematic (MIL)

Courtesy of GENERAL MOTORS CORP.

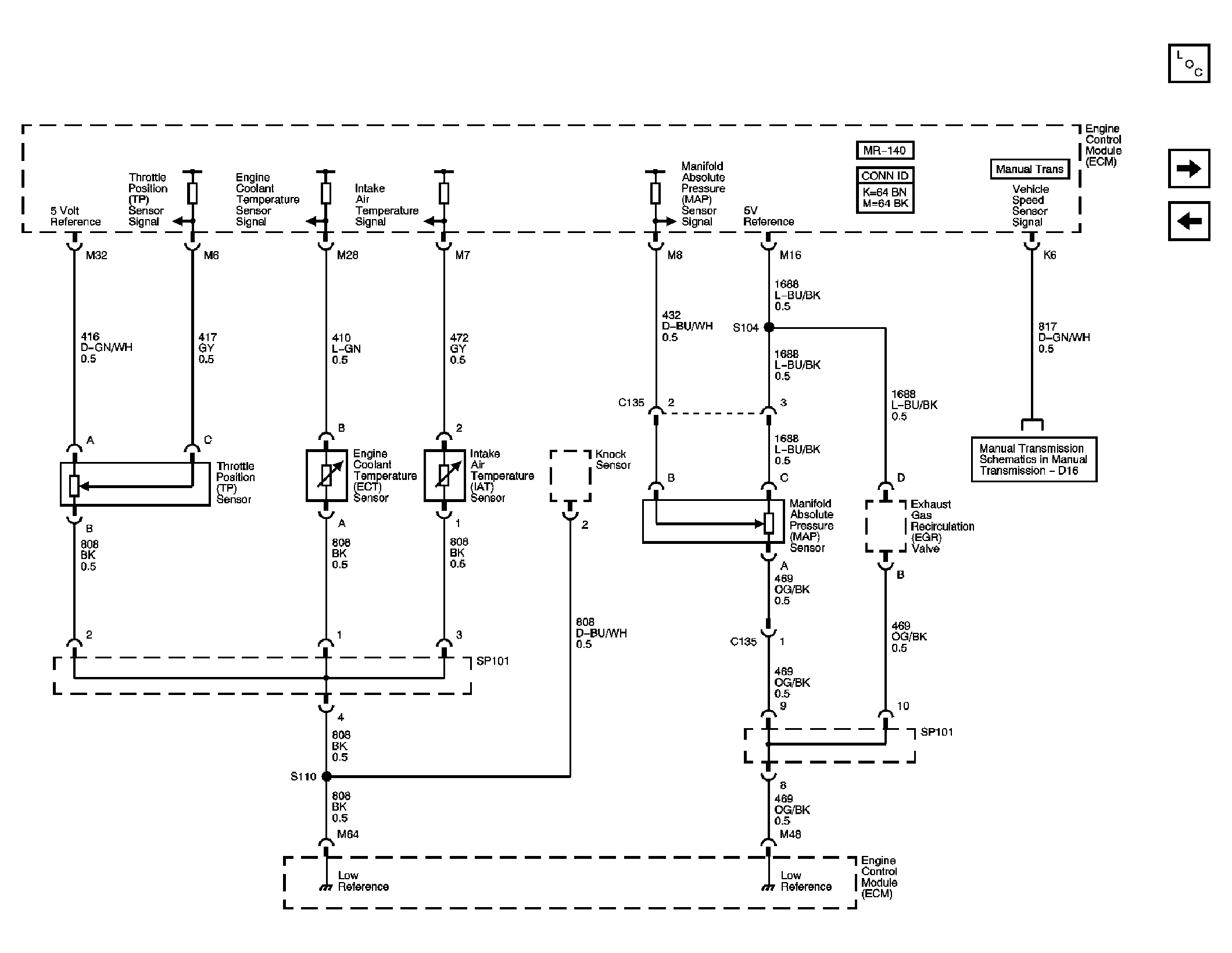

Fig 2: Engine Data Sensors Schematic - Pressure And Temperature

Courtesy of GENERAL MOTORS CORP.

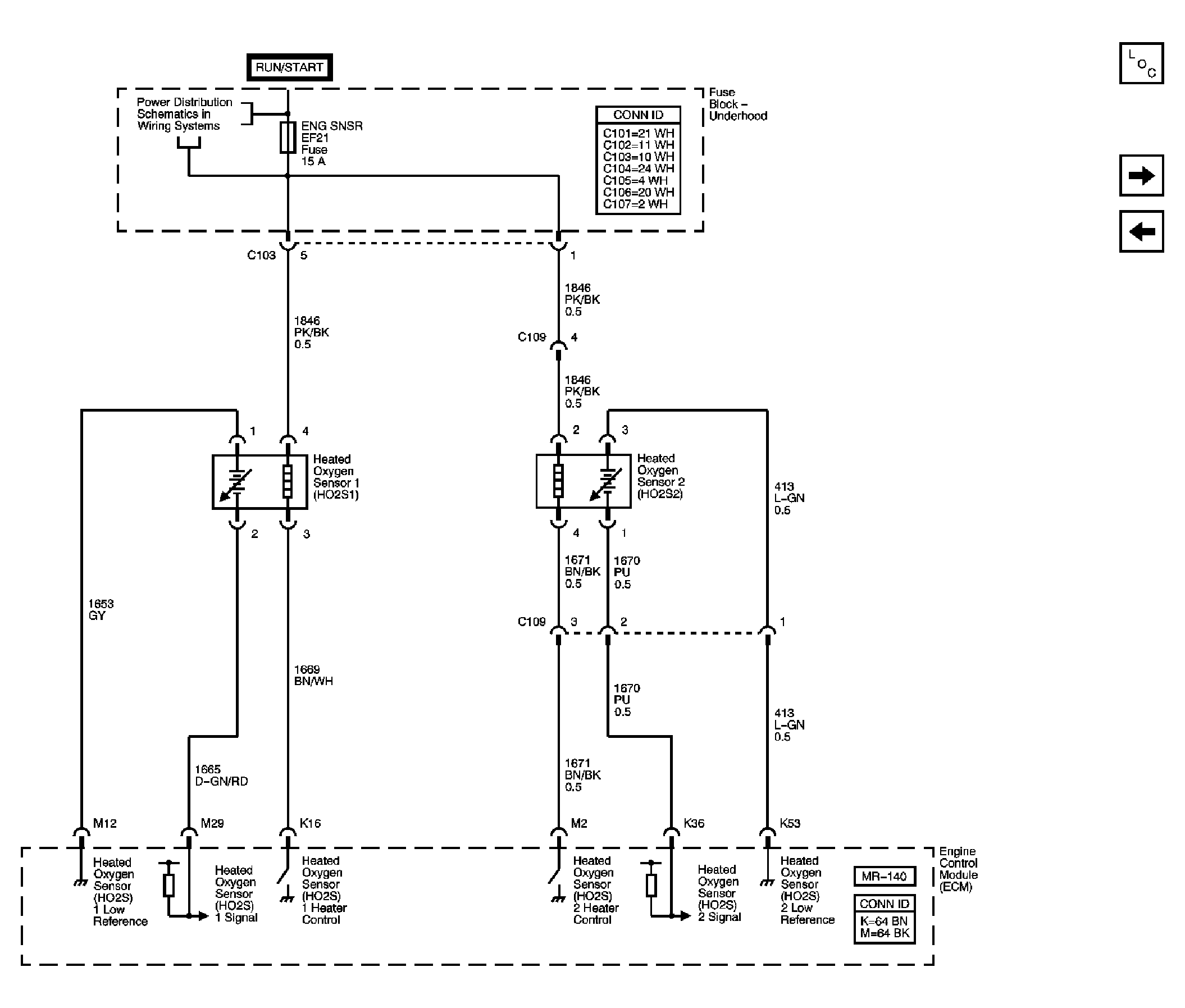

Fig 3: Engine Data Sensors Schematic - Oxygen Sensors (O2S)

Courtesy of GENERAL MOTORS CORP.

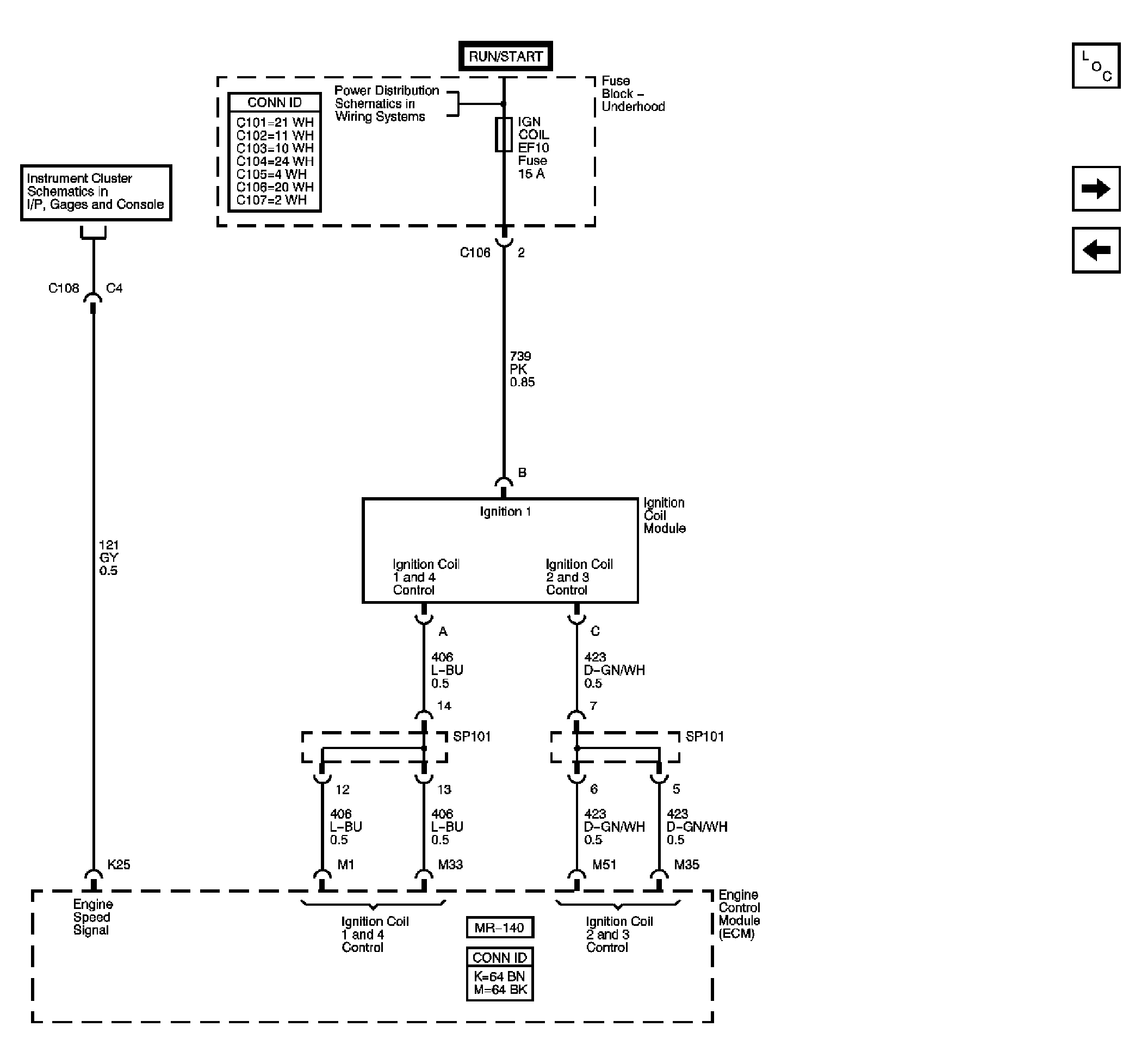

Fig 4: Ignition Controls Schematic - Ignition System

Courtesy of GENERAL MOTORS CORP.

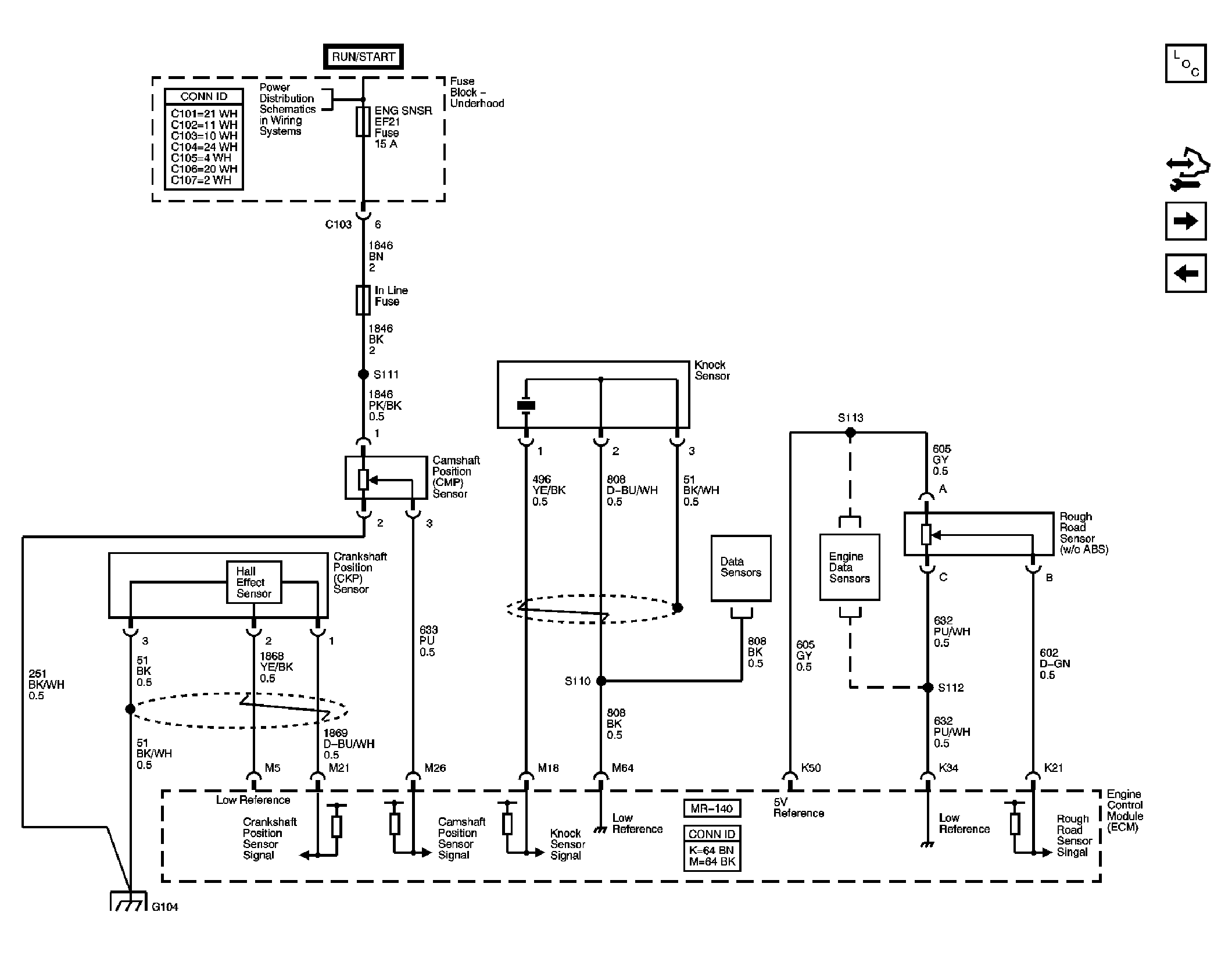

Fig 5: Ignition Controls Schematic - Sensors

Courtesy of GENERAL MOTORS CORP.

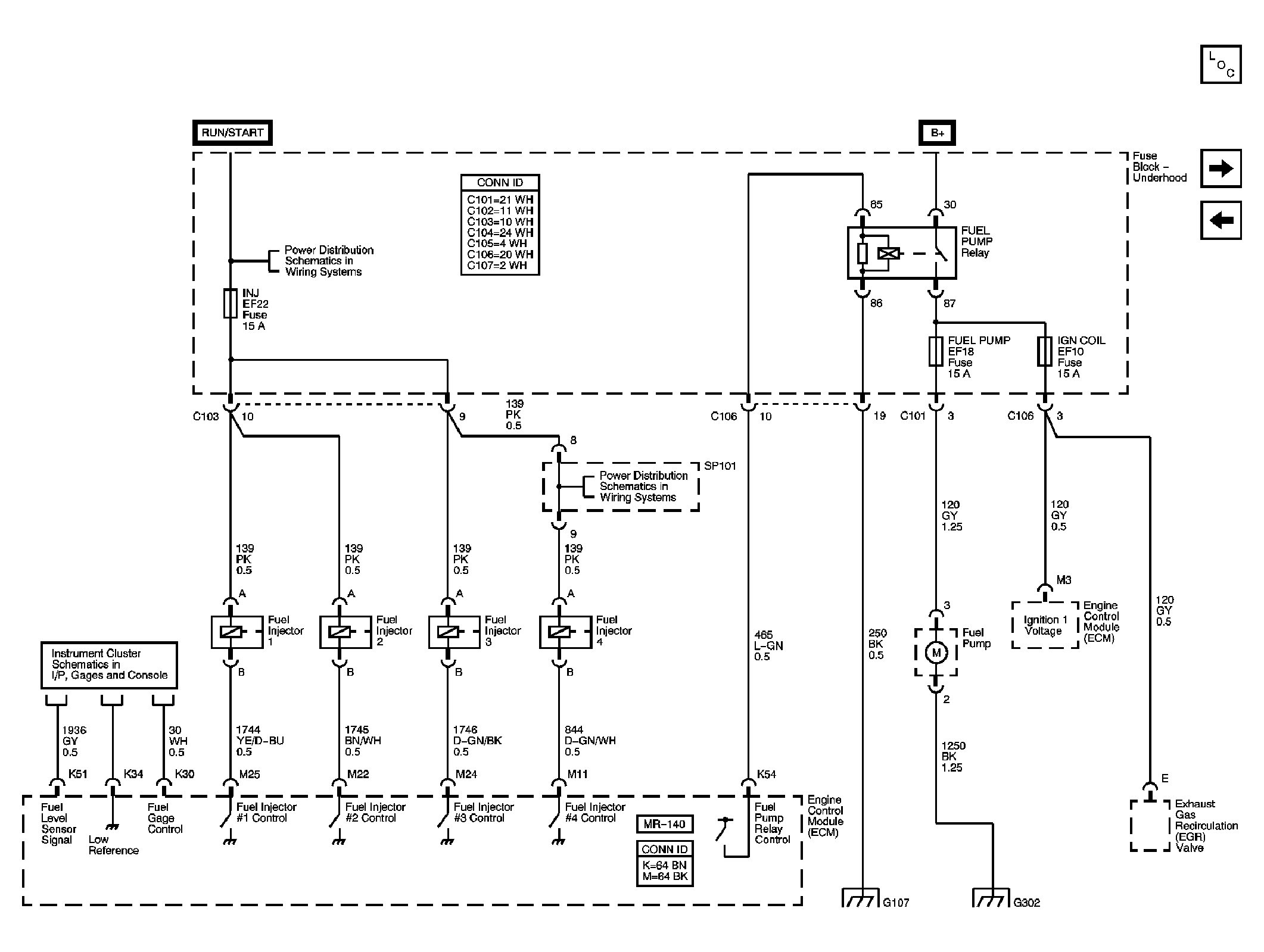

Fig 6: Fuel Controls Schematic - Fuel Pump Controls And Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

Fig 7: Fuel Controls Schematic - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

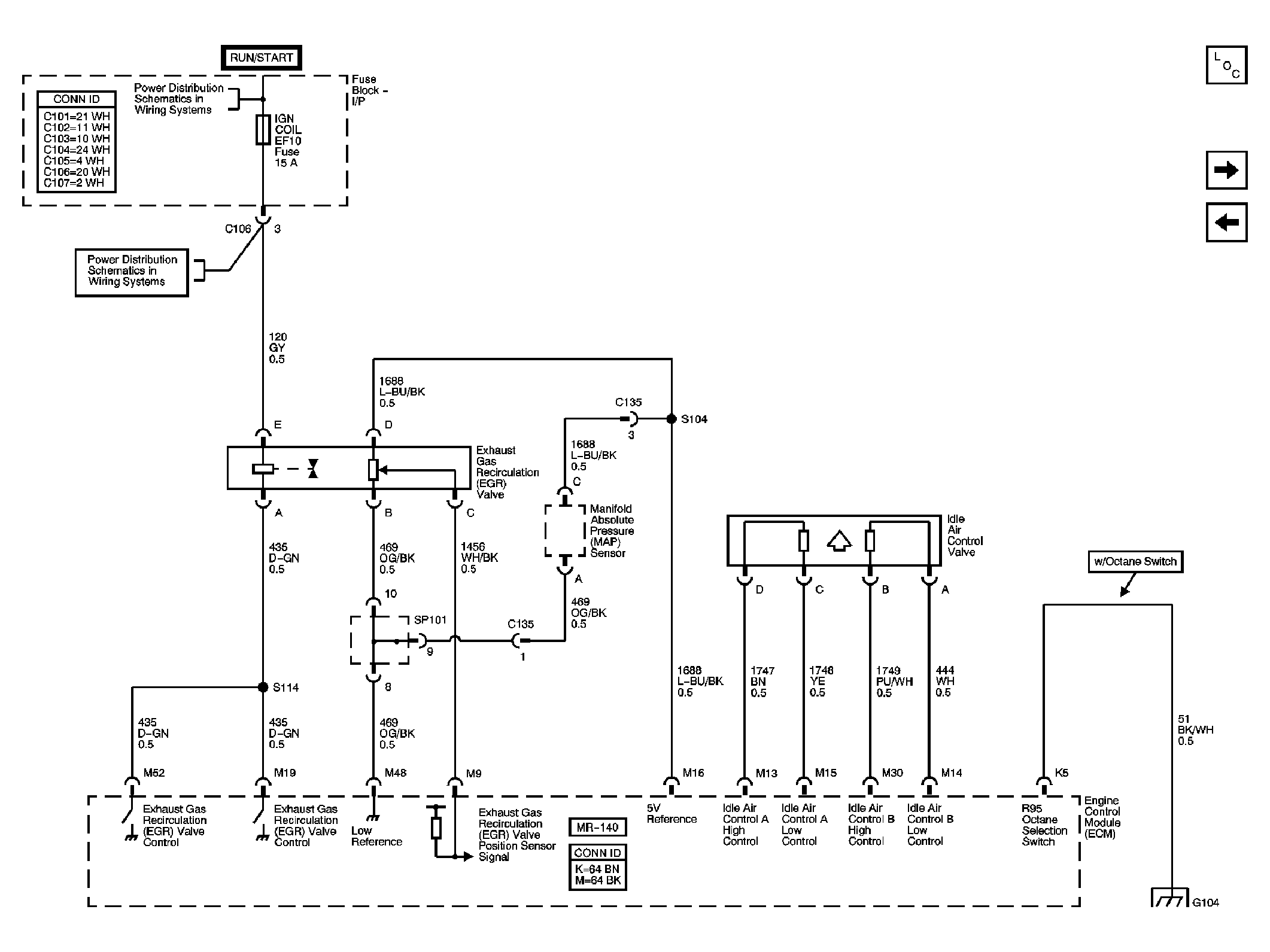

Fig 8: Device Controls Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 9: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
