Seat Belt Retractor Replacement - Front
Seat Belt Retractor Replacement - Front

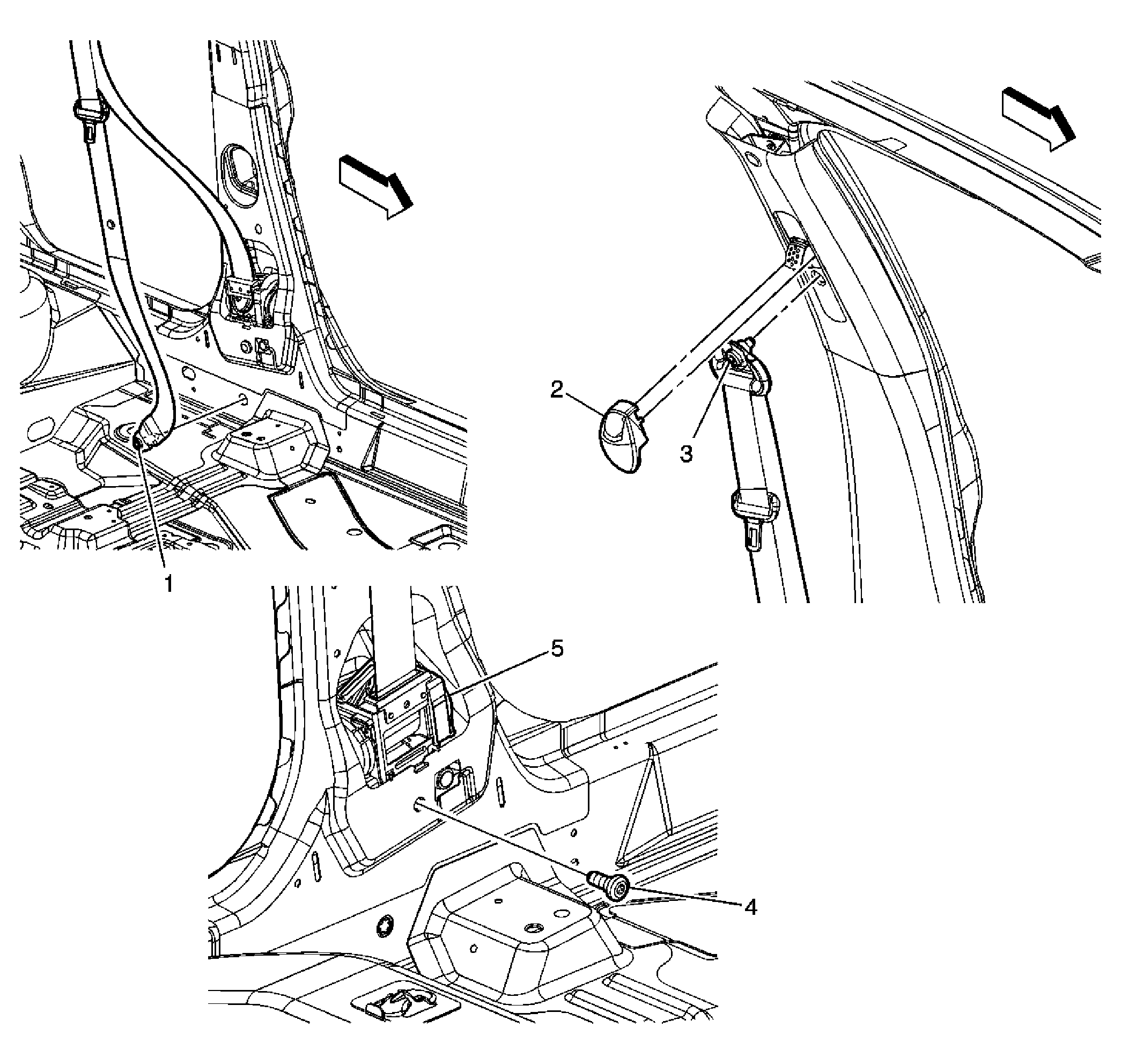

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Disable the SIR in Zones 2 or 6. Refer to SIR Disabling and Enabling Zone 2
or SIR Disabling and Enabling Zone 6
in SIR. |
|
| 1 | Bolt, Seat Belt Anchor Tighten: 45 N.m (33 lb ft) Tip: Move the seat to the full forward position to gain access to the bolt. |
| 2 | Cover, Seat Belt Adjuster |
| 3 | Bolt, Seat Belt Adjuster Tighten: 45 N.m (33 lb ft) |
| 4 | Bolt, Seat Belt Retractor Tighten: 45 N.m (33 lb ft) Tip: Remove the center pillar lower garnish molding to gain access to the bolt. Refer to Garnish Molding Replacement - Center Pillar Lower in Interior Trim. |
| 5 | Retractor Assembly, Front Seat Belt |
