Fuse Block - Underhood Bottom View

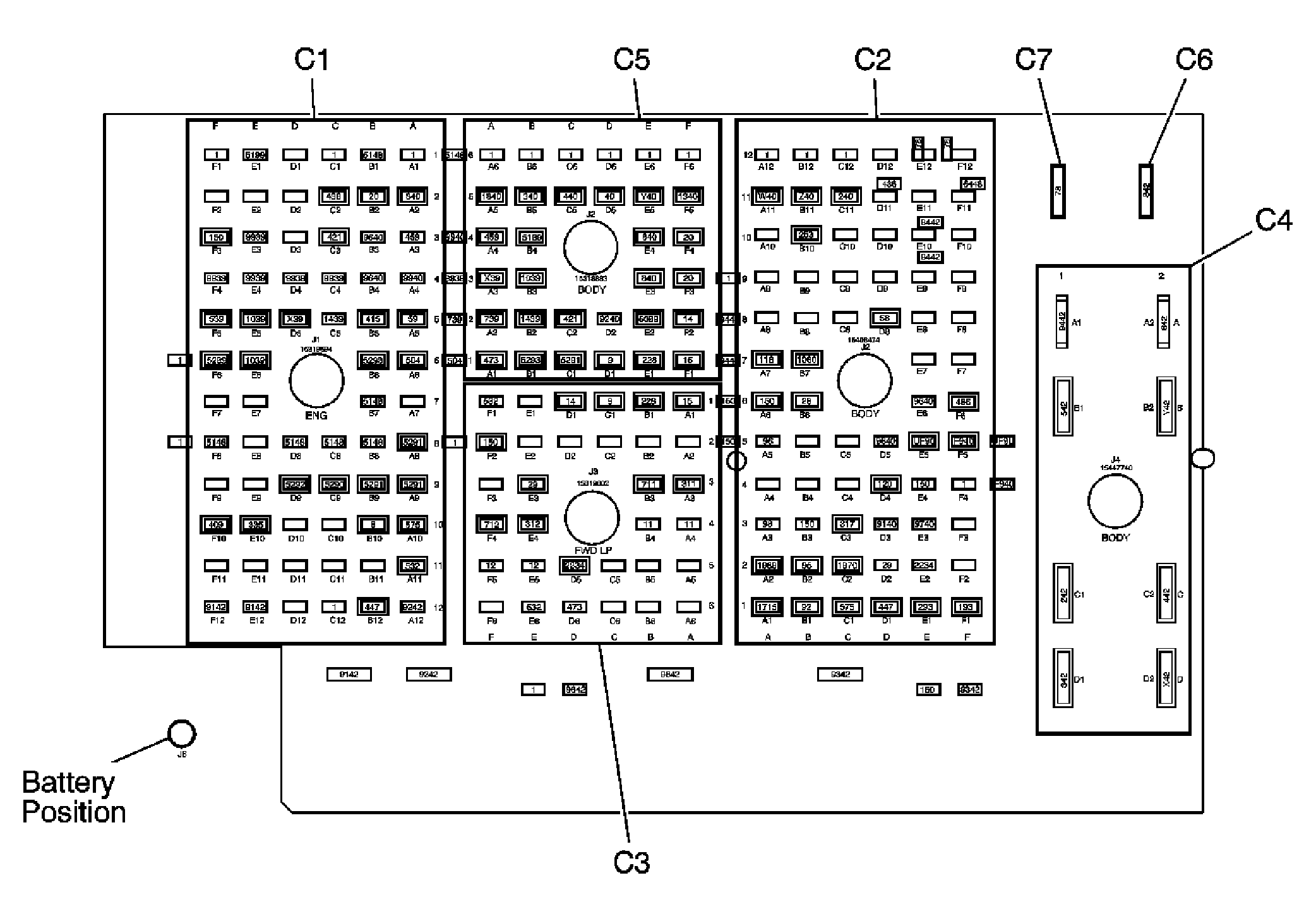

Fig 1: Underhood Fuse Block (Bottom View)
GM1580181Courtesy of GENERAL MOTORS CORP.
Fuse Block - Underhood C1

GM647951Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15319896
  • Service: See Catalog
  • 68-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A1 - - Not Used
A2 RD/WH 840 Battery Positive Voltage (L61)
A3-A4 - - Not Used
A5 D-GN 59 A/C Compressor Clutch Supply Voltage (C67)
A6 WH 504 Cooling Fan Motor Low Reference (LSJ)
A7 - - Not Used
A8 PK/BK 5291 Engine Main Relay Fused Control (2)
PK/BK 5291 Engine Main Relay Fused Control (2)
A9 PK/WH 5291 Engine Main Relay Fused Control (2)
A10 YE 575 Starter Enable Relay Contact Control (L61)
A11 GY 532 Cooling Fan Motor Supply Voltage (2)
A12 - - Not Used
B1 - - Not Used
B2 L-BU 20 Stop Lamp Supply Voltage (L61)
B3-B4 - - Not Used
B5 BK 2022 Coolant Pump Control (LSJ)
B6 PK 5293 Engine Main Relay Fused Control (4) (L61)
B7-B8 - - Not Used
B9 PK/BK 5291 Engine Main Relay Fused Control (2)
B10 PU 6 Starter Solenoid Crank Voltage
B11-B12 - - Not Used
C1-C5 - - Not Used
C6-C7 - - Not Available
C8-C12 - - Not Used
D1-D5 - - Not Used
D6-D7 - - Not Available
D8 - - Not Used
D9 PK/WH 5292 Engine Main Relay Fused Control (3)
PK/WH 5292 Engine Main Relay Fused Control (3)
D10-D12 - - Not Used
E1-E4 - - Not Used
E5 PK 1039 Run/Crank Ignition 1 Voltage (L61)
PK 1039 Run/Crank Ignition 1 Voltage (L61)
E6 PK 1039 Run/Crank Ignition 1 Voltage (LSJ)
E7-E9 - - Not Used
E10 D-GN 335 Low Speed Cooling Fan Relay Control
E11-E12 - - Not Used
F1-F2 - - Not Used
F3 BK 150 Ground
F4 - - Not Used
F5 PK 539 Run/Crank Ignition 1 Voltage
PK 539 Run/Crank Ignition 1 Voltage
F6-F9 - - Not Used
F10 L-BU 409 Cooling Fan Motor Supply Voltage (1)
F11-F12 - - Not Used
Fuse Block - Underhood C2

GM1376704Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15405474
  • Service: See Catalog
  • 68-Way F Metri-Pack 280 Series FLXLK (L-GY)
Pin Wire Color Circuit No. Function
A1 L-GN 1715 Windshield Wiper Switch High Signal
A2 TN/WH 1969 Headlamp High Beam Relay Control
A3-A5 - - Not Used
A6 BK 150 Ground
A7 D-GN 113 Windshield Wiper Switch On Signal
A8-A12 - - Not Used
B1 PU 92 Windshield Wiper Motor High Speed Control
B2 D-GN 95 Windshield Wiper Motor Low Speed Control
B3-B5 - - Not Used
B6 TN 28 Horn Relay Control
B7 WH 1080 Park Lamp Relay Control
B8-B9 - - Not Used
B10 BN 253 Trunk Release Relay Control
B11-B12 - - Not Used
C1 D-GN 1433 Clutch Start Switch Signal (M/T)
C1 YE 575 Starter Enable Relay Contact Control (A/T)
C2 PK/WH 1970 Headlamp Low Beam Relay Control
C3 YE 317 Fog Lamp Relay Coil Supply Voltage
C4 - - Not Used
C5-C6 - - Not Available
C7-C10 - - Not Used
C11 RD/WH 240 Battery Positive Voltage
C12 - - Not Used
D1 YE 447 Starter Relay Coil Control (A/T)
D2-D3 - - Not Used
D4 GY 120 Fuel Pump Supply Voltage
D5-D6 - - Not Available
D7 - - Not Used
D8 TN/WH 56 Trunk Release Motor Supply Voltage
D9-D12 - - Not Used
E1 PU 293 Rear Defog Element Supply Voltage
E2-E12 - - Not Used
F1 WH 193 Rear Defog Relay Control
F2-F5 - - Not Used
F6 D-GN/WH 465 Fuel Pump Primary Relay Control
F7-F12 - - Not Used
Fuse Block - Underhood C3

GM647944Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15319892
  • Service: See Catalog
  • 32-Way F Metri-Pack 280 Series (NA)
Pin Wire Color Circuit No. Function
A1 D-BU 15 Right Turn Signal Lamp Supply Voltage
A2 - - Not Used
A3 L-GN/BK 311 Right Headlamp High Beam Supply Voltage
A4-A6 - - Not Used
B1 OG 228 Windshield Washer Pump Control
B2 - - Not Used
B3 D-GN/WH 711 Left Headlamp High Beam Supply Voltage
B4-B6 - - Not Used
C1 BN 9 Park Lamp Supply Voltage
BN 9 Park Lamp Supply Voltage
C2 - - Not Used
C3-C4 - - Not Available
C5-C6 - - Not Used
D1 L-BU 14 Left Turn Signal Lamp Supply Voltage
D2 - - Not Used
D3-D4 - - Not Available
D5 PU 2234 Front Fog Lamp Supply Voltage
PU 2234 Front Fog Lamp Supply Voltage
D6 - - Not Used
E1-E2 - - Not Used
E3 D-GN 29 Horn Control
E4 TN/WH 312 Right Headlamp Low Beam Supply Voltage
E5-E6 - - Not Used
F1 - - Not Used
F2 BK 150 Ground
F3 - - Not Used
F4 YE 712 Left Headlamp Low Beam Supply Voltage
F5-F6 - - Not Used
Fuse Block - Underhood C4

GM1243665Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15447740
  • Service: See Catalog
  • 8-Way F Metri-Pack 800 Series (L-GY)
Pin Wire Color Circuit No. Function
A1-A2 - - Not Used
B1 RD/BK 542 Battery Positive Voltage
B2 - - Not Used
C1 RD/WH 242 Battery Positive Voltage
C2 RD/BK 442 Battery Positive Voltage
D1-D2 - - Not Used
Fuse Block - Underhood C5

GM647947Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15319893
  • Service: See Catalog
  • 32-Way F Metri-Pack 280 Series (GY)
Pin Wire Color Circuit No. Function
A1 D-BU 473 High Speed Cooling Fan Relay Control
A2 PK 739 Run/Crank Ignition 1 Voltage
A3 - - Not Used
A4 D-GN/WH 459 A/C Compressor Clutch Relay Control
A5 RD/WH 1840 Battery Positive Voltage
A6 - - Not Used
B1 PK/BK 5293 Engine Main Relay Fused Control (4) (Coupe)
B2 PK 1439 Run/Crank Ignition 1 Voltage
B3 PK/BK 1039 Run/Crank Ignition 1 Voltage
B4 YE 5199 Run/Crank Relay Coil Control
B5 RD/WH 340 Battery Positive Voltage
B6 - - Not Used
C1 PK/BK 5291 Engine Main Relay Fused Control (2)
C2 PU 421 Air Injection Reaction Solenoid Relay Coil Control (L61)
C2 PK 2014 Coolant Pump Relay Coil Control (LSJ)
C3-C4 - - Not Available
C5 RD/WH 440 Battery Positive Voltage
C6 - - Not Used
D1 BN 9 Park Lamp Supply Voltage
D2 - - Not Used
D3-D4 - - Not Available
D5 RD/WH 40 Battery Positive Voltage
RD/WH 40 Battery Positive Voltage
D6 - - Not Used
E1 OG 228 Windshield Washer Pump Control
E2 BN 5069 Engine Main Relay Coil Control
E3 RD/WH 840 Battery Positive Voltage
E4 RD/WH 840 Battery Positive Voltage
E5-E6 - - Not Used
F1 D-BU 15 Right Turn Signal Lamp Supply Voltage
F2 L-BU 14 Left Turn Signal Lamp Supply Voltage
F3 L-BU 20 Stop Lamp Supply Voltage
L-BU 20 Stop Lamp Supply Voltage
F4 L-BU 20 Stop Lamp Supply Voltage
L-BU 20 Stop Lamp Supply Voltage
F5 RD/WH 1340 Battery Positive Voltage
RD/WH 1340 Battery Positive Voltage
F6 - - Not Used
Fuse Block - Underhood C6

GM888055Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15303503
  • Service: See Catalog
  • 1-Way F Metri-Pack 800 Series (L-GY)
Pin Wire Color Circuit No. Function
A RD/BK 642 Battery Positive Voltage
